Thanos GB Zero build

[tronicgr]

This my take on Gameboy Zero, using a handheld security monitor for display.

Here is a tease video clip:
https://youtu.be/H1bBOTAdsVM

Testing the HDMI:
https://youtu.be/QwgHRFotE80
The screen can be turned off while playing on HDMI output to save battery.

Testing controls and games on GB Zero:
https://youtu.be/aK4KACBcUGk

Another testing video (better quality):
https://www.youtube.com/watch?v=zJlBMfedyMM

The parts I used are:
-3.5" TFT LED Portable Test Monitor CCTV Camera Security Audio Video Tester J5J8
http://www.ebay.com/itm/291709734092?_t ... EBIDX%3AIT
-Raspberry Zero
-Adafruit MAX98357 I2S Class-D Mono Amp
https://www.adafruit.com/product/3006
-Teensy
-Gameboy DMG-01 4 button PCB DIY Pi Zero
http://www.ebay.com/itm/Gameboy-DMG-01- ... 974209588?
-Mini Micro USB Male to USB Female OTG Adapter Converter
http://www.ebay.com/itm/291703312146?_t ... EBIDX%3AIT
-2 In 1 OTG 3 Port Mini 480 Mbps USB Power LED HUB For PC Laptop Notebook 5V/1A
http://www.ebay.com/itm/182050766693?_t ... EBIDX%3AIT
-Mini Metal Speaker w/ Wires - 8 ohm 0.5W
https://www.adafruit.com/product/1890
-Lithium Ion Battery Pack - 3.7V 4400mAh
https://www.adafruit.com/products/354

If I forgot any part, ask me to add it please.


Thanks
Thanos

[tronicgr]

Here are some photos of my build progress:

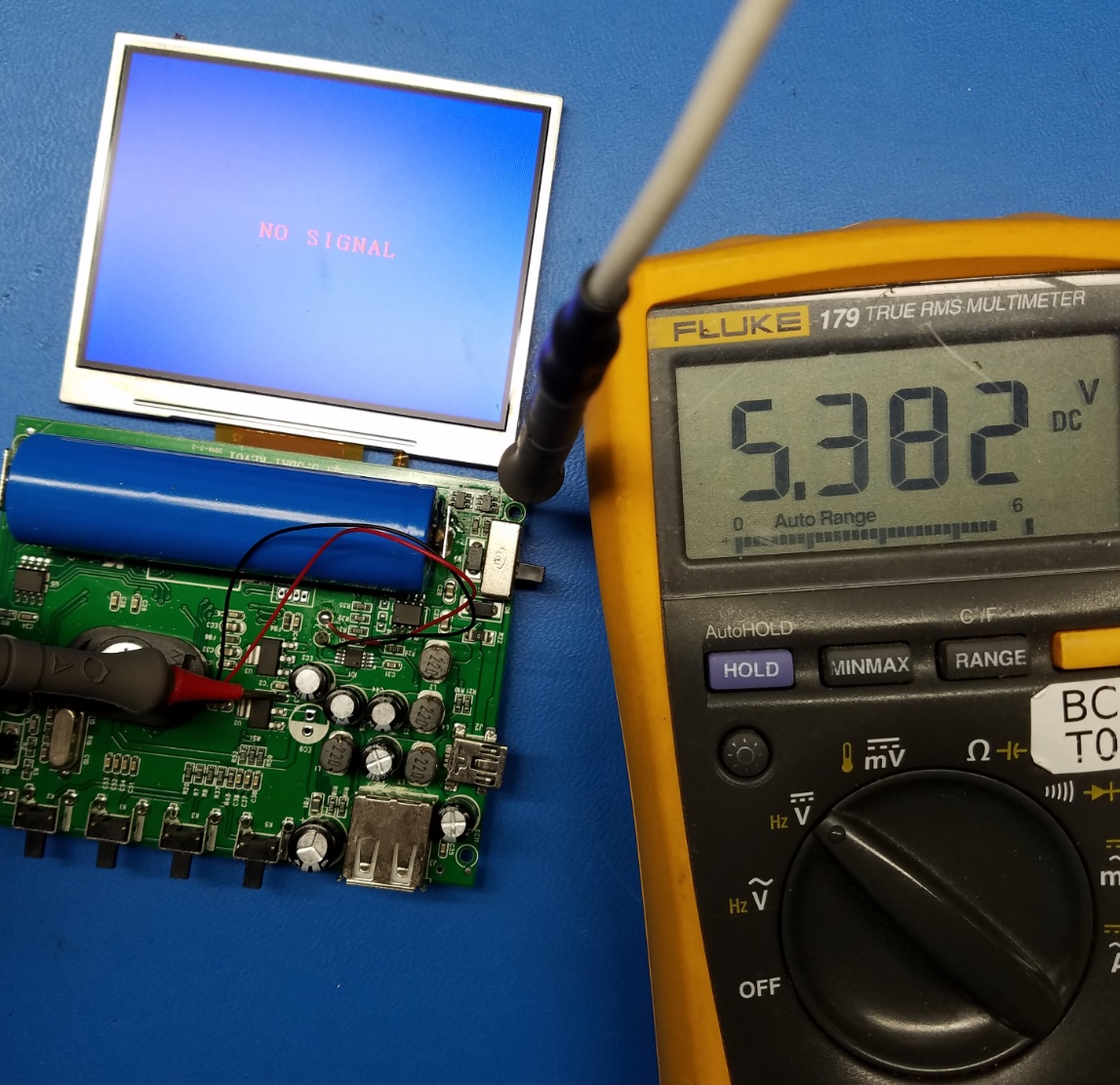

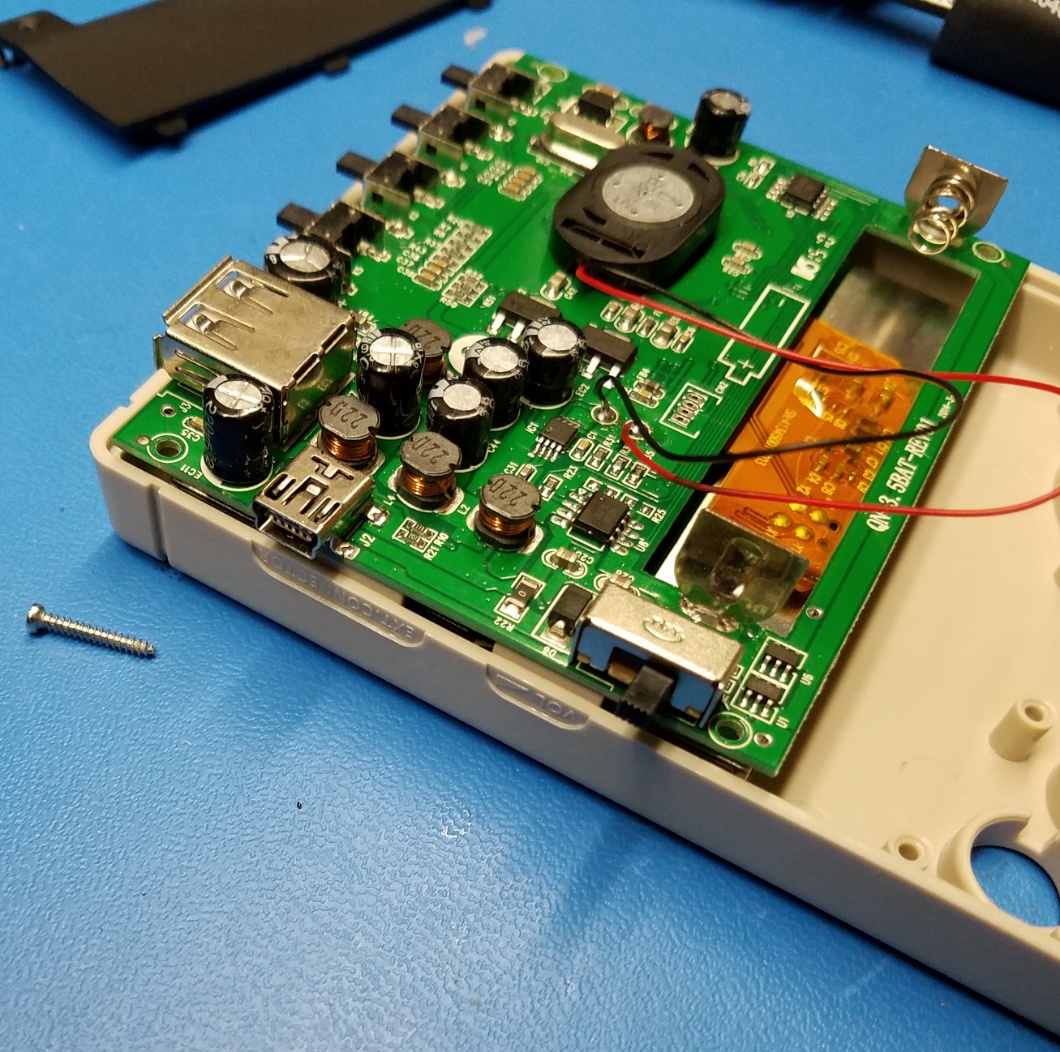

5v from security monitor

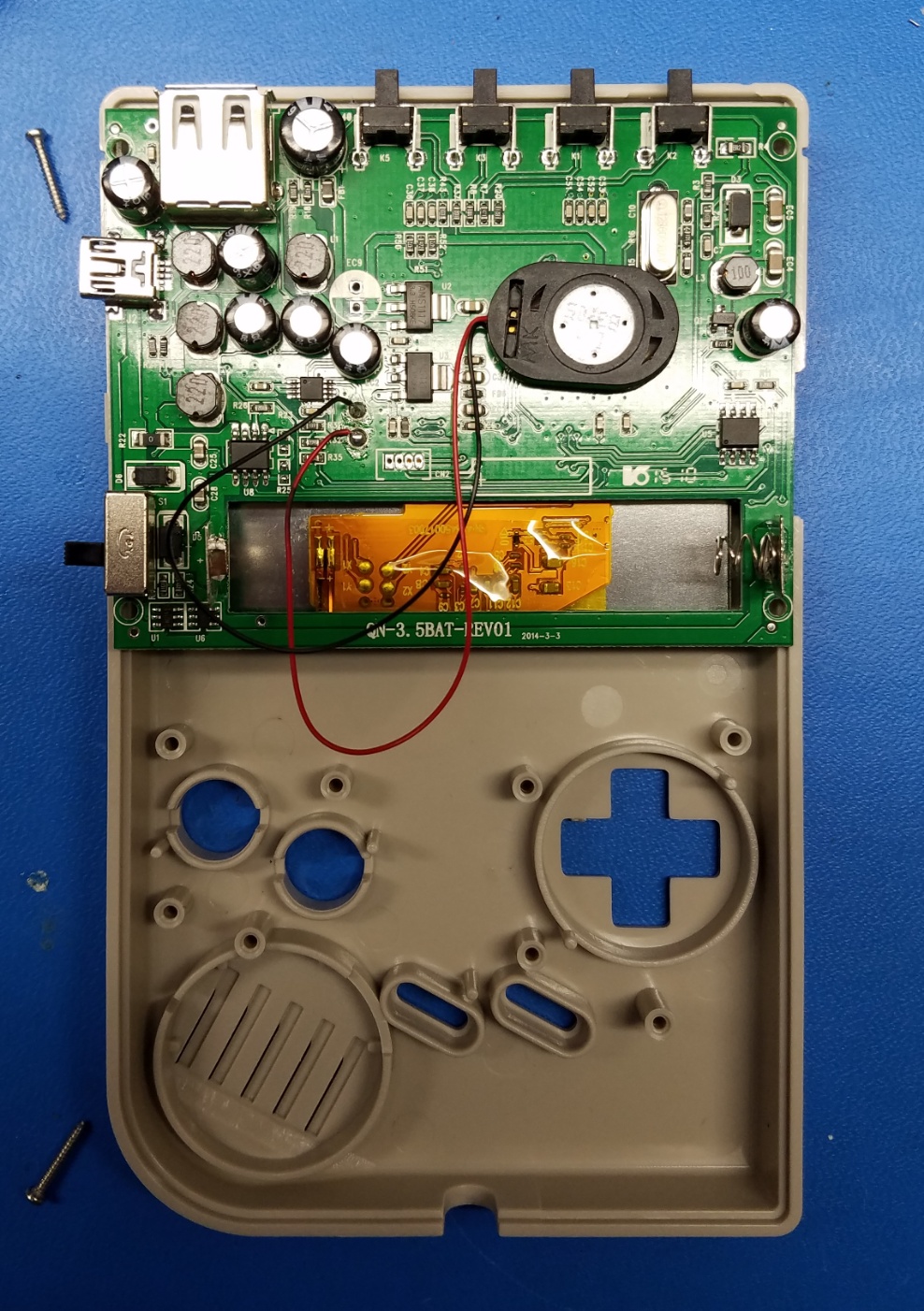

How screen pcb fits


How screen pcb fits 2

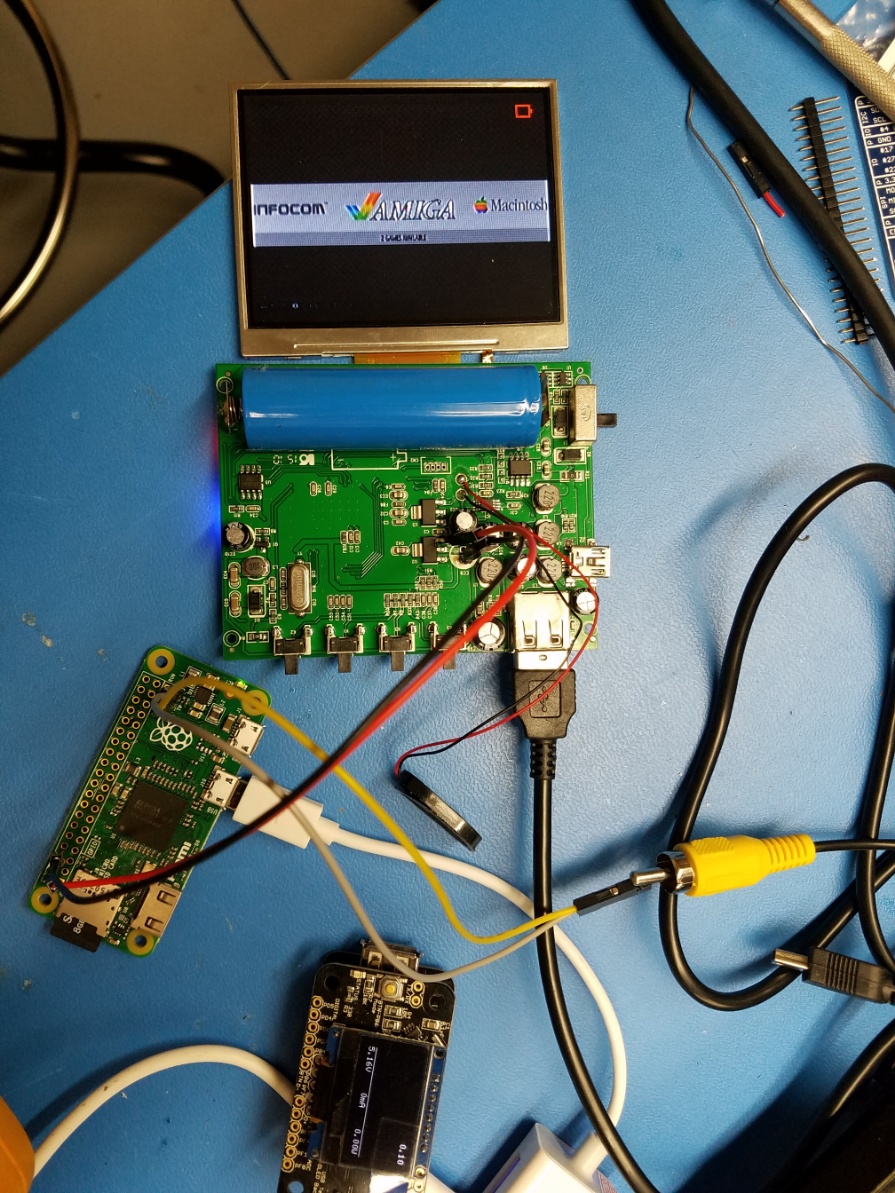

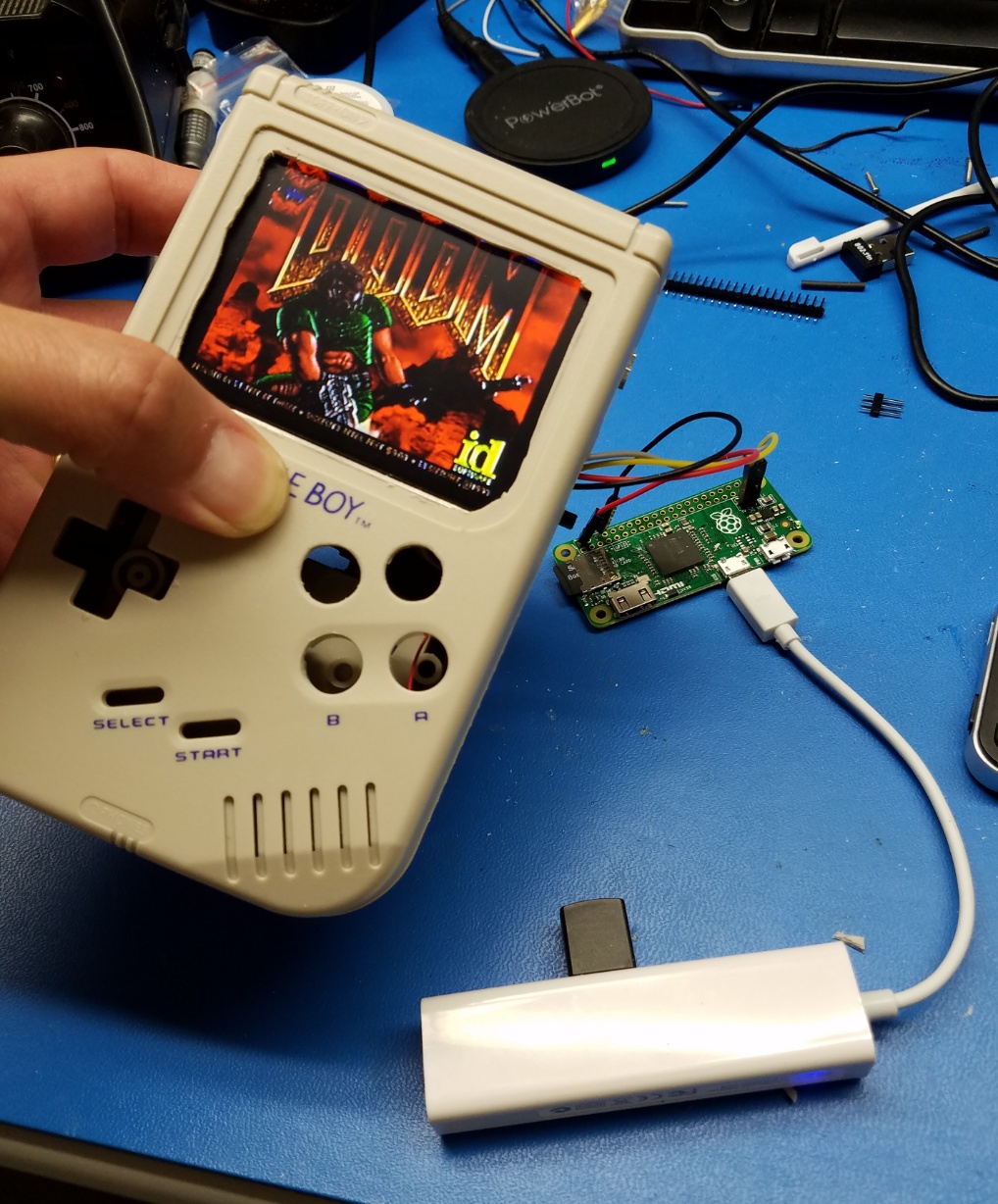

Test screen external first


Test screen almost fitted in case

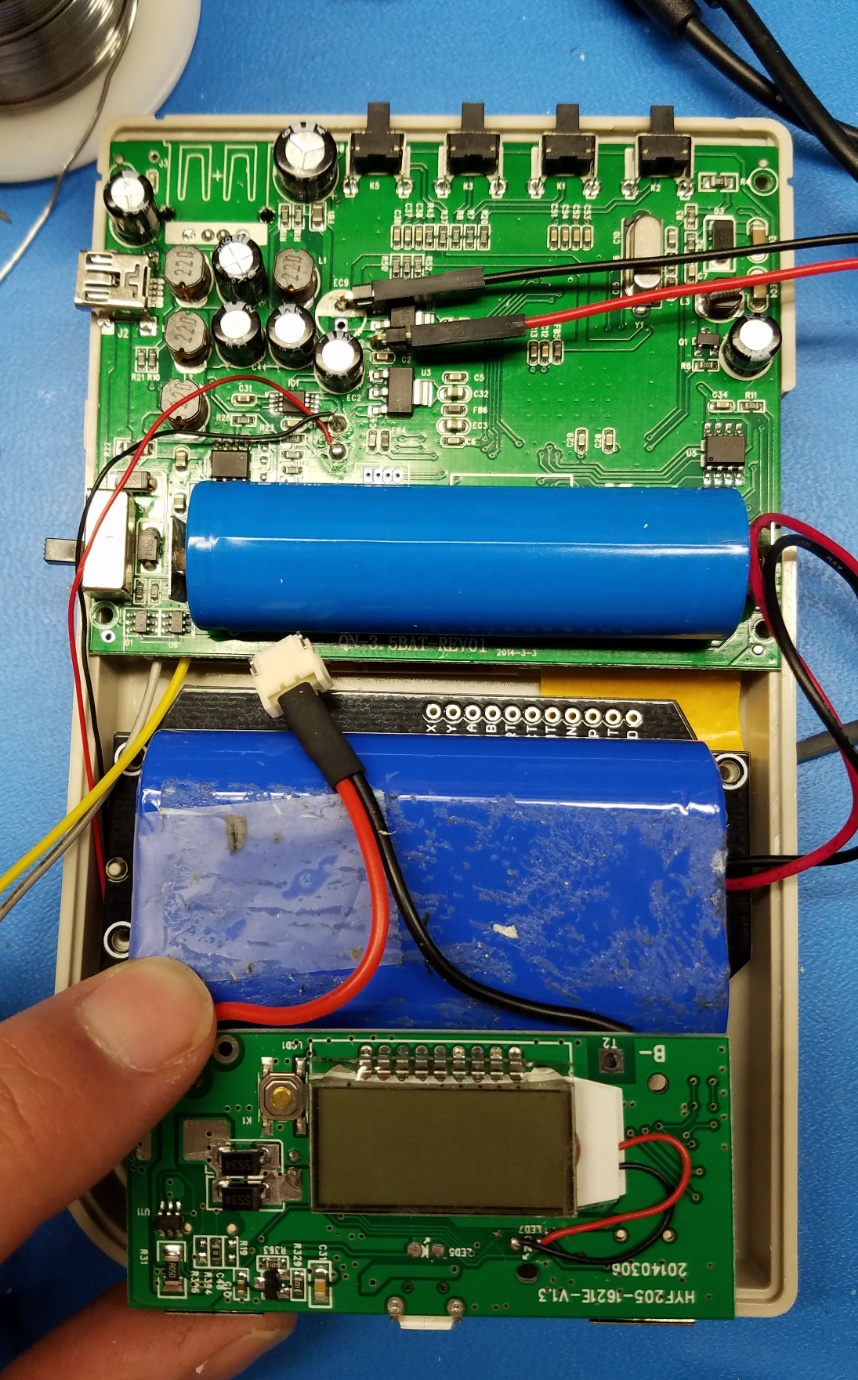

Checking for place to fit the 4400mA battery

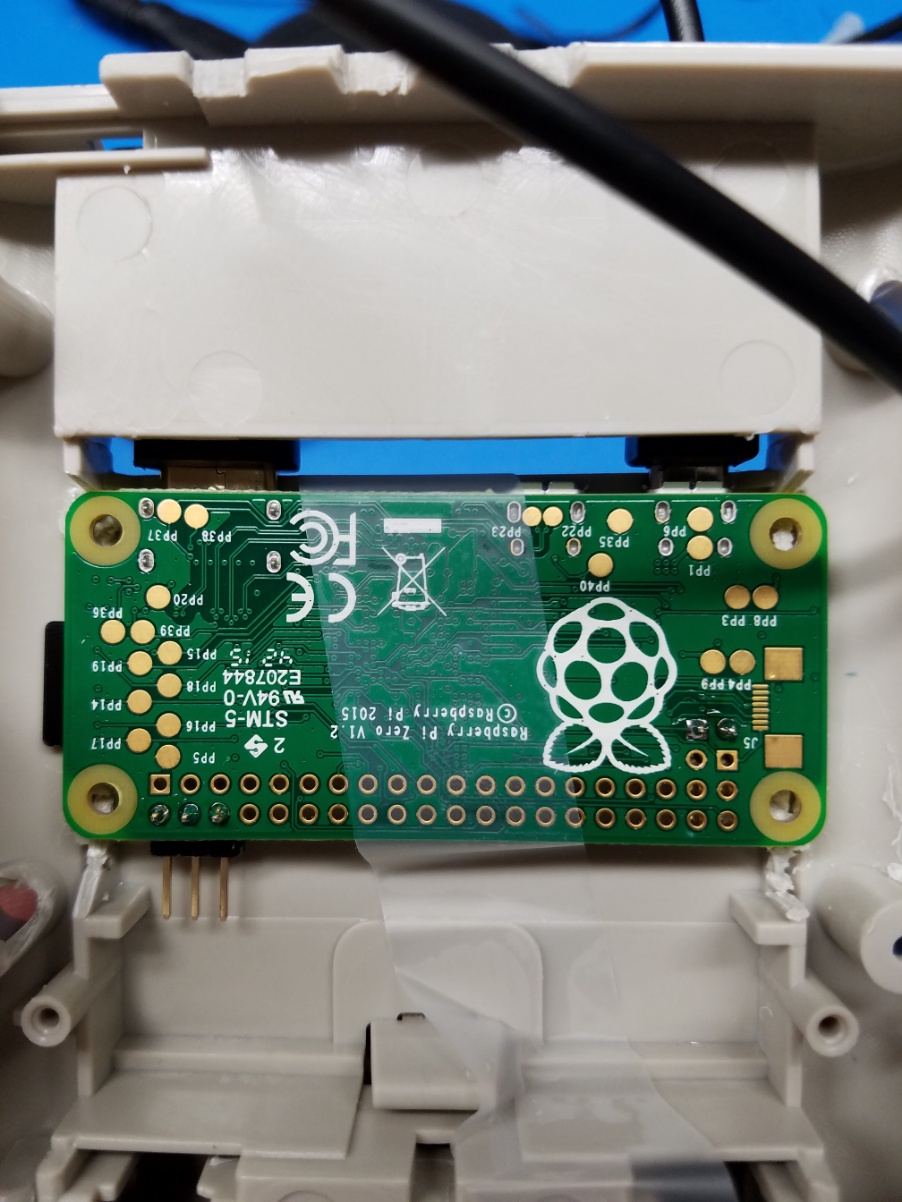

Placement of raspberry zero in the cart opening

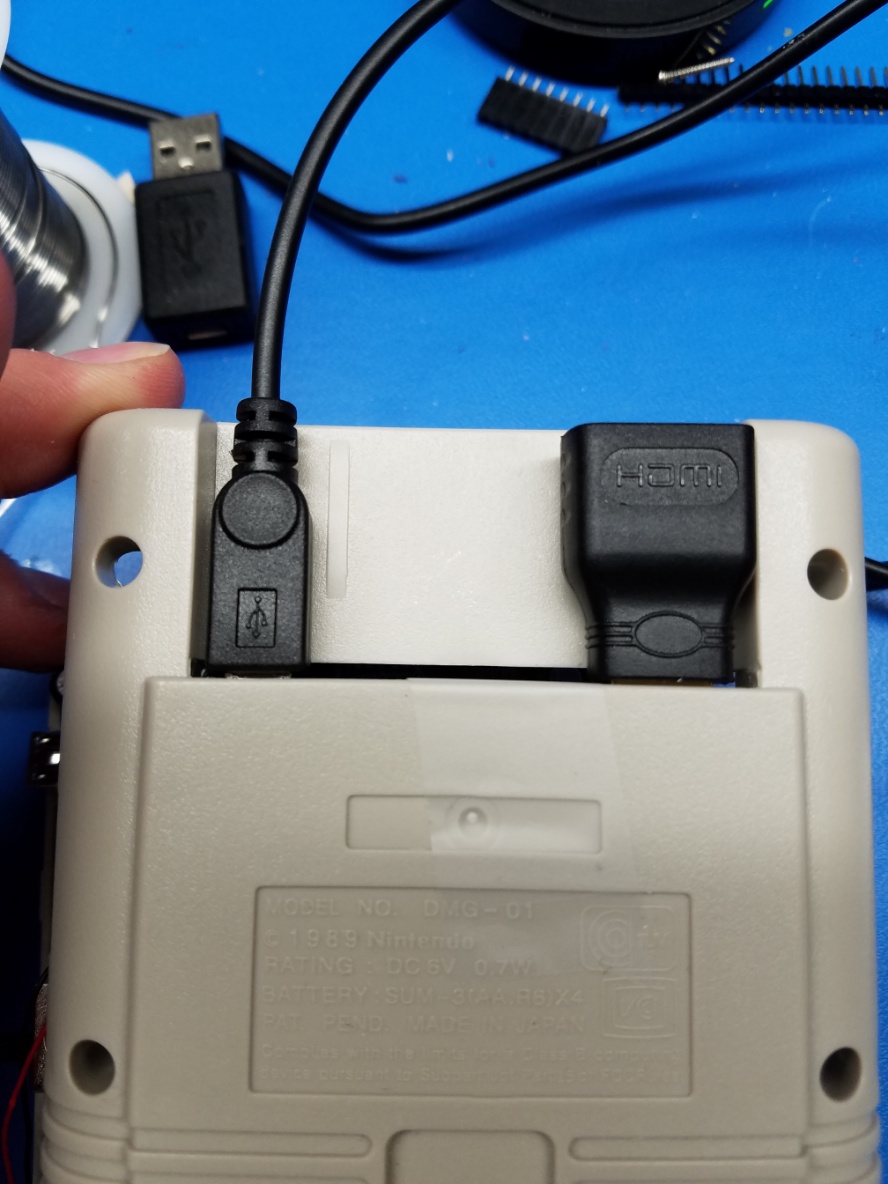

Access to USB power and HDMI for the RPI zero

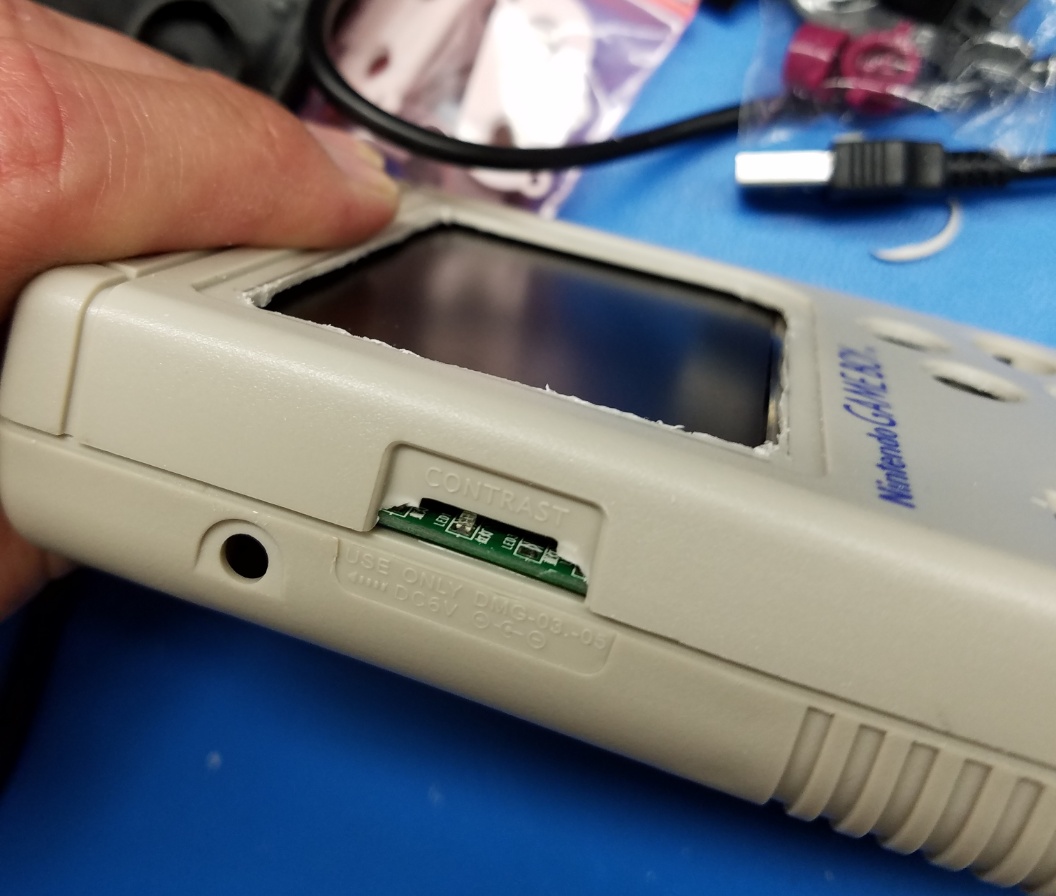

Placement of screen controls

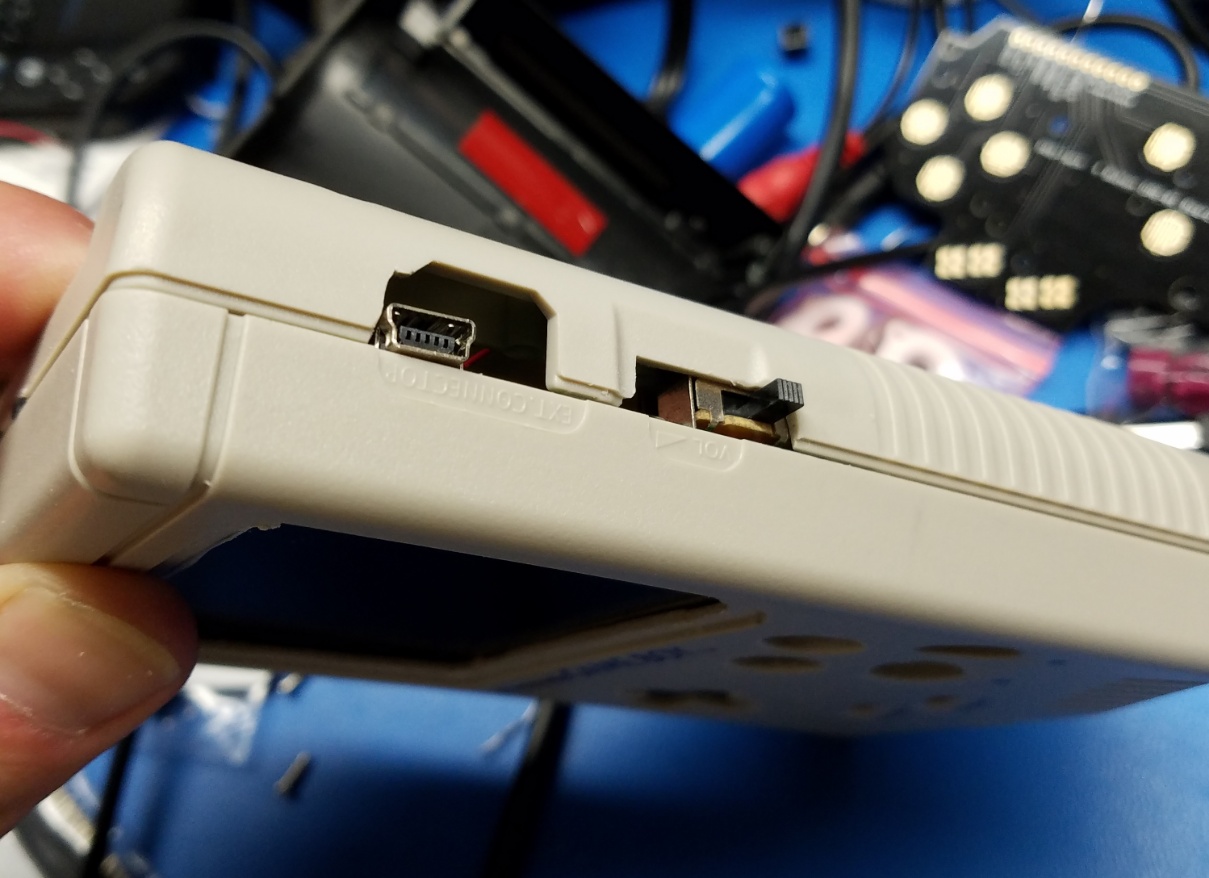

Usb charging port and power switch


[tronicgr]

Building continued:

Power on Led and charging indication Led


I used the Adafruit I2S amplifier to avoid having any noise from the screen. I connected it like in the adafruit guide:
https://learn.adafruit.com/adafruit-max ... y-pi-usage

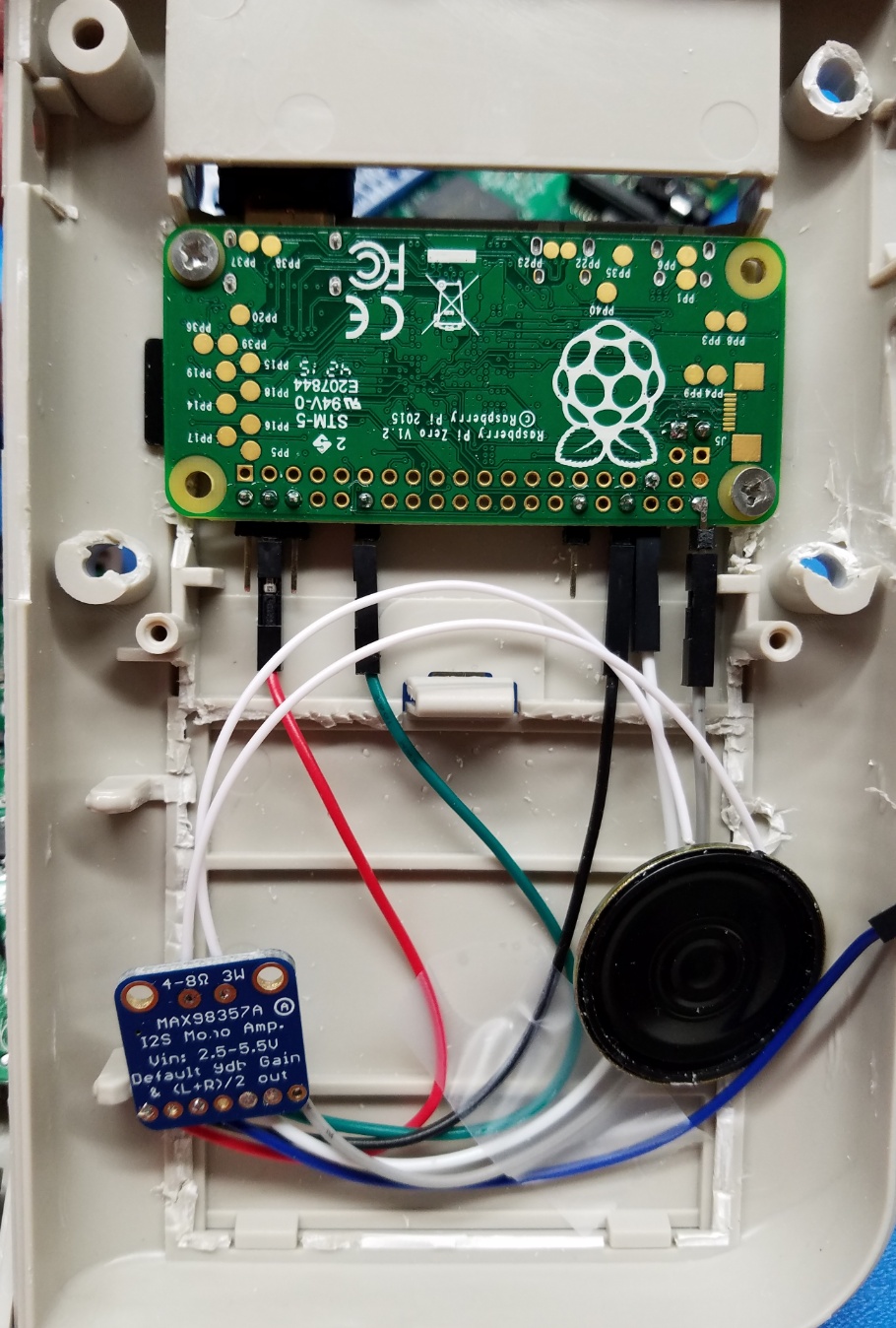

Connection of I2S amplifier on RPI zero

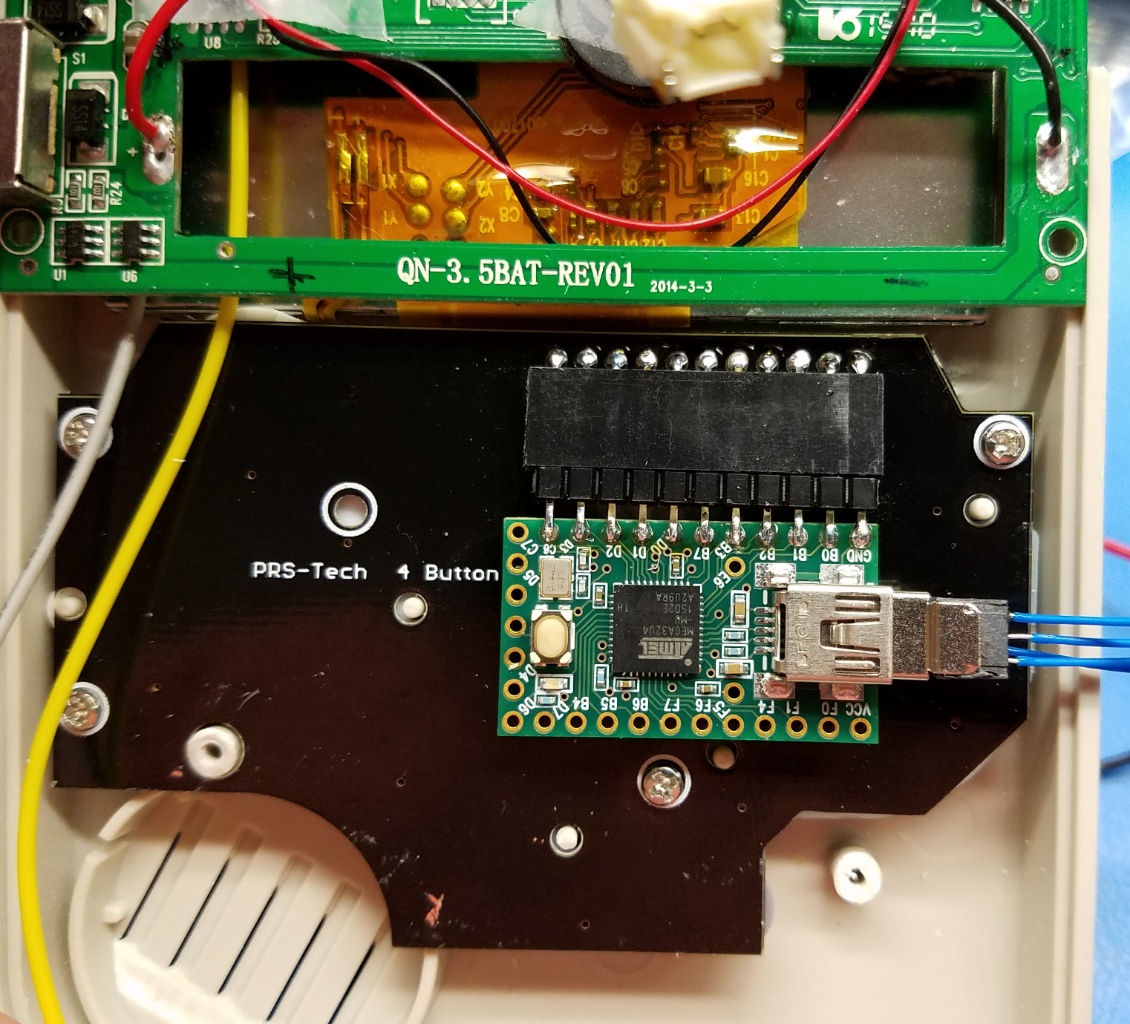

Attaching Teensy on the buttons board

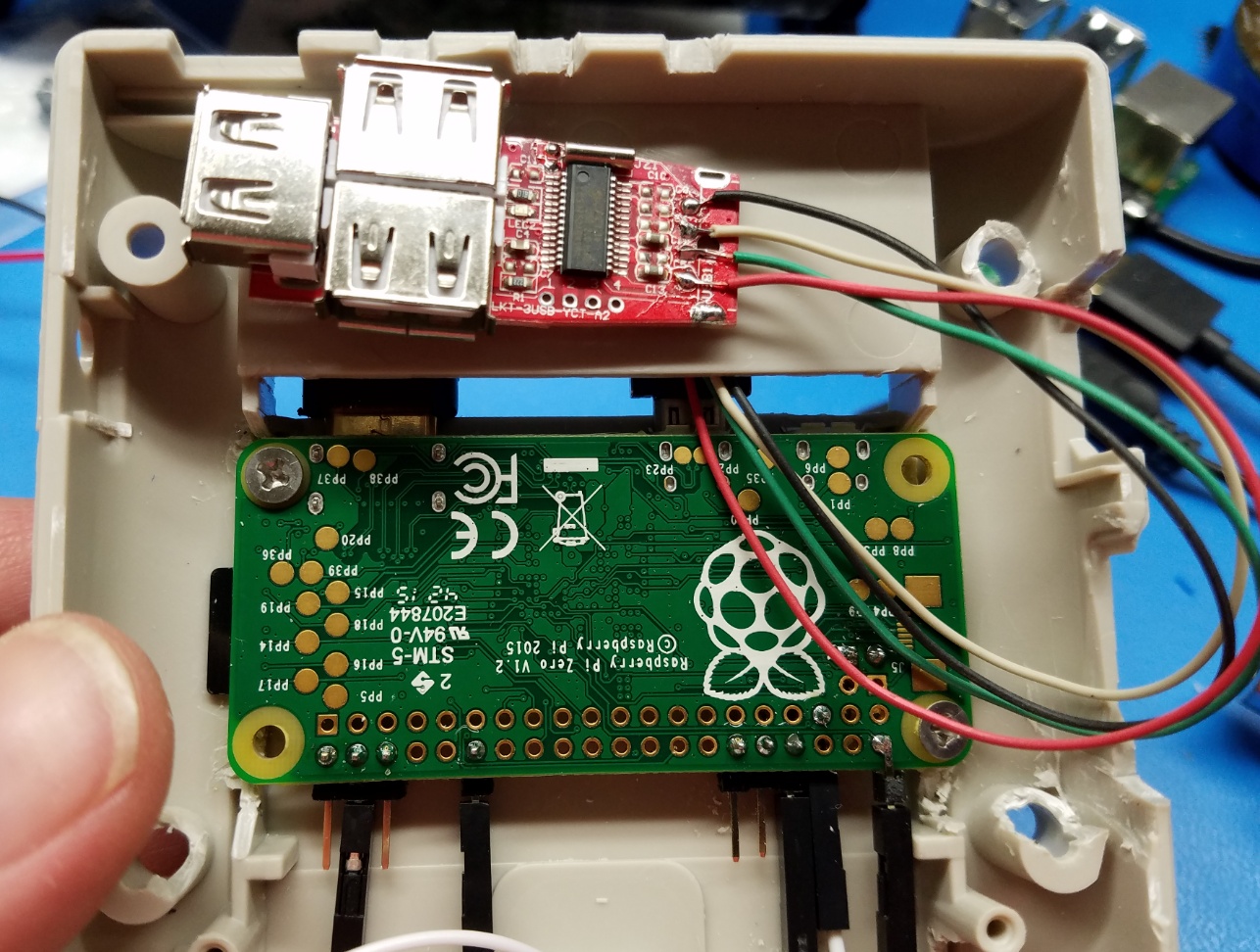

Adding USB hub with modified connector (connections are wrong as shown on this photo, were corrected later)


Testing Teensy to the USB hub with modified USB to the PC


All connections of Teensy complete on GBZ

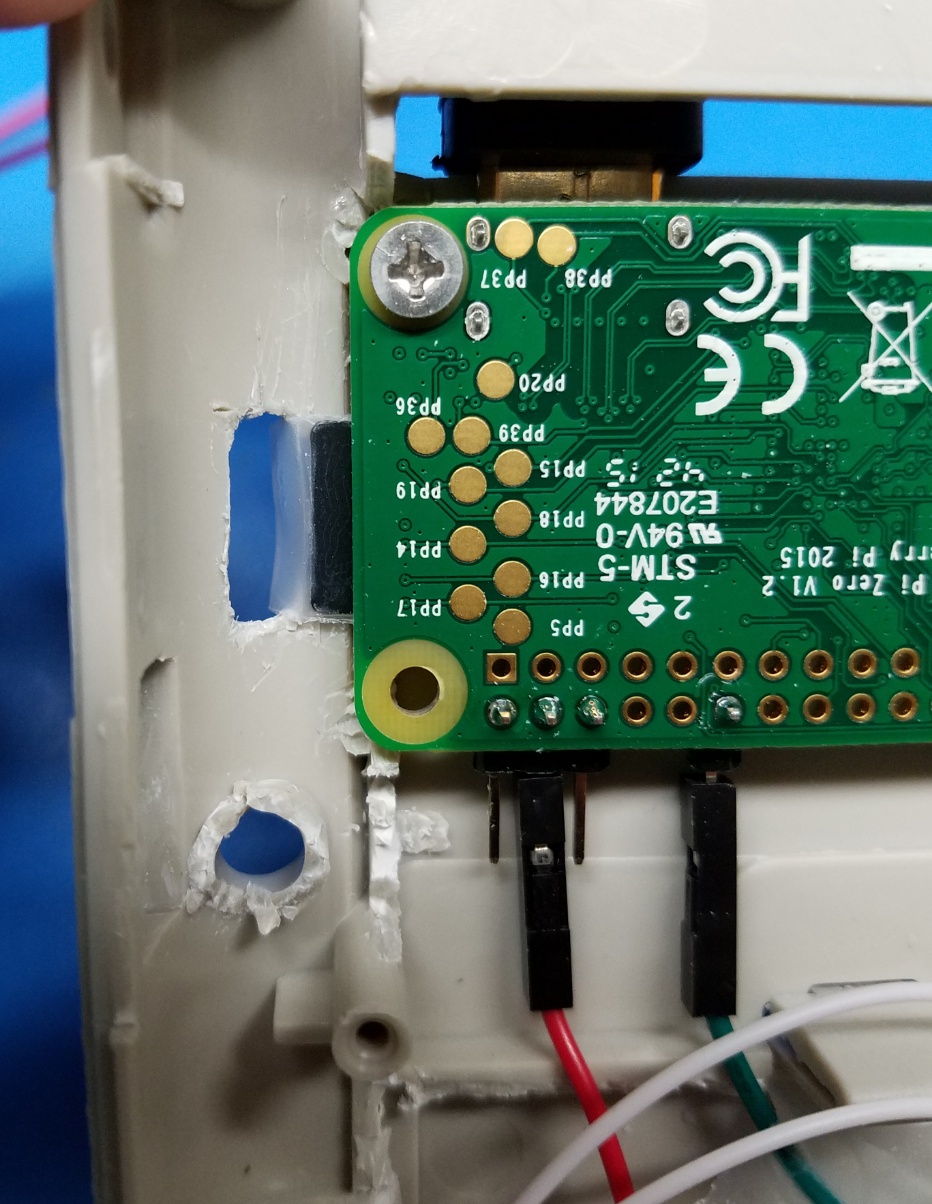

Opening slot for SD card insertion

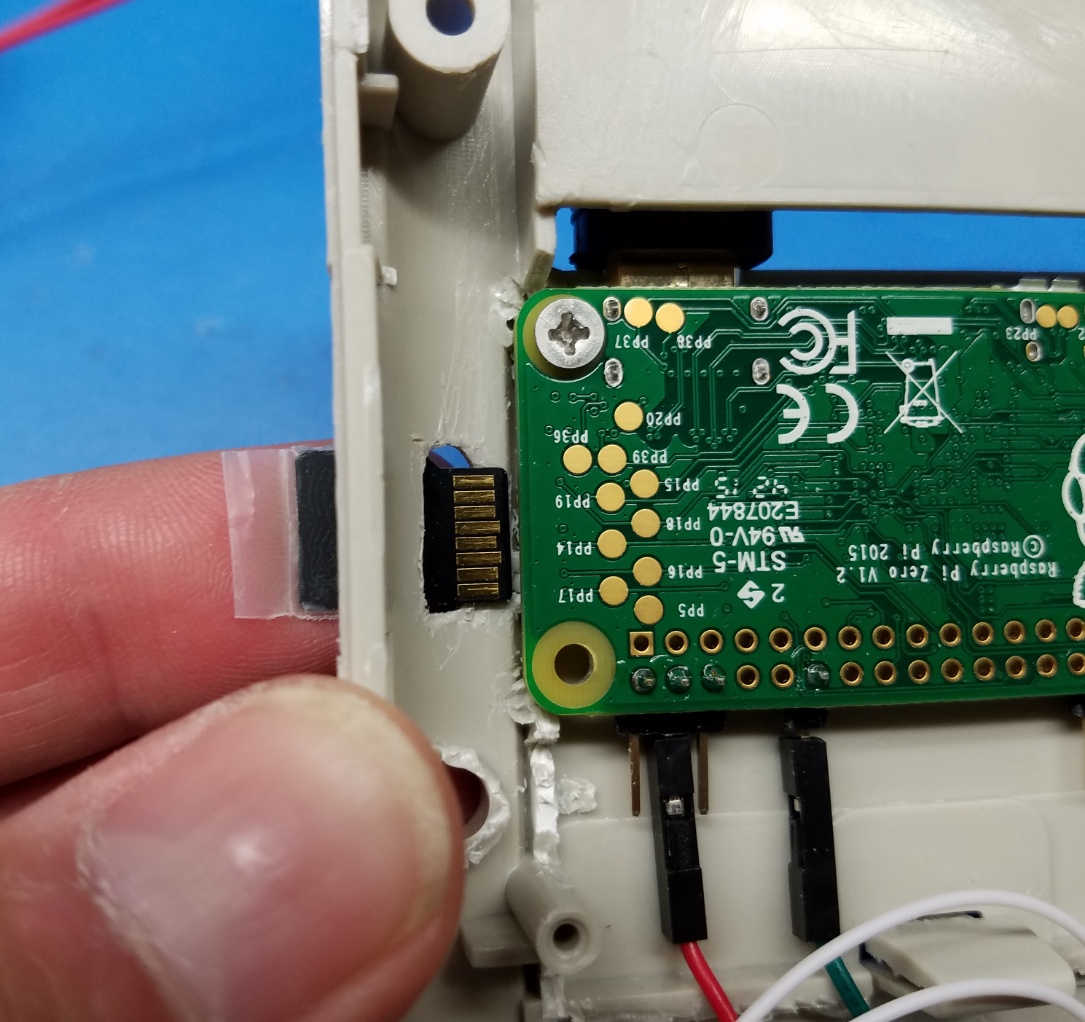

Added a small tape piece to SD card to be able to pull it


[tronicgr]

More progress:

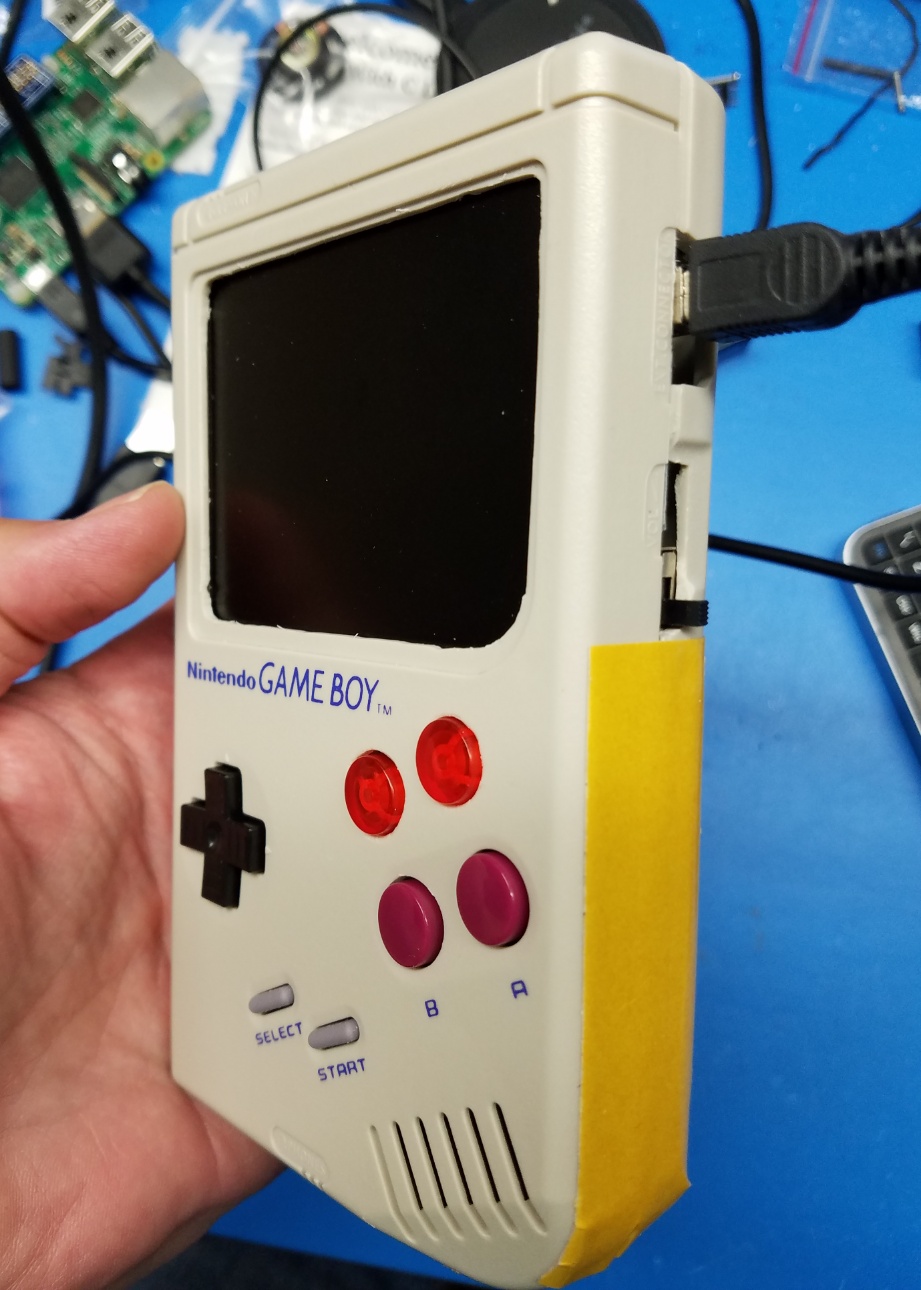

Checking everything fits

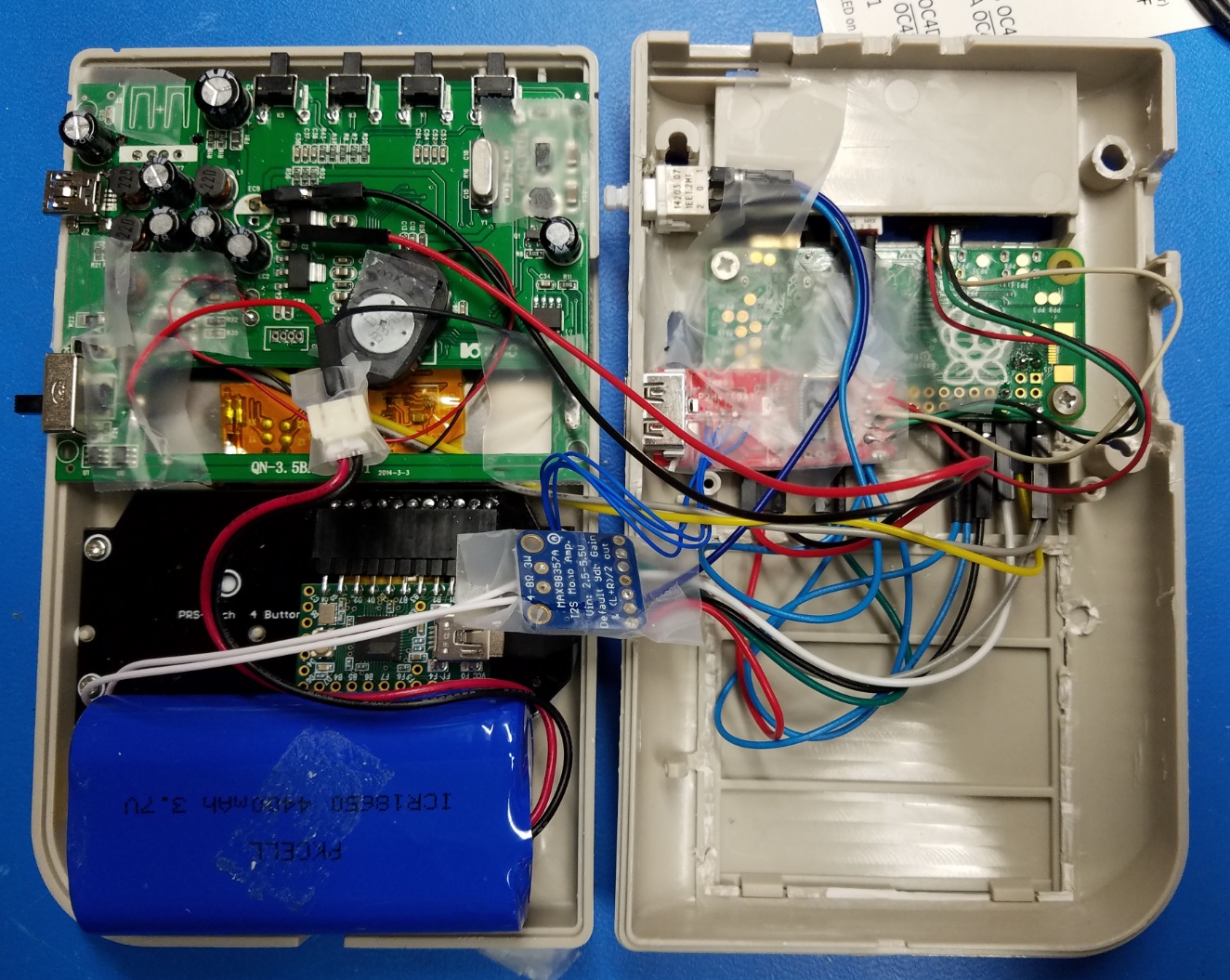

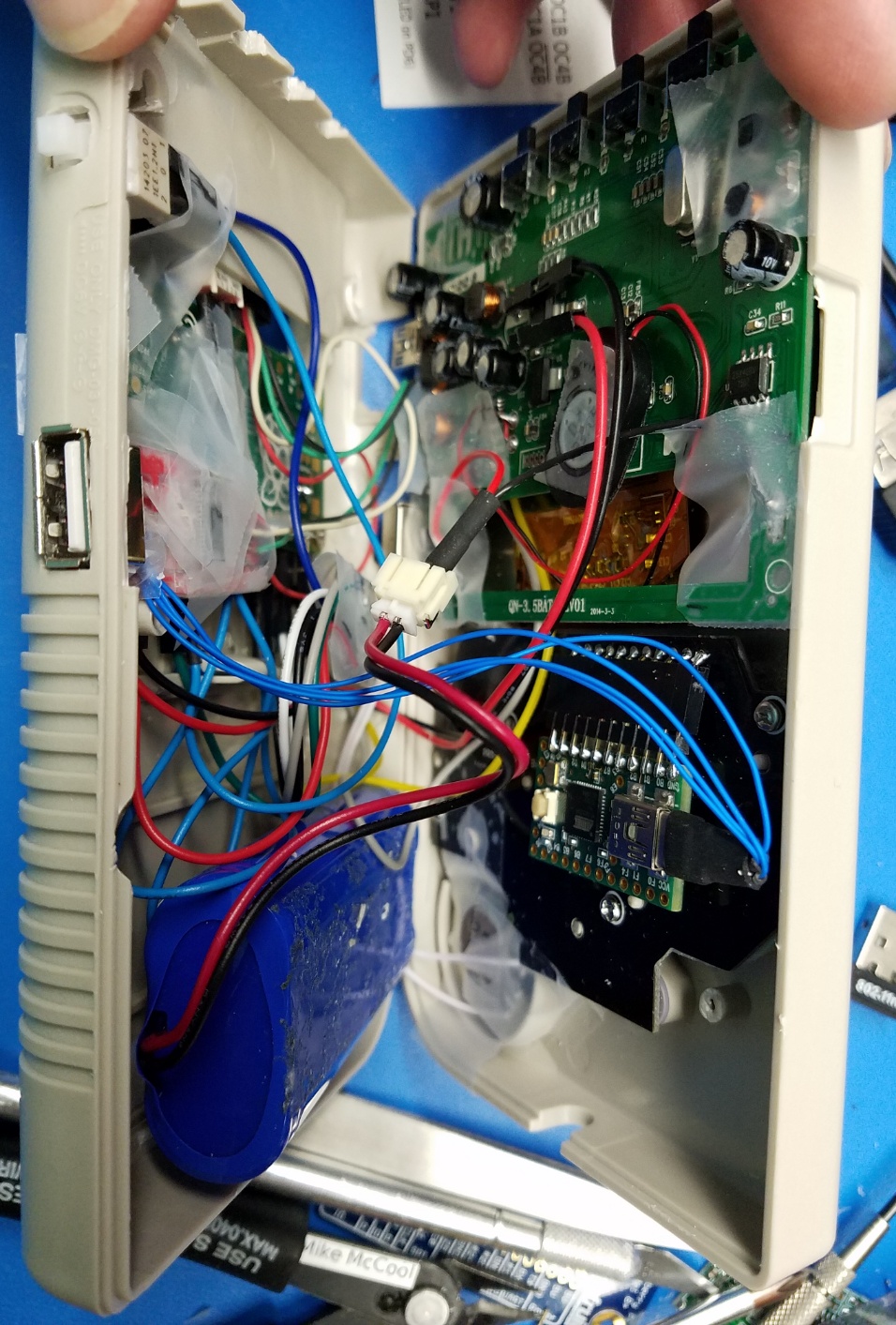

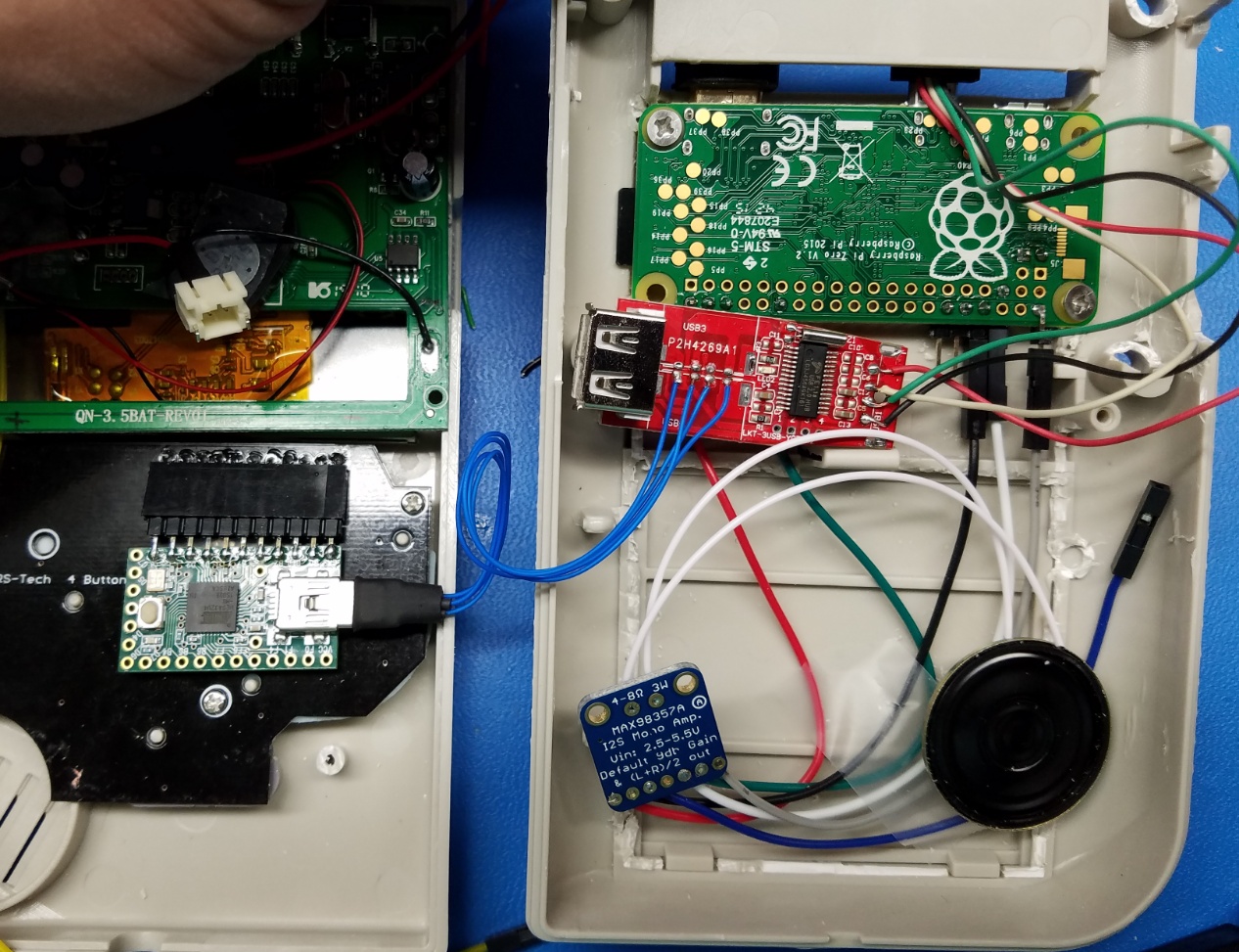

All parts fitted in the enclosure

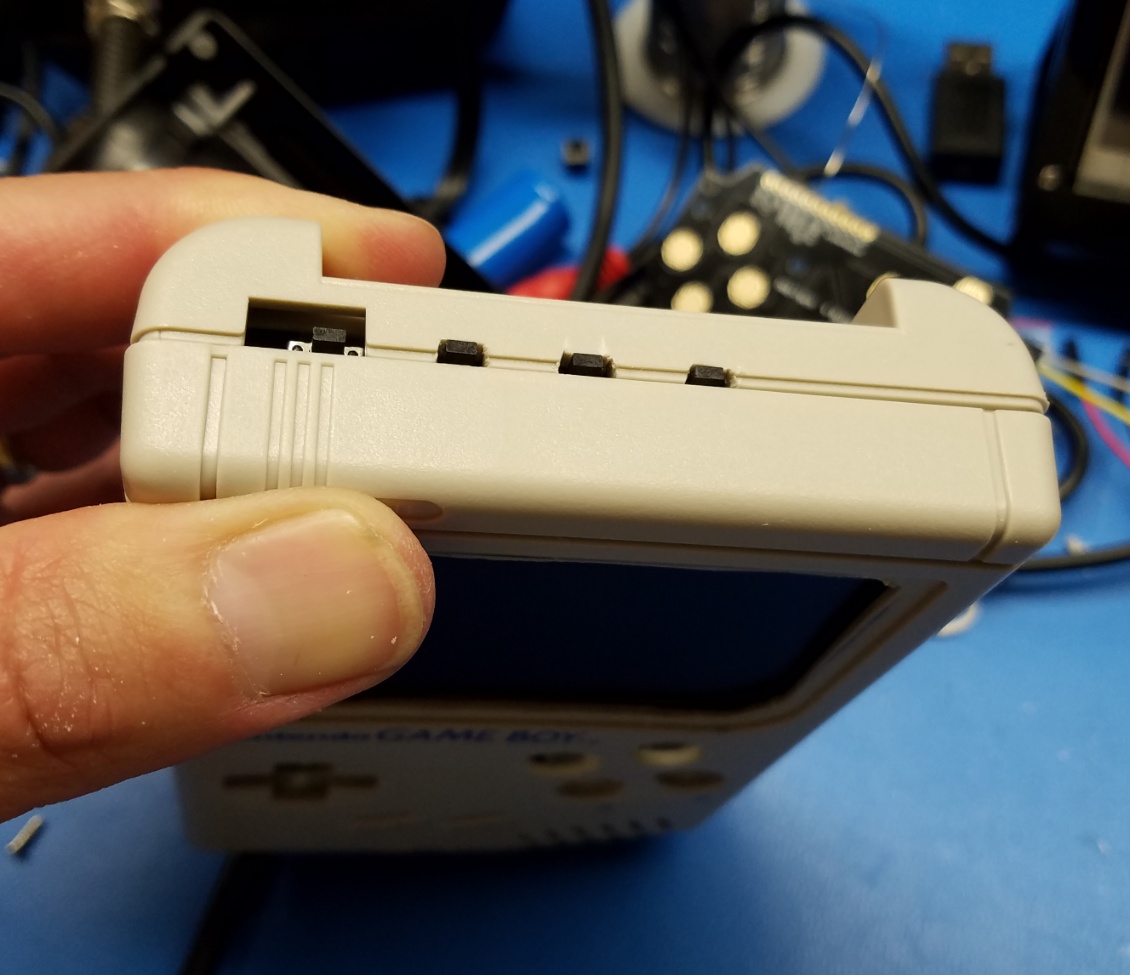

Back of the case in final form, you can see the shutdown button for the raspberry system

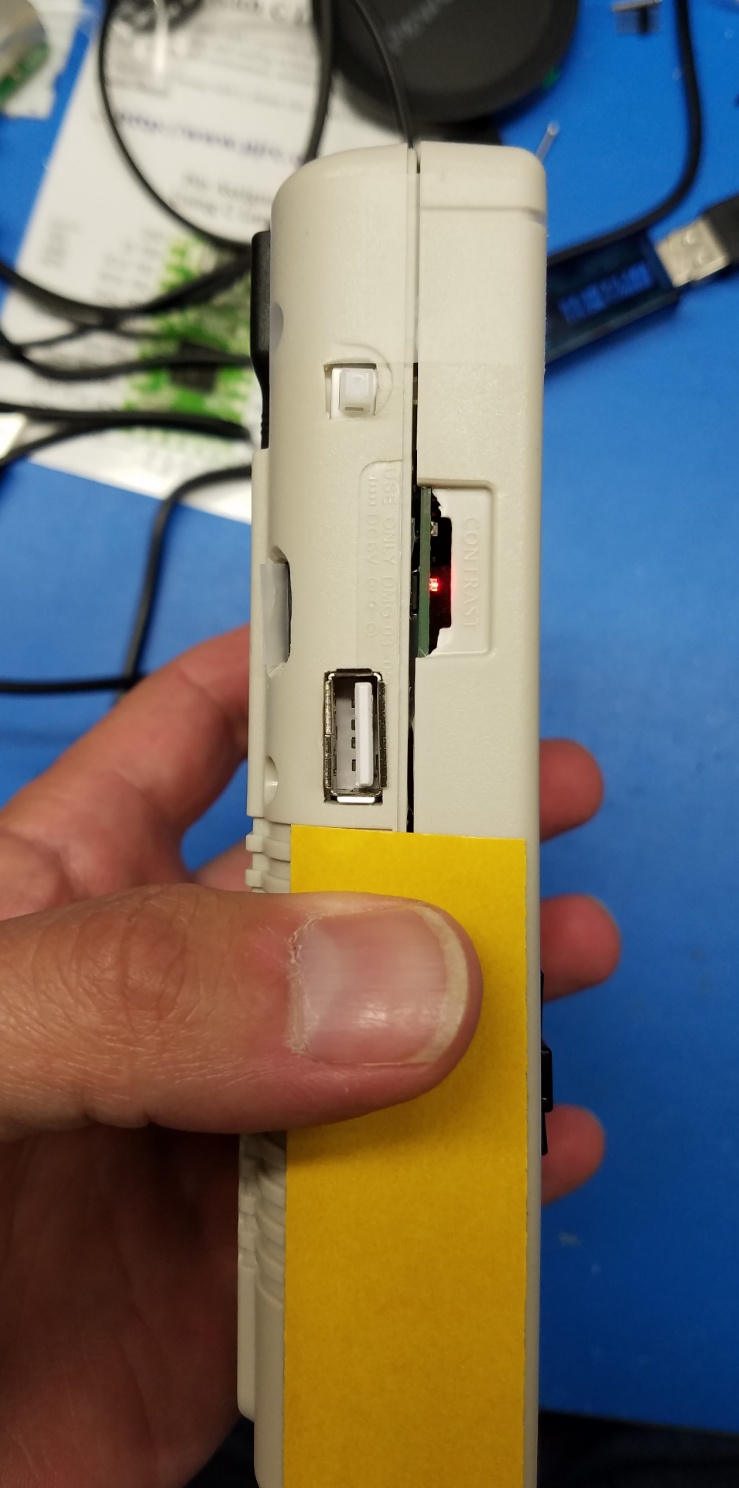

USB hub access from the side

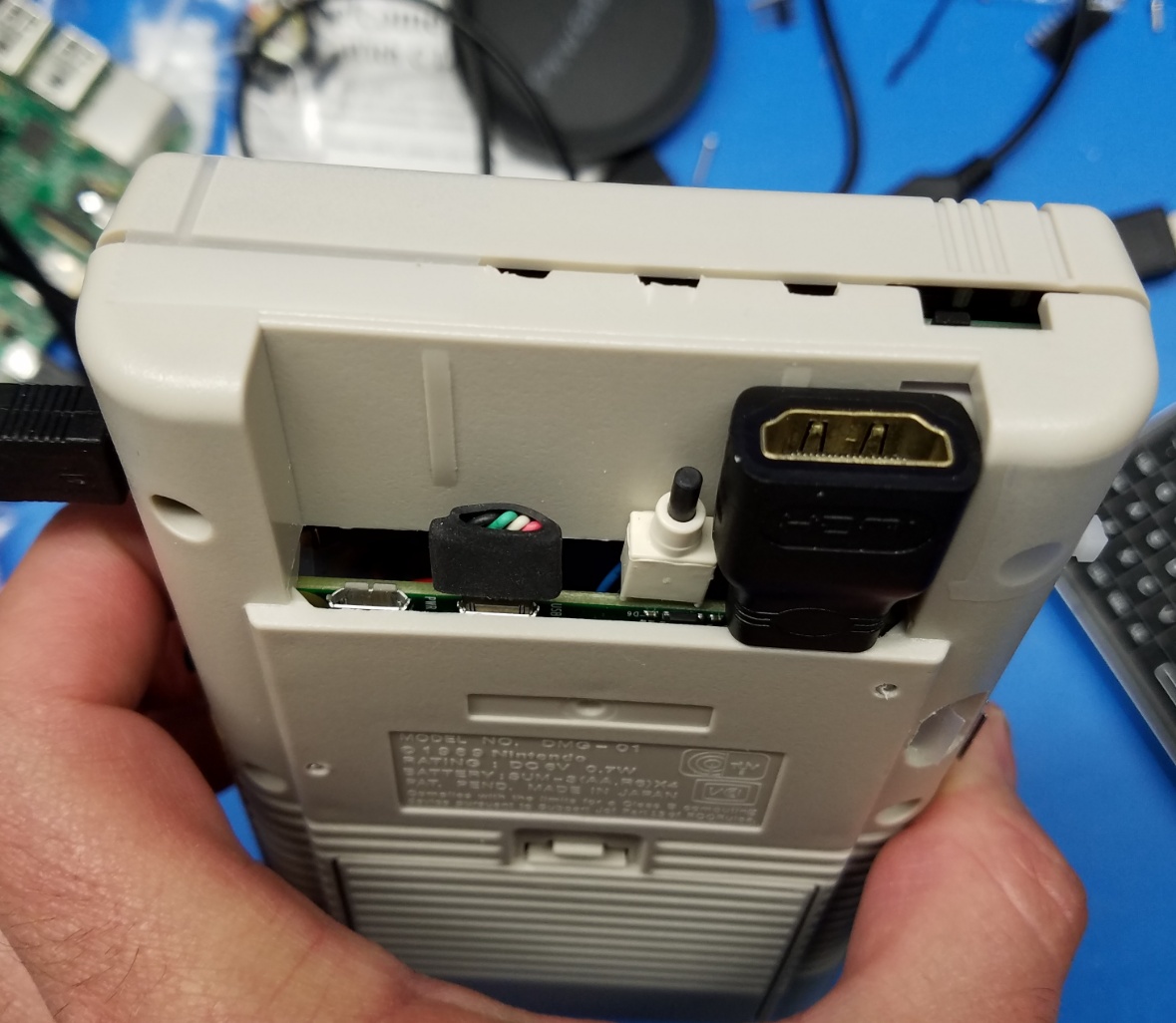

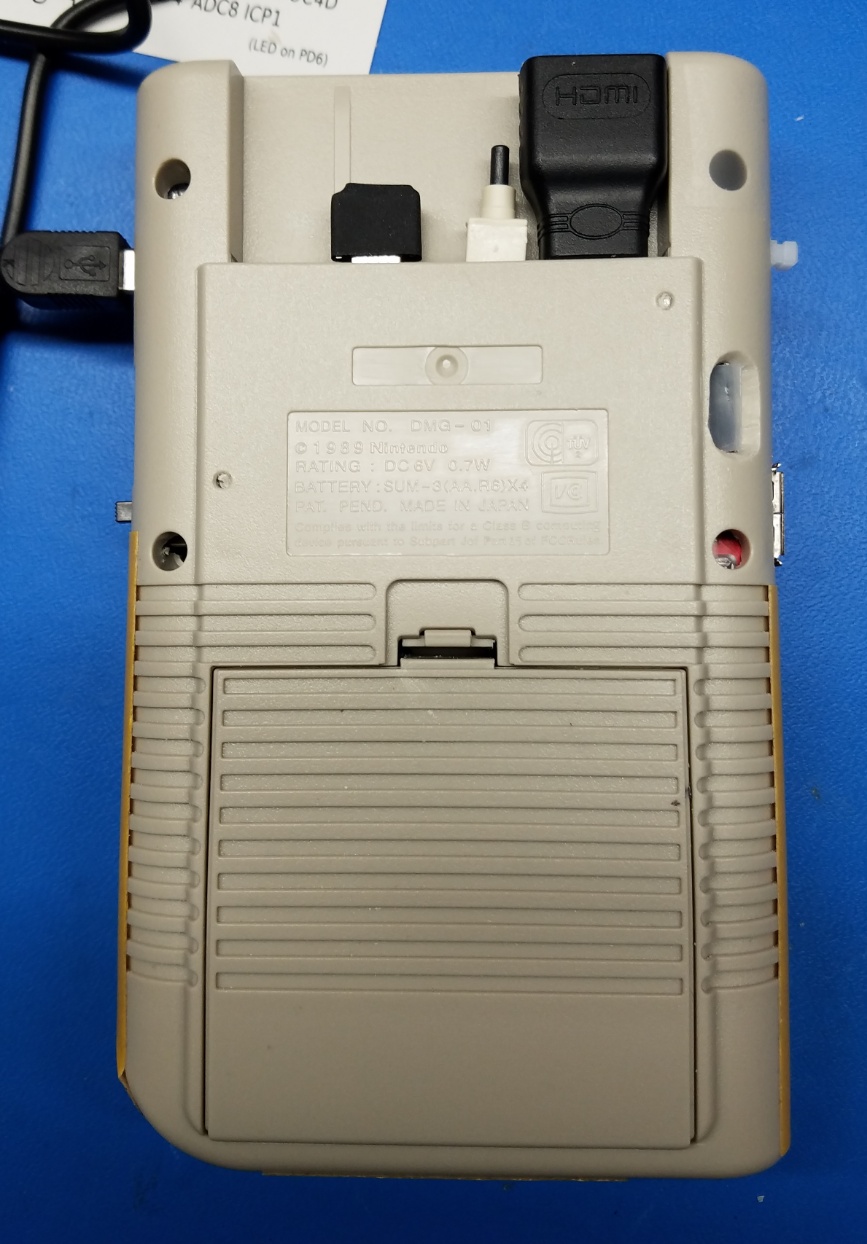

Hdmi and USB connections to the RPI zero

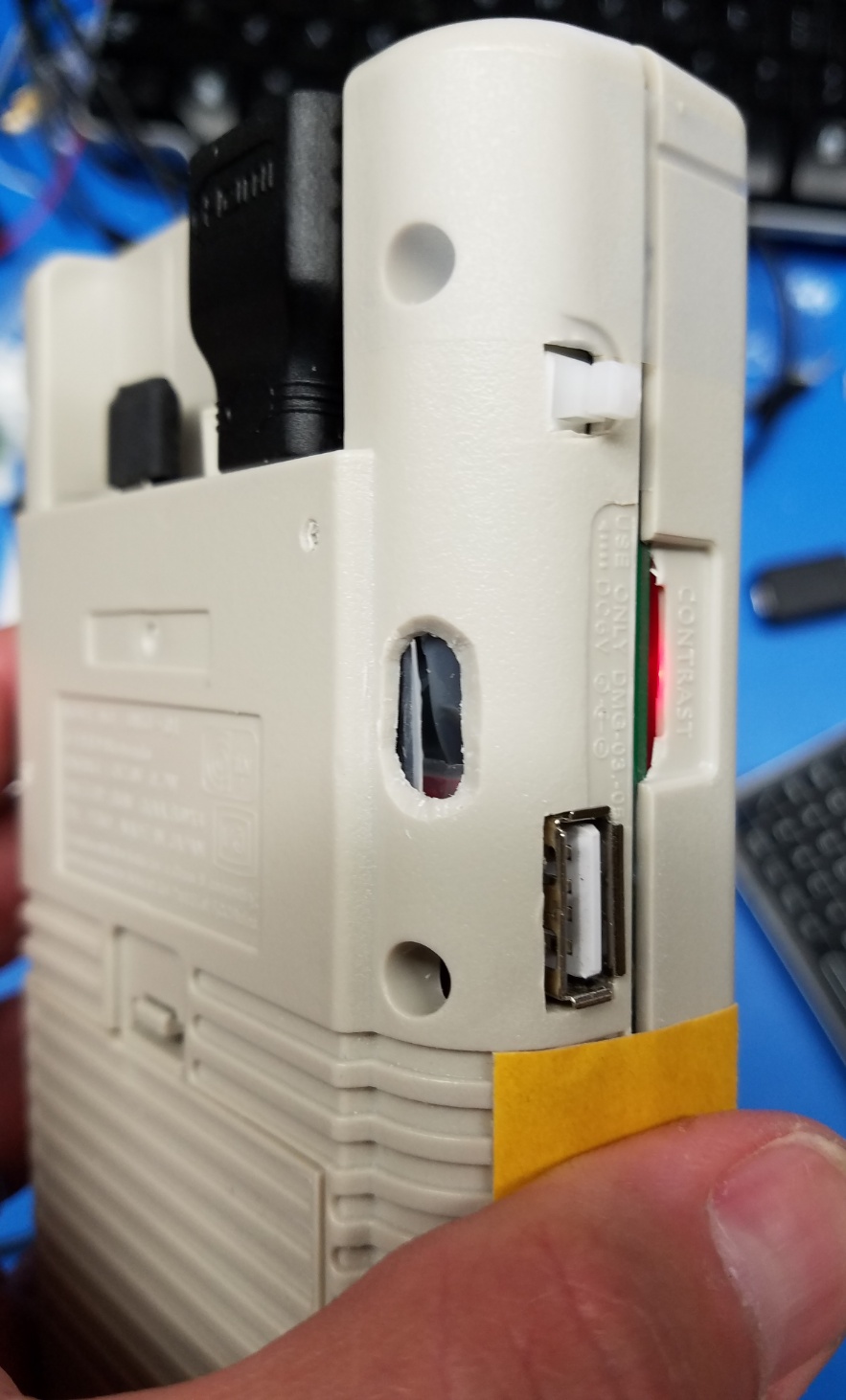

SD card access slot and sound Mute push switch


Attached is the charging usb cable, charges with device ON or OFF.


Thanks
Thanos

[tronicgr]

Here is a better video that demonstrates the final result. I haven't found a better way to mount internally the two parts of the case yet, thus the reason for the tape on the sides

https://www.youtube.com/watch?v=zJlBMfedyMM


Thanks
Thanos

[tronicgr]

I succeed to fix the volume issues with I2S in retropie without having to re-complile the Emulation Station!!!!!


I just added a mixer value for the I2S sound following the instructions of the HiFiberry page:
https://support.hifiberry.com/hc/en-us/ ... me-control

I edited the /etc/asound.conf adding:

Code: Select all

pcm.hifiberry {
    type softvol
    slave.pcm "plughw:0"
    control.name "PCM"
    control.card 0
}

pcm.!default {
    type plug
    slave.pcm  "hifiberry"
}

ctl.!default {
 type hw
 card 0
}

After a reboot, I can now access the volume via the alsamixer fine without having to recompile the Emulation Station!!!

You can check with the commands:
amixer
aplay -l

Code: Select all

pi@retropie:~ $ amixer
Simple mixer control 'PCM',0
  Capabilities: volume
  Playback channels: Front Left - Front Right
  Capture channels: Front Left - Front Right
  Limits: 0 - 255
  Front Left: 255 [100%]
  Front Right: 255 [100%]
Simple mixer control 'PCM',0
  Capabilities: volume
  Playback channels: Front Left - Front Right
  Capture channels: Front Left - Front Right
  Limits: 0 - 255
  Front Left: 255 [100%]
  Front Right: 255 [100%]
pi@retropie:~ $


pi@retropie:~ $ aplay -l
**** List of PLAYBACK Hardware Devices ****
card 0: sndrpihifiberry [snd_rpi_hifiberry_dac], device 0: HifiBerry DAC HiFi pcm5102a-hifi-0 []
  Subdevices: 0/1
  Subdevice #0: subdevice #0
pi@retropie:~ $

Thanks
Thanos

[Fleder]

I succeed to fix the volume issues with I2S in retropie without having to re-complile the Emulation Station!!!!!

Thanks.
I read about that, too. But it was too much to get into, so i just recompiled it.
But this is a great way to save 2 1/2 hours Nice find.

Would you mind creating a tutorial on this for the forum?

[tronicgr]

I succeed to fix the volume issues with I2S in retropie without having to re-complile the Emulation Station!!!!!

Thanks.
I read about that, too. But it was too much to get into, so i just recompiled it.
But this is a great way to save 2 1/2 hours Nice find.

Would you mind creating a tutorial on this for the forum?

Of course you can create tutorial for it if you want to use any of the information here.

I have more information on the i2s sound on Adafruit forum, and made a video as well that shows the modification working on their PiGrrl Zero just yesterday:

https://youtu.be/ct3Clmvc-KQ

https://forums.adafruit.com/viewtopic.php?f=50&t=97961

Thanks
Thanos

[vnman]

Hi,

I have the same screen as yours.

One question, how did you remove the case of the monitor?

Thanks

VNMan

[vnman]

figured how to disassemble the case...
