Tony85's Circuit Sword build

Post by Tony85_23061 » Thu Sep 27, 2018 10:47 pm

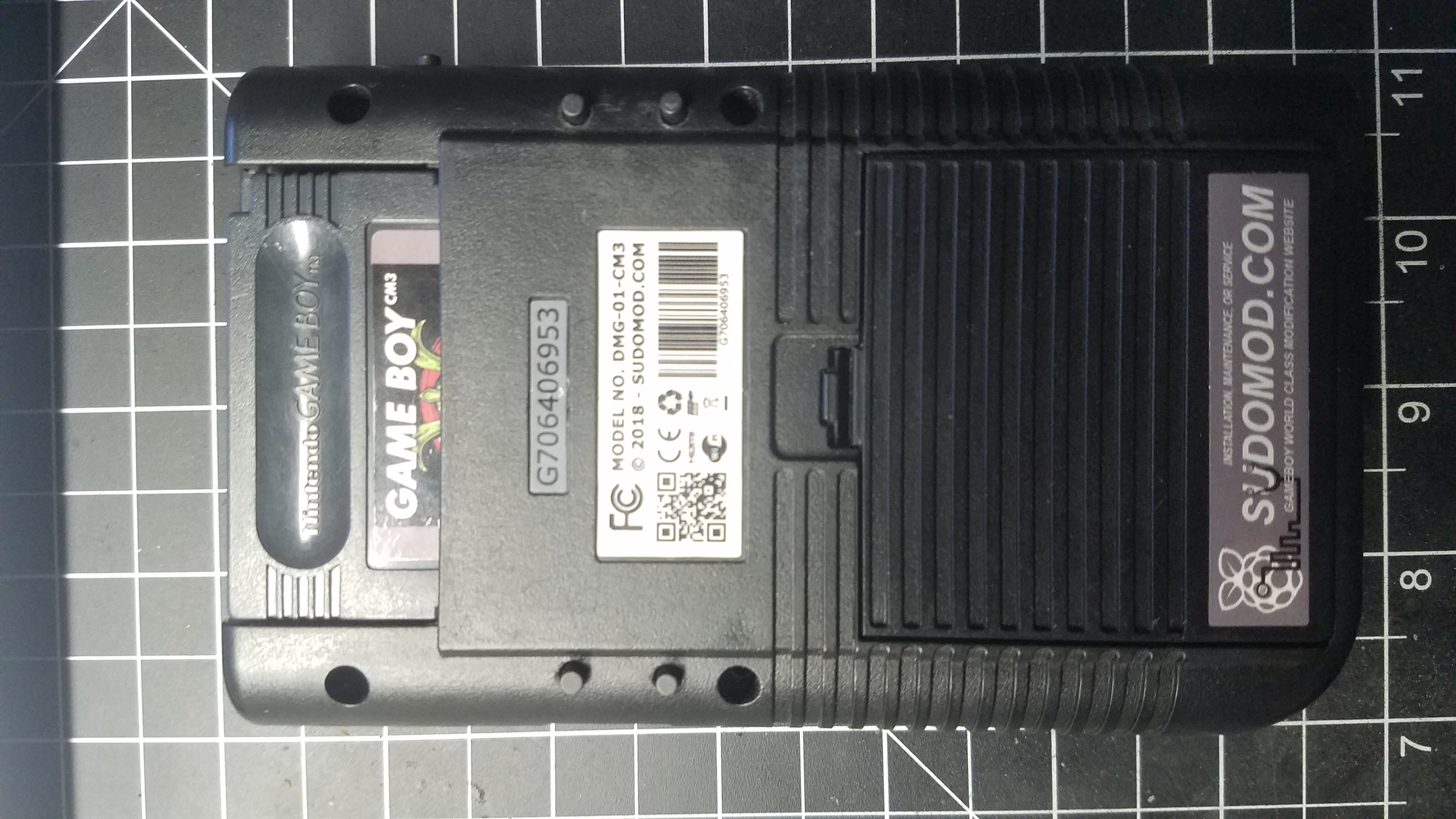

Pretty basic build with a usb micro sdcard reader buried inside of a game cartridge (prs-tech board with the corner cutoff to accommodate the usb reader). While its great for killing time playing old games it's primarily used to watch videos while on my lunch break at work to keep my phone available for other things.
Attachments

User avatar
kite
Posts: 895
Joined: Thu May 12, 2016 4:30 am
Location: UK
Has thanked: 231 times
Been thanked: 300 times
Contact:

Re: Tony85's Circuit Sword build

Post by kite » Fri Sep 28, 2018 2:20 am

Nice :) how did you wire up the SD card? You must have found the extra USB port on the inside, I was wondering when someone was going to use it for something!! :) Nice one

snoek09
Posts: 145
Joined: Sat May 20, 2017 3:06 am
Location: Amsterdam, The Netherlands
Has thanked: 48 times
Been thanked: 43 times

Re: Tony85's Circuit Sword build

Post by snoek09 » Fri Sep 28, 2018 3:19 am

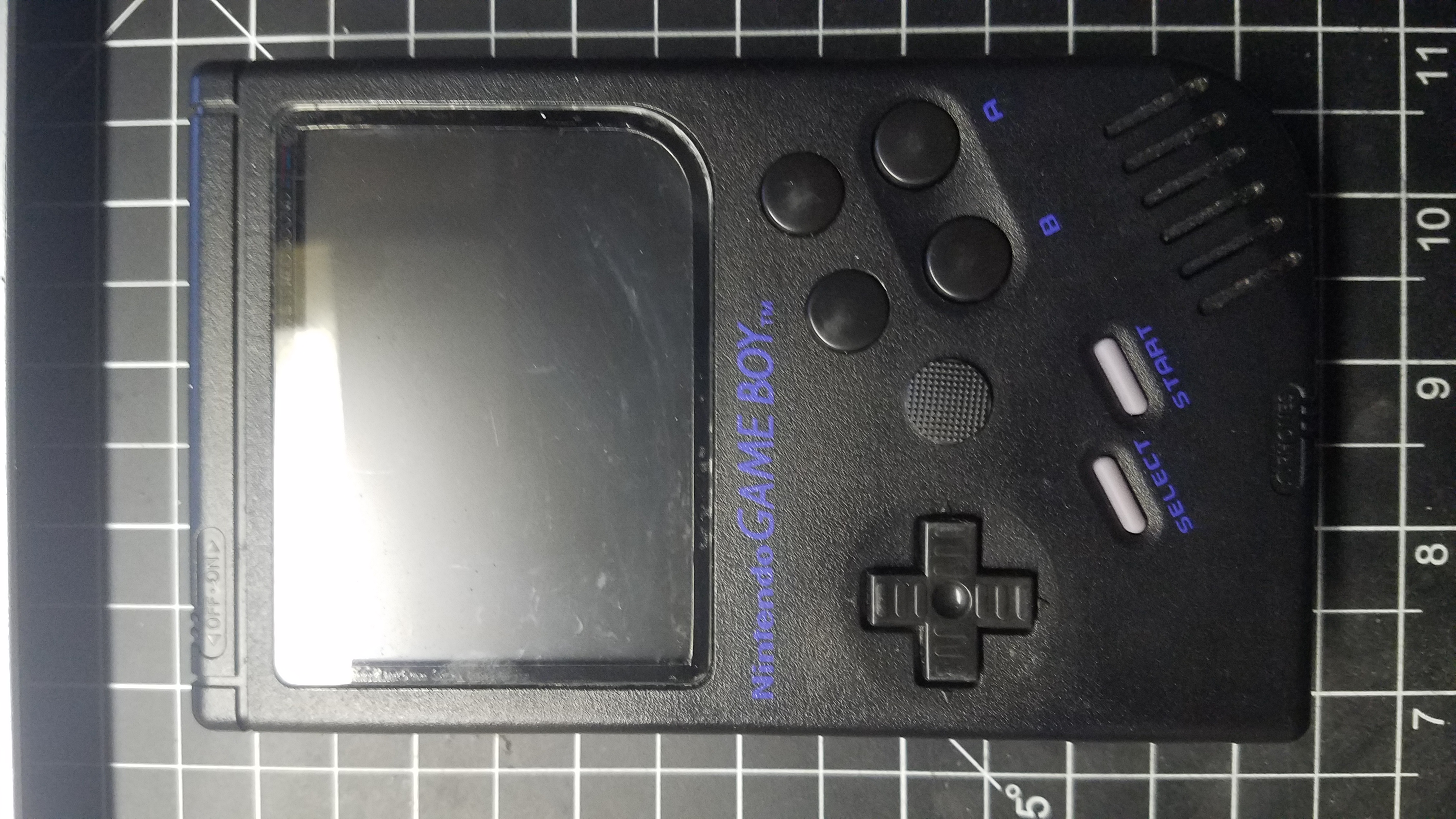

Looks good from the outside! I'm interested to see the inside of this build.

Tony85_23061
Posts: 17
Joined: Wed Feb 14, 2018 6:00 am
Has thanked: 9 times
Been thanked: 6 times

Re: Tony85's Circuit Sword build

Post by Tony85_23061 » Fri Sep 28, 2018 4:44 am

kite wrote:
Fri Sep 28, 2018 2:20 am
Nice :) how did you wire up the SD card? You must have found the extra USB port on the inside, I was wondering when someone was going to use it for something!! :) Nice one
I actually soldered wires directly to the pcb contacts for the usb port on the backboard. Then soldered the four wires directly to the cartridge reader. Inside the game cartridge i soldered directly to the usb pins on the (kingston) micro sd card reader and utilized the extra solder pads on the prs-tech board to make the connection to the cartridge reader.

My first attempt i did use the extra usb port but the provided wires were a bit too short and i had a little difficulty holding the shell half closed and getting my chubby fingers in there to plug it in. So i decided to tap the usb port on the back board. This made closing up the shell a lot easier and came out looking pretty clean

It's not the cleanest job i will admit, i didn't have all of the pieces when i assembled it. So needless to say i opened it up more times than i probably should have thus messing up my screen bracket. Now that i have things just about the way i want them i may redo the front half of the shell. The backhalf is pretty much perfect imo.
Attachments

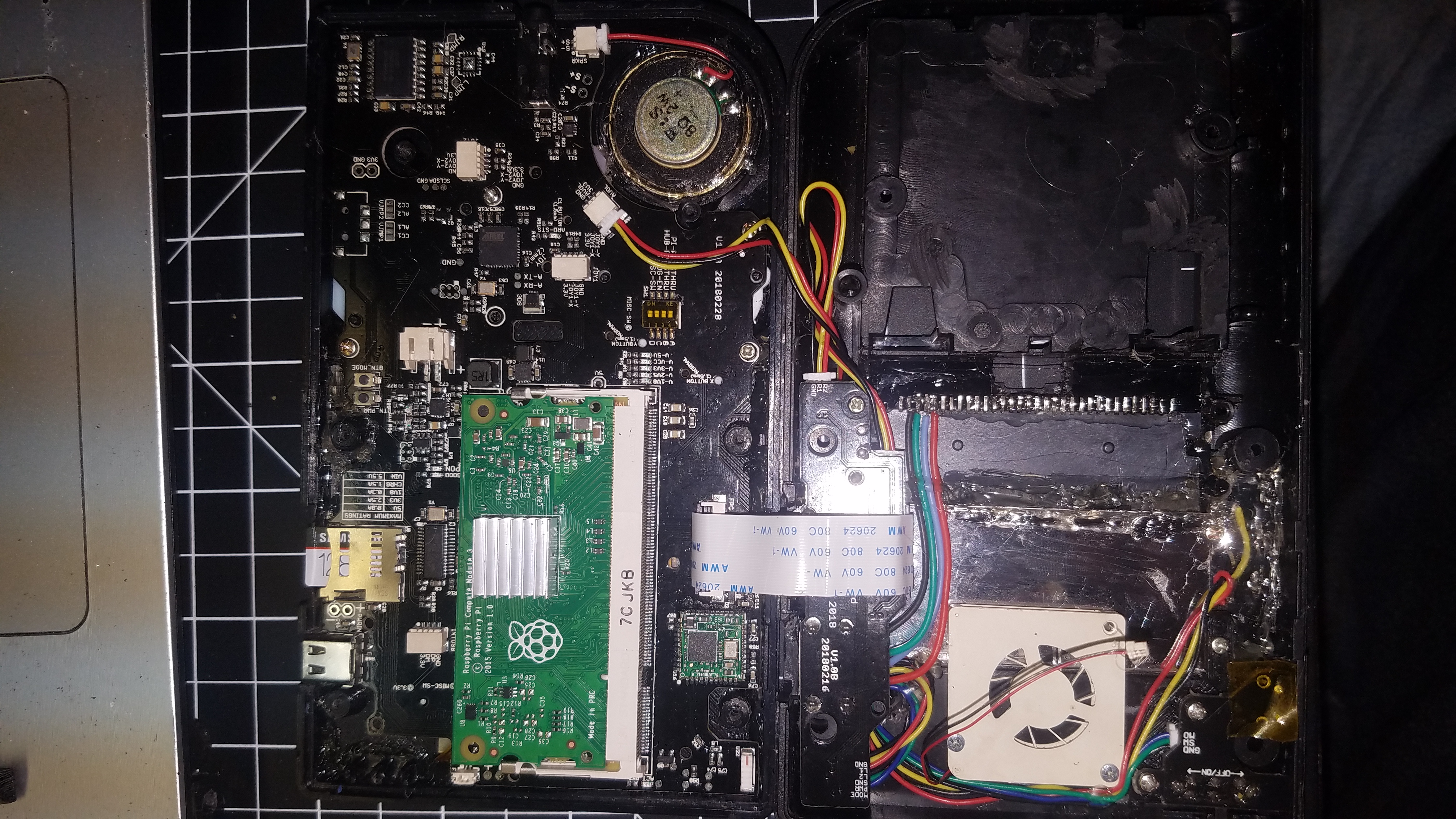

Evidently this picture was taken prior to the addition of the psp joystick. Also there is more kapton tape than pictured, mainly the wifi module

User avatar
kite
Posts: 895
Joined: Thu May 12, 2016 4:30 am
Location: UK
Has thanked: 231 times
Been thanked: 300 times
Contact:

Re: Tony85's Circuit Sword build

Post by kite » Fri Sep 28, 2018 5:00 am

Nice idea, yeah I can see what you mean, other option would be to find a JST SH 4pin cable that's much longer! At least the way you have done it if you need the USB port you just have the unplug the cart, as well as neatening the wiring :) very impressed

Tony85_23061
Posts: 17
Joined: Wed Feb 14, 2018 6:00 am
Has thanked: 9 times
Been thanked: 6 times

Re: Tony85's Circuit Sword build

Post by Tony85_23061 » Fri Sep 28, 2018 5:22 am

kite wrote:
Fri Sep 28, 2018 5:00 am
Nice idea, yeah I can see what you mean, other option would be to find a JST SH 4pin cable that's much longer! At least the way you have done it if you need the USB port you just have the unplug the cart, as well as neatening the wiring :) very impressed
Thank you! Unplugging the cartridge is no big deal which is why i opted to go that route, the only inconvenience is having to reboot it to do so. Really not an issue lol

Tony85_23061
Posts: 17
Joined: Wed Feb 14, 2018 6:00 am
Has thanked: 9 times
Been thanked: 6 times

Re: Tony85's Circuit Sword build

Post by Tony85_23061 » Fri Sep 28, 2018 1:23 pm

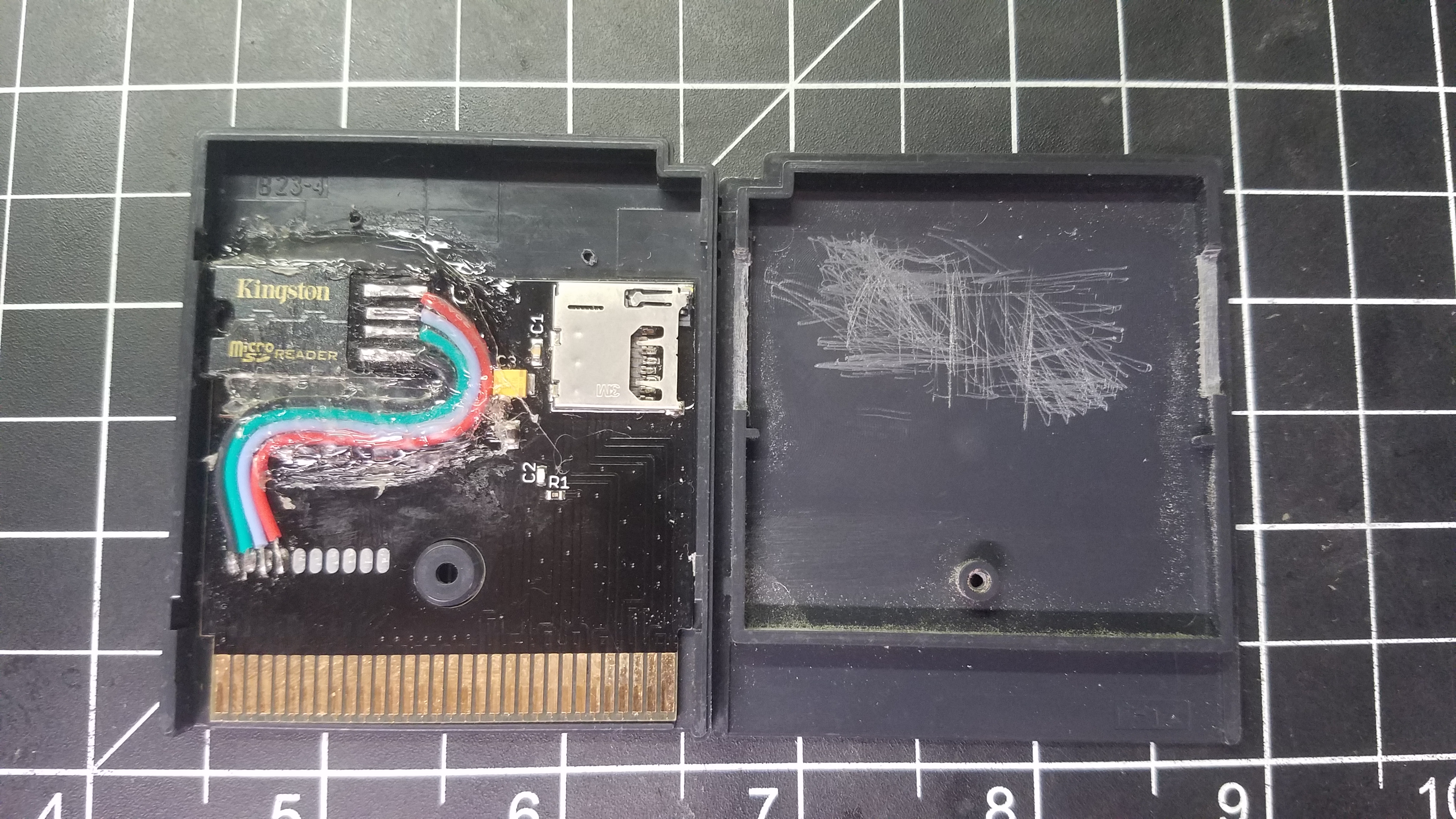

Just took a minute to open up the game cartridge
Attachments

Warzone1320
Posts: 39
Joined: Tue Sep 04, 2018 10:26 am
Has thanked: 19 times
Been thanked: 5 times

Re: Tony85's Circuit Sword build

Post by Warzone1320 » Fri Sep 28, 2018 1:52 pm

Awesome build!
