DirtyBeagles Gameboy Pi2 [95% Completed]

Show off your completed Game Boy Zero, or post your build logs here!
User avatar
dirtybeagles
Posts: 385
Joined: Thu May 05, 2016 6:04 am
Has thanked: 34 times
Been thanked: 63 times

DirtyBeagles Gameboy Pi2 [95% Completed]

Post by dirtybeagles » Sun Jun 26, 2016 8:25 pm

Started my second Gameboy Pi, this time with a Raspberry Pi 2. With the Pi2, you will get some more CPU and memory than the Zero, but you have to have cut it up a little to get it to fit. Here is my progress:

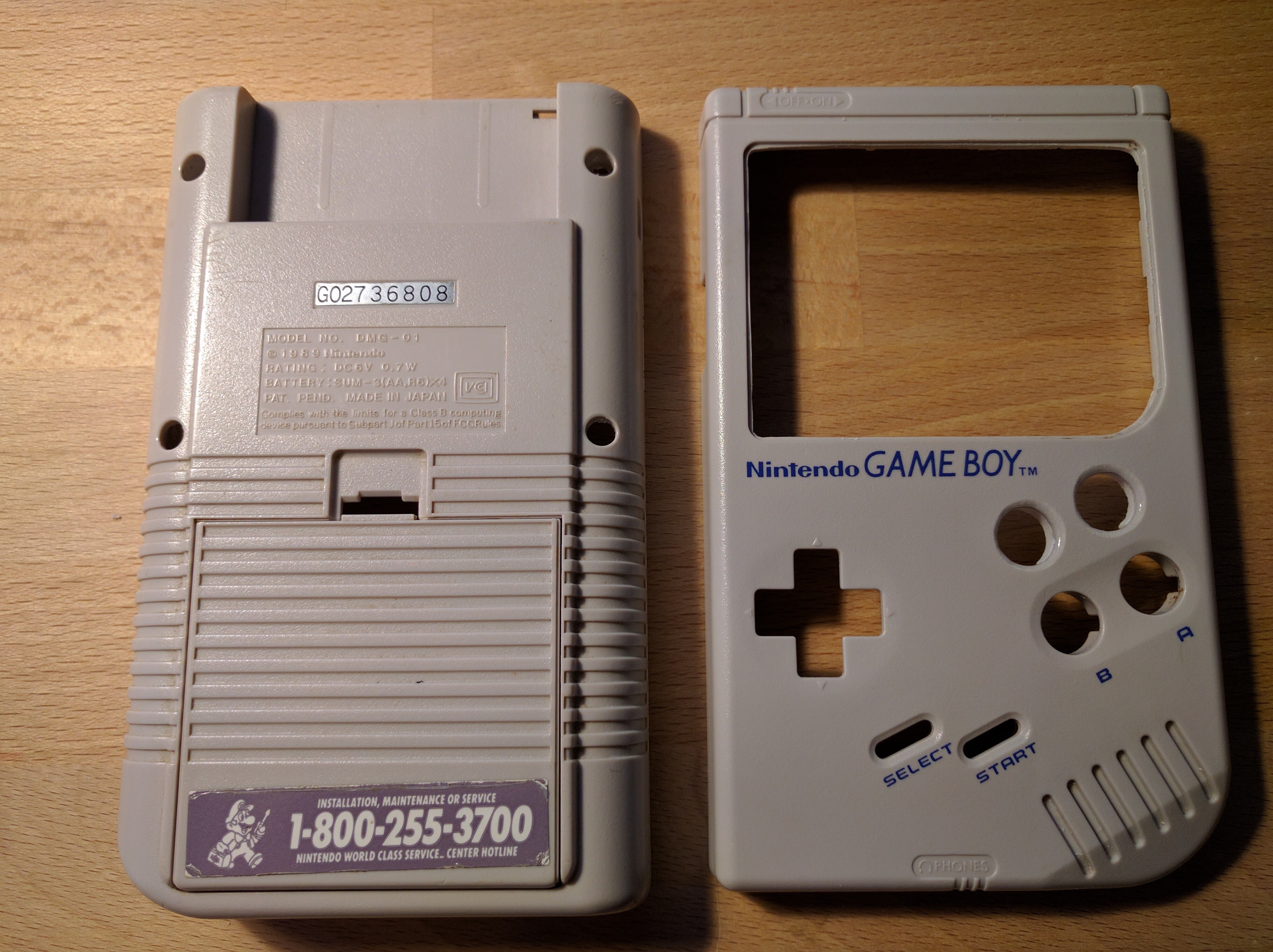

Front and Back
[spoiler="Front and Back"]
[/spoiler]
Inside
[spoiler="Inside"]
[/spoiler]

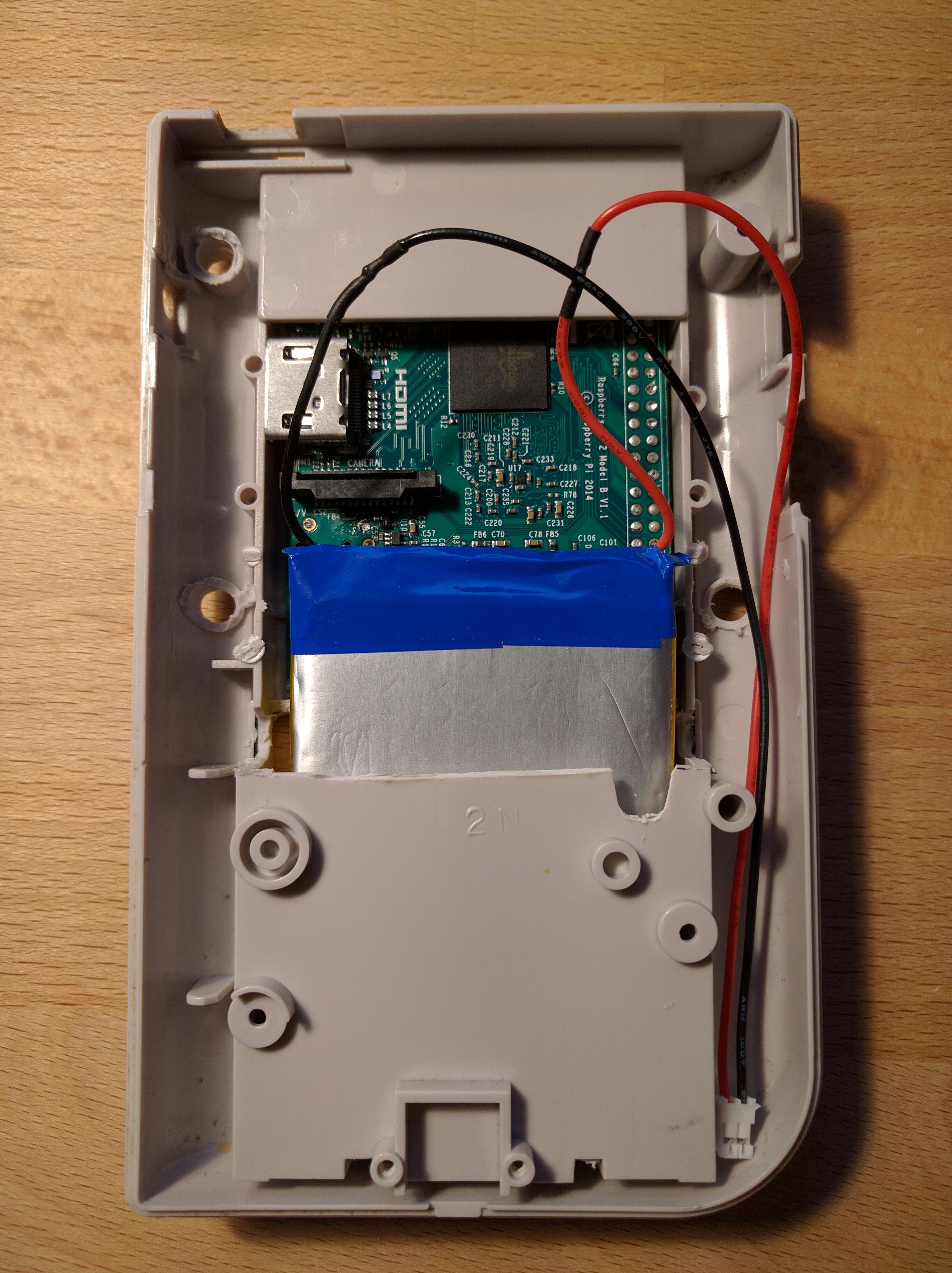

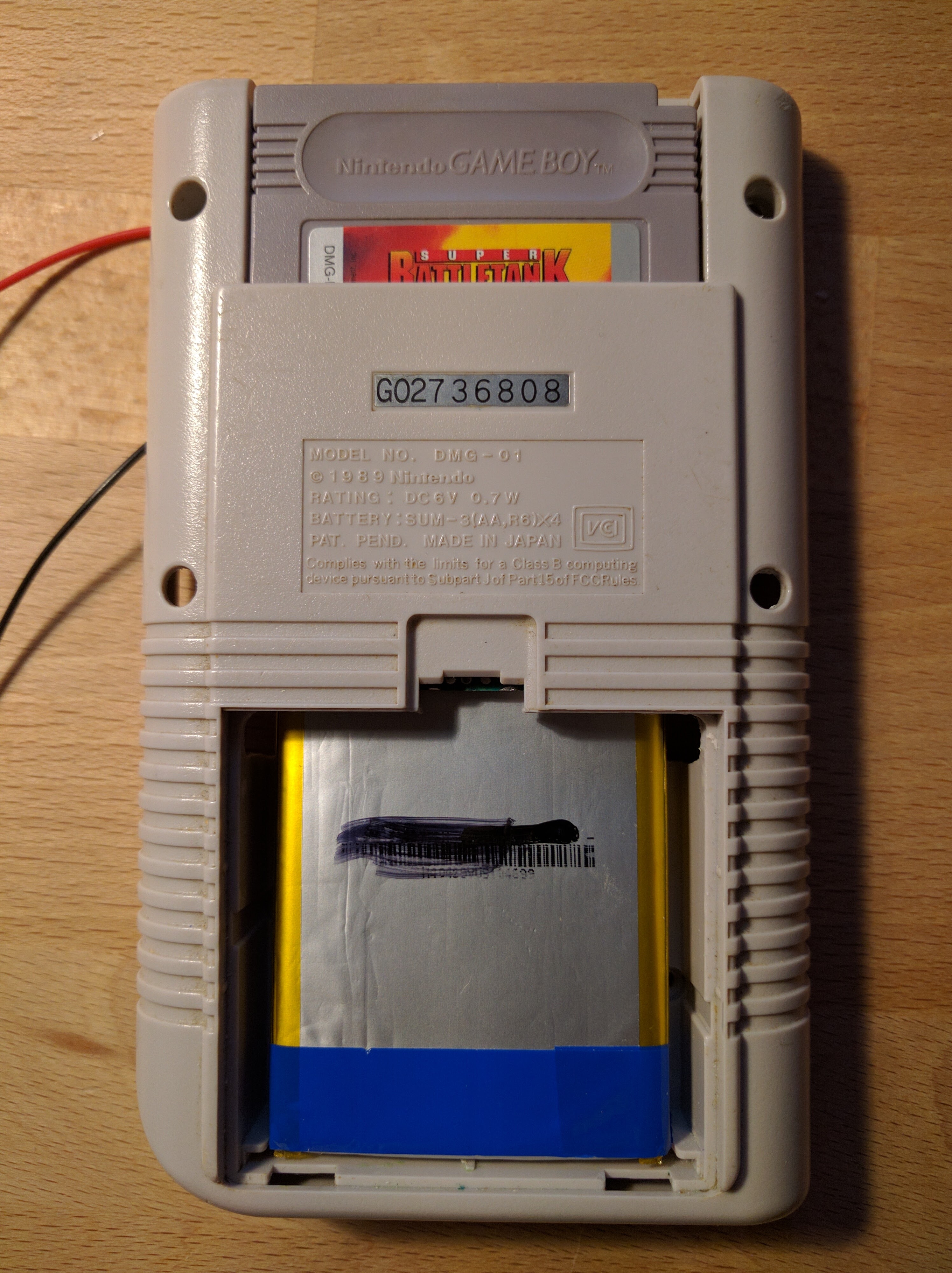

Battery Plus Pi2 inside(battery is a 5000mAh from ebay):
[spoiler="Battery Plus Pi2 inside"]
[/spoiler]

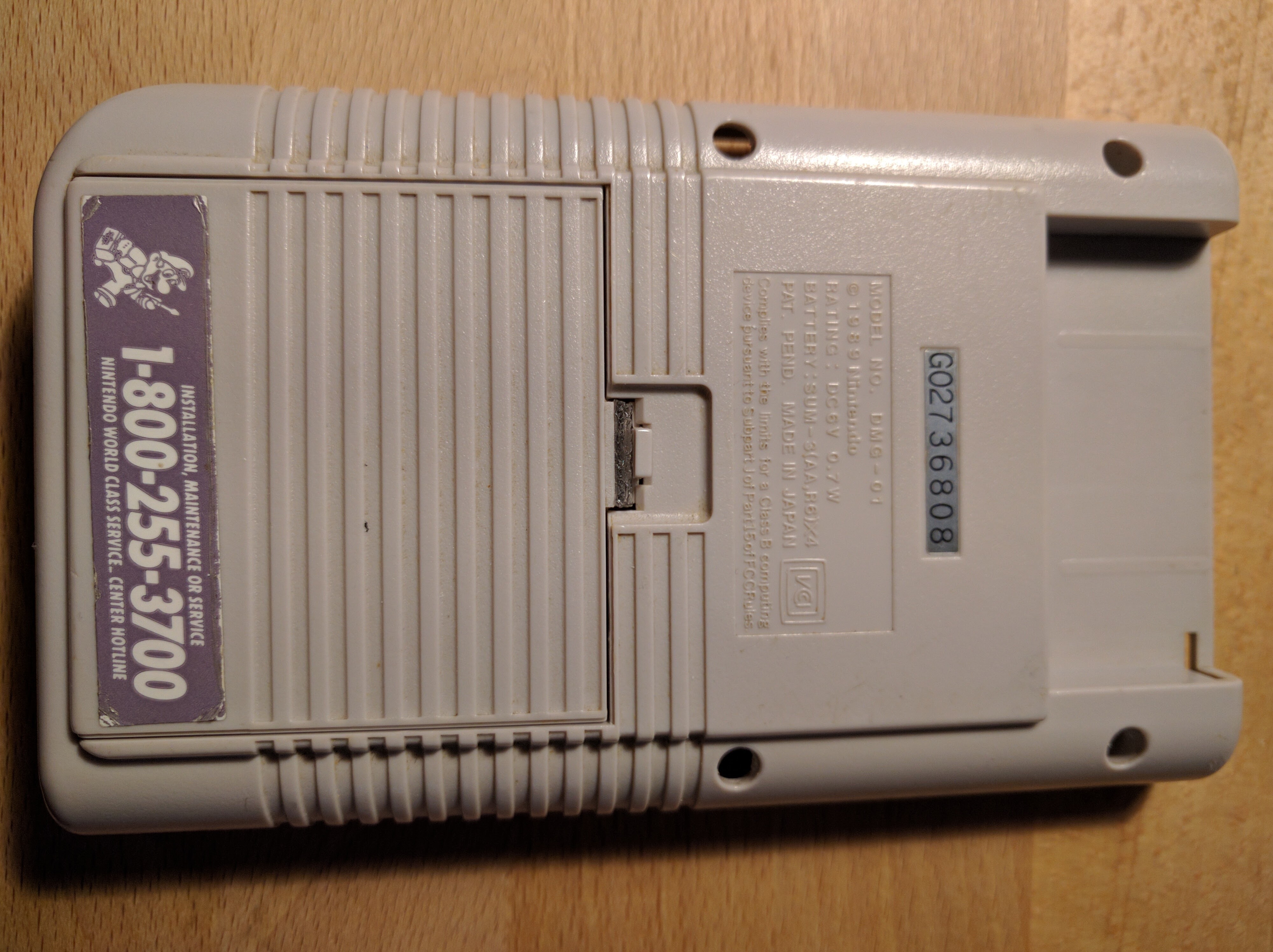

Battery Plus Pi2 back
[spoiler="Battery Plus Pi2 back"]
[/spoiler]

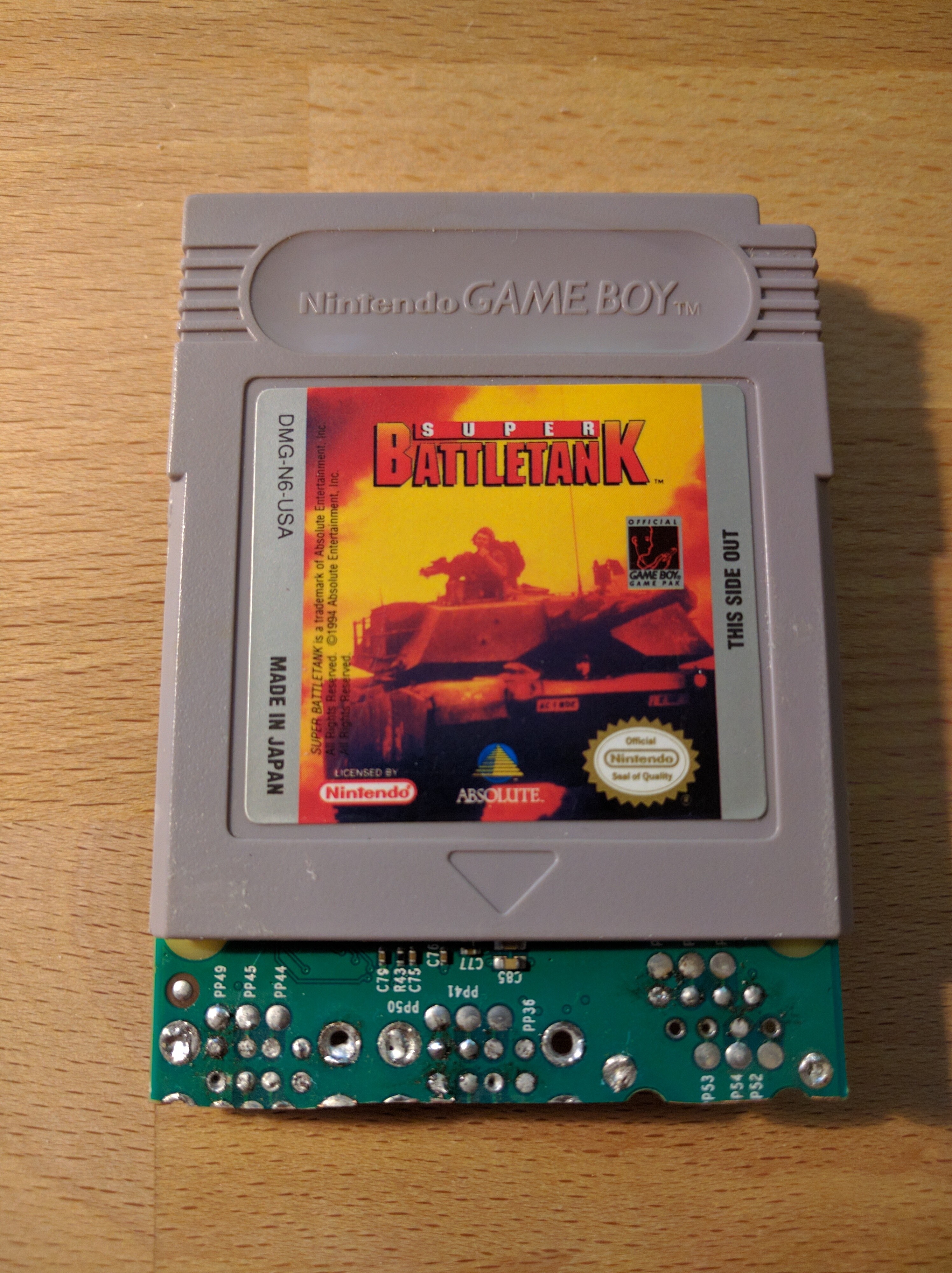

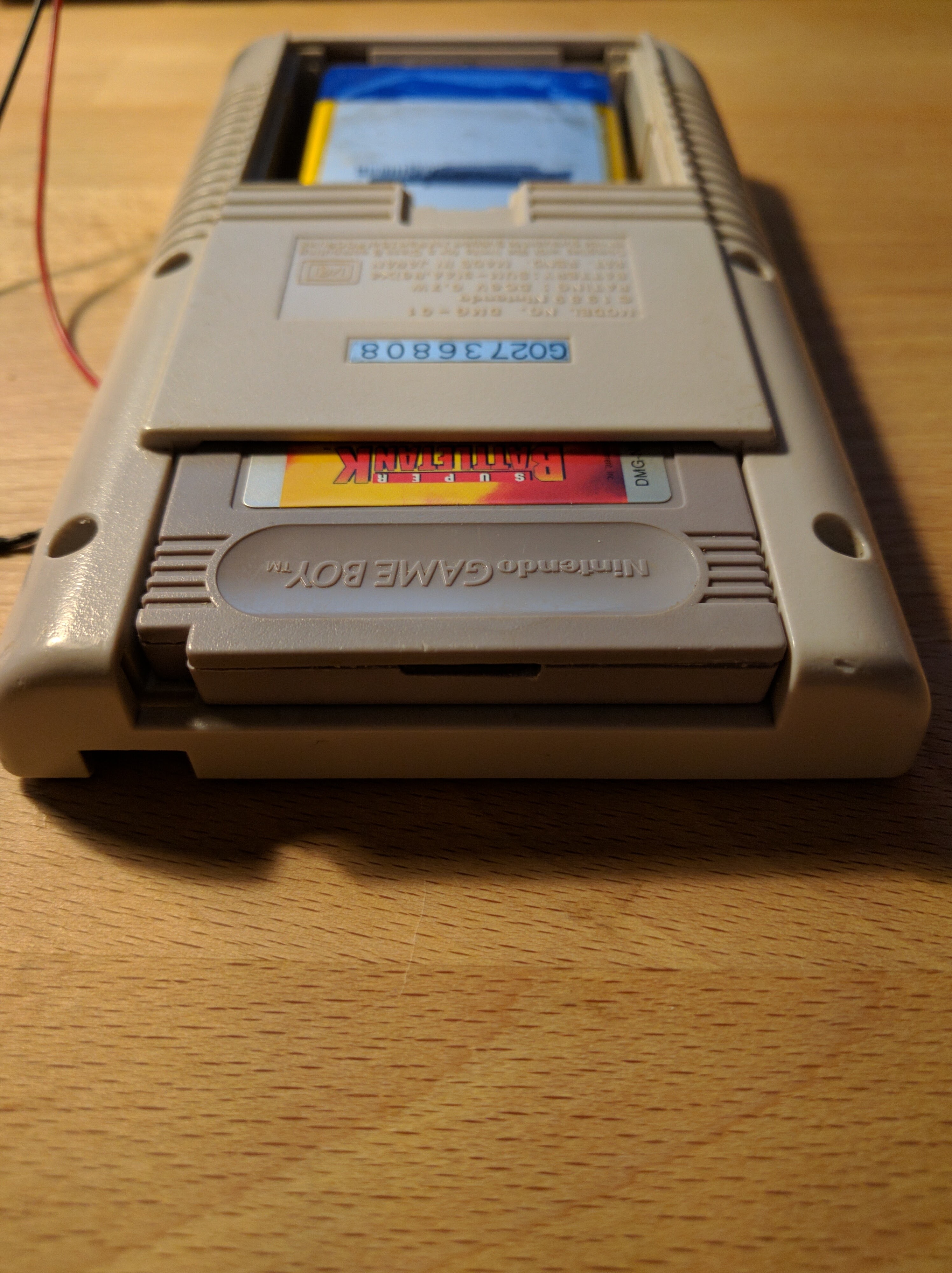

With cartridge
[spoiler="With cartridge"]
[/spoiler]
Top view of cartridge
[spoiler="Top view of cartridge"]
[/spoiler]
Last edited by dirtybeagles on Thu Jul 21, 2016 6:42 pm, edited 8 times in total.

User avatar
dirtybeagles
Posts: 385
Joined: Thu May 05, 2016 6:04 am
Has thanked: 34 times
Been thanked: 63 times

Re: DirtyBeagles Gameboy Pi2

Post by dirtybeagles » Sun Jun 26, 2016 8:37 pm

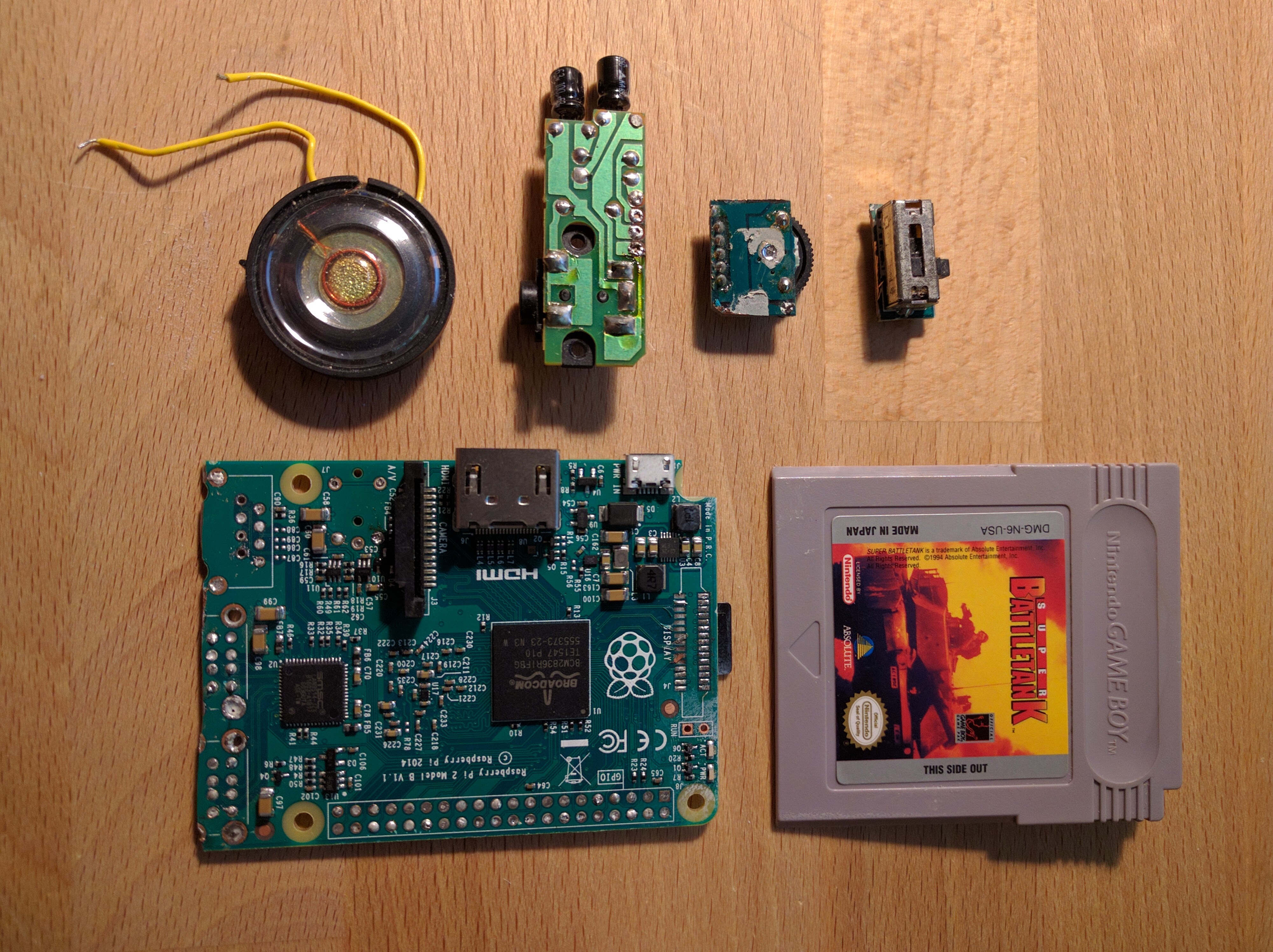

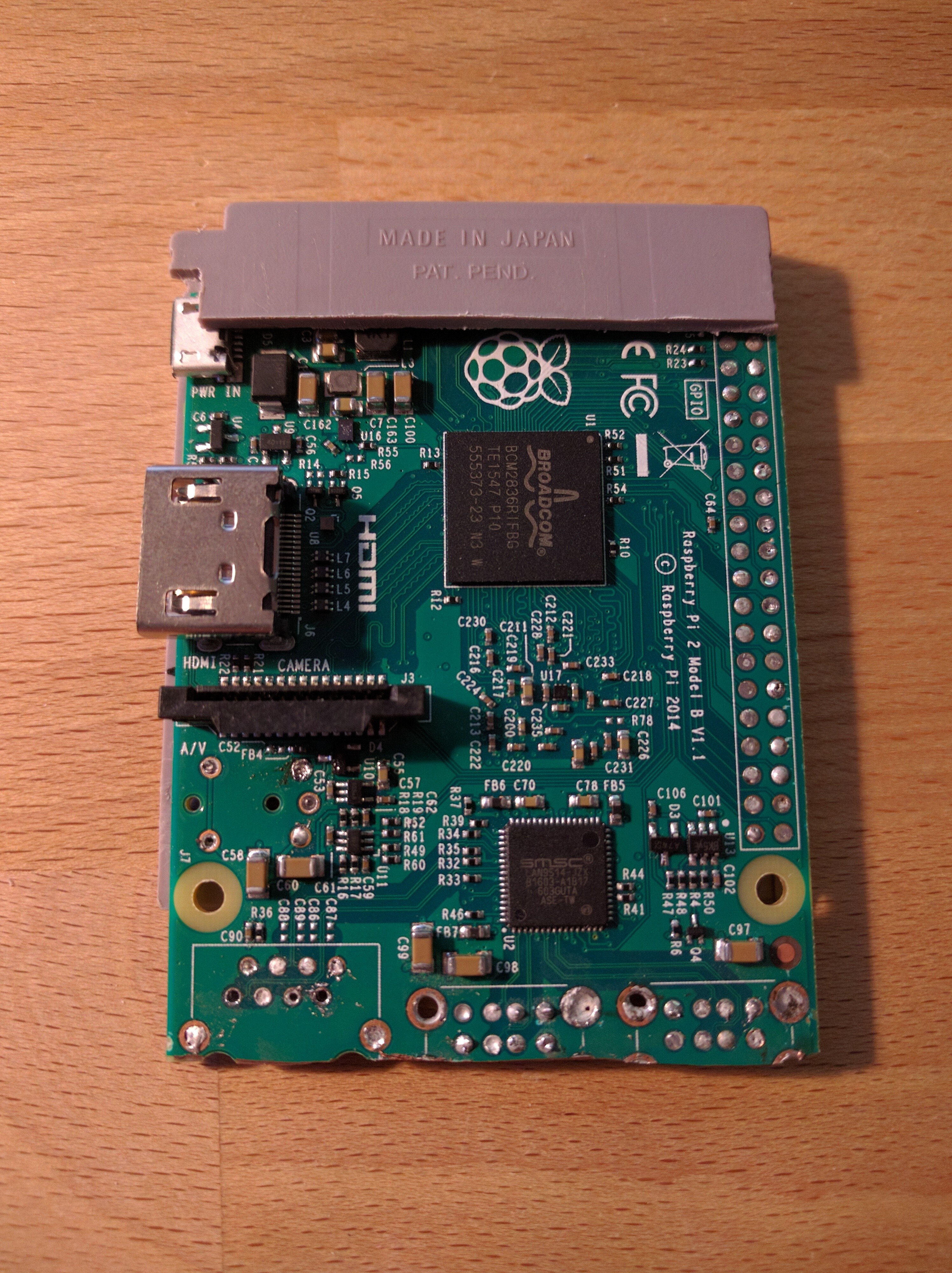

Raspberry Pi2 and other parts from original gameboy
[spoiler="Original Parts"]
[/spoiler]

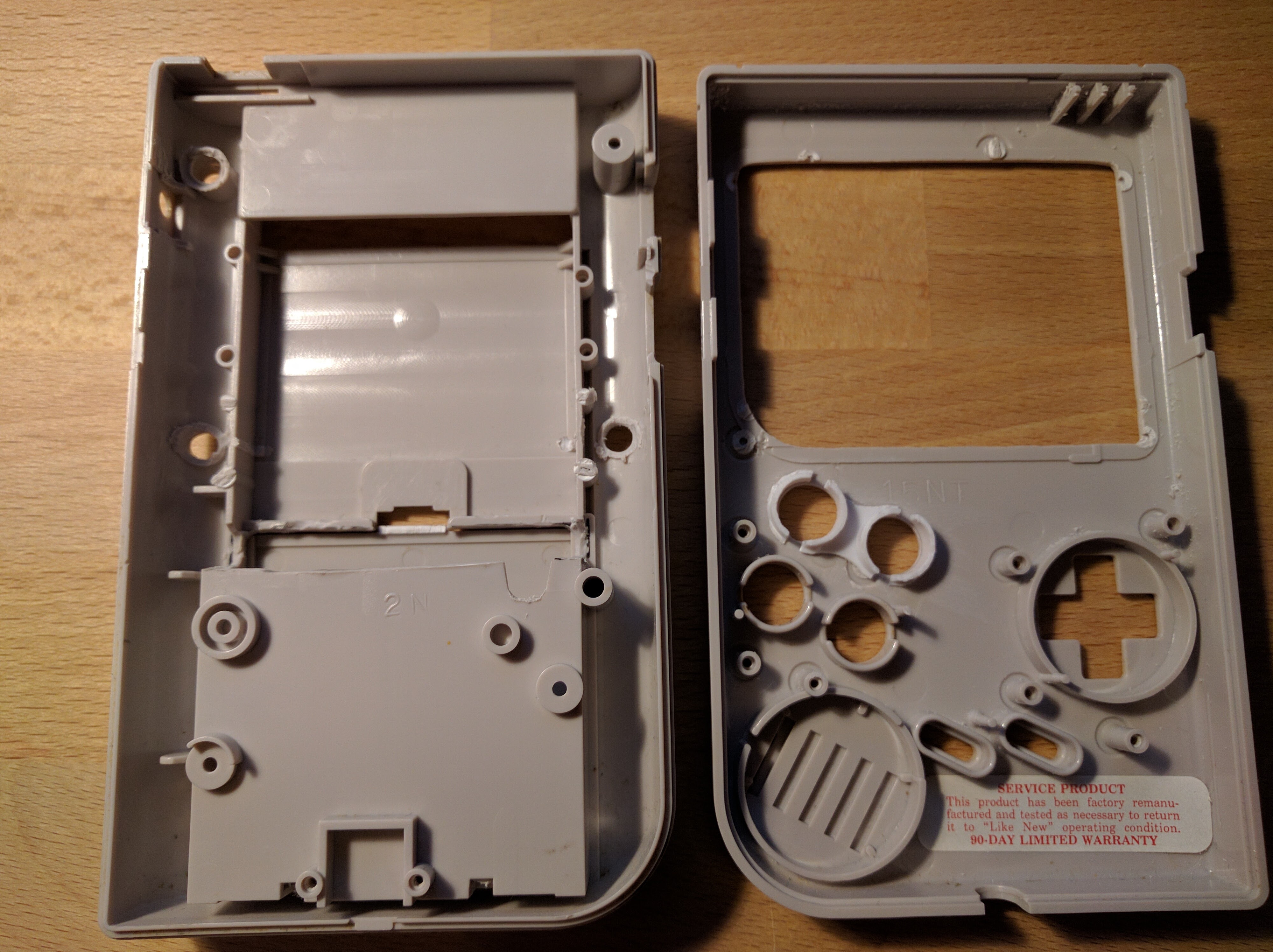

Cartridge modifications
[spoiler="Front"]
[/spoiler]
[spoiler="Back"]
[/spoiler]
Last edited by dirtybeagles on Tue Jun 28, 2016 1:40 pm, edited 4 times in total.

User avatar
dirtybeagles
Posts: 385
Joined: Thu May 05, 2016 6:04 am
Has thanked: 34 times
Been thanked: 63 times

Re: DirtyBeagles Gameboy Pi2

Post by dirtybeagles » Sun Jun 26, 2016 8:40 pm

One of things I am trying to figure out is the battery cover. Not really liking the white plastic I put there to close it because it just does not look clean. I am wondering is anyone has any ideas. I tried some magnetic tape on the edges but it was not strong enough to keep it closed. If anyone has a suggestion please let me know. I had to remove the clip from the battery cover because of the larger battery I am using.

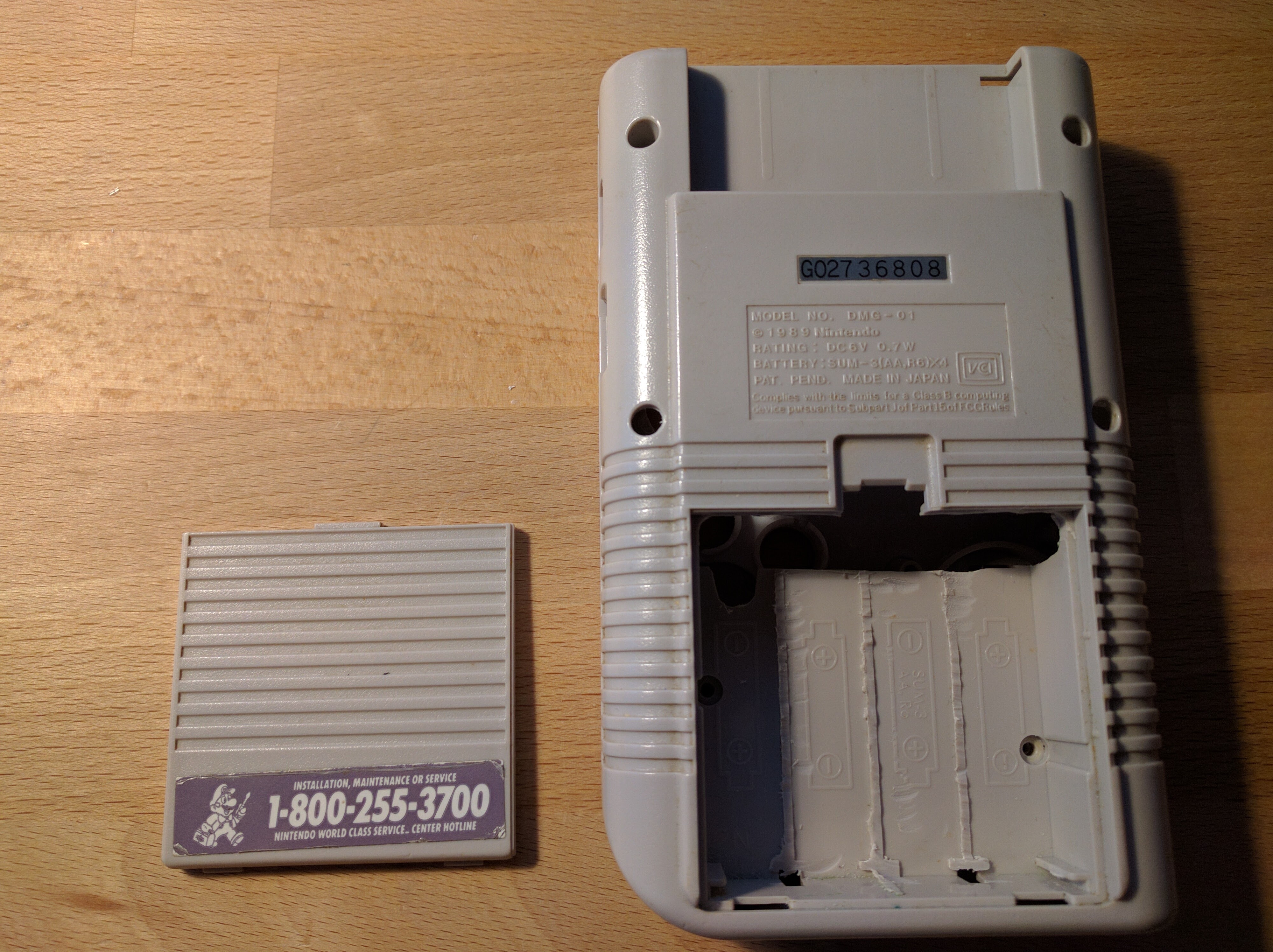

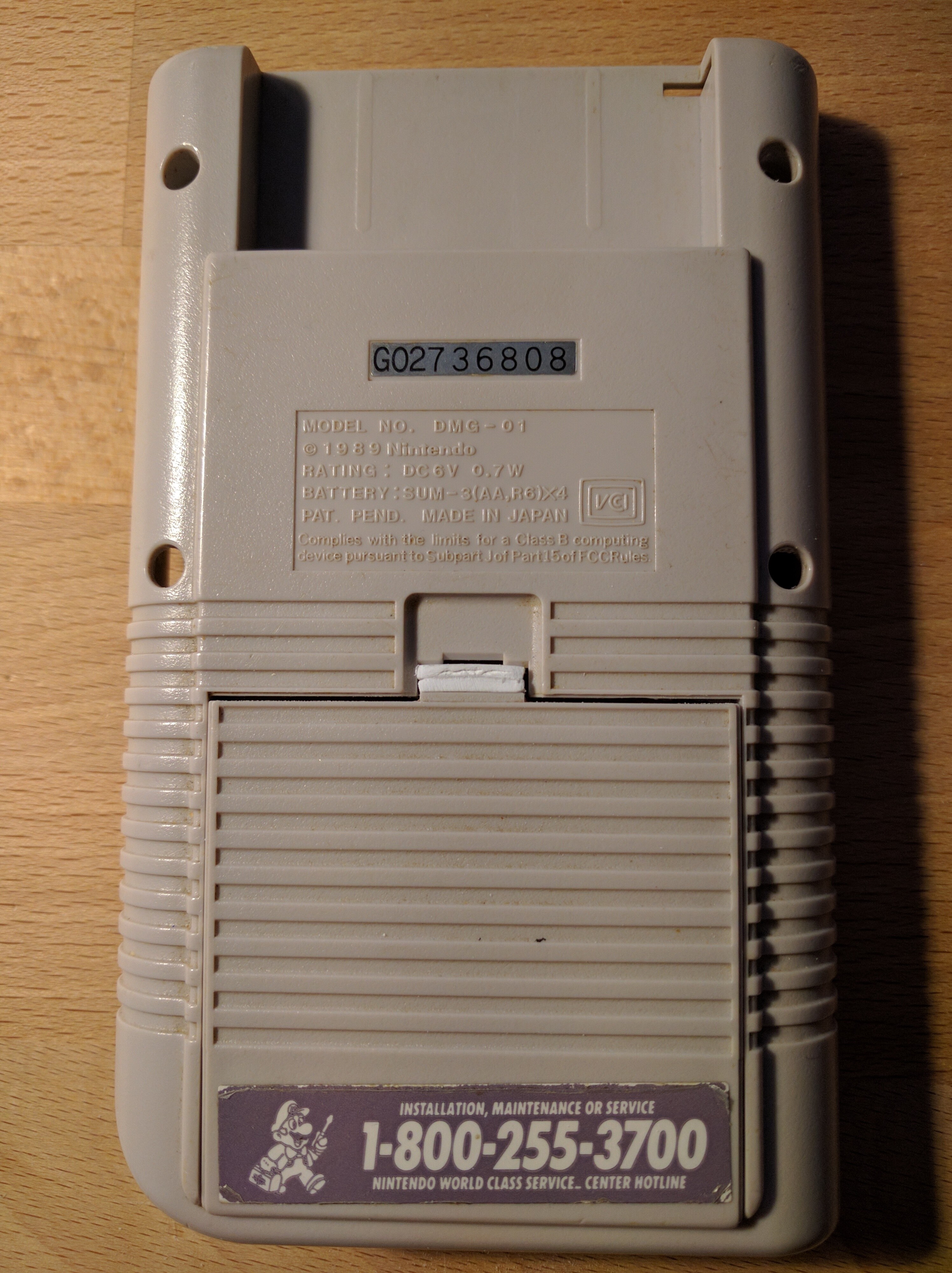

[spoiler="Back with removed battery cover latch"]
[/spoiler]
Not liking this solution:
[spoiler="Testing solution with Styrene cutout"]
[/spoiler]
Last edited by dirtybeagles on Tue Jun 28, 2016 1:40 pm, edited 3 times in total.

User avatar
Kilren
Posts: 574
Joined: Wed May 11, 2016 4:40 pm
Location: Washington, USA
Has thanked: 35 times
Been thanked: 84 times

Re: DirtyBeagles Gameboy Pi2

Post by Kilren » Mon Jun 27, 2016 4:54 pm

Looking good so far man

Hathe
Posts: 31
Joined: Thu May 05, 2016 7:40 pm
Location: Washington
Has thanked: 8 times
Been thanked: 17 times

Re: DirtyBeagles Gameboy Pi2

Post by Hathe » Mon Jun 27, 2016 8:41 pm

Just superglue it on. 1 drop here and there will hold it nicely.

User avatar
chiz
Posts: 228
Joined: Thu May 05, 2016 12:05 am
Has thanked: 29 times
Been thanked: 118 times

Re: DirtyBeagles Gameboy Pi2

Post by chiz » Mon Jun 27, 2016 9:05 pm

@dirtybeagles
I'm thinking of a more simple solution by using double adhesive foam like the ones used in 3M Command adhesive strips. See pic below. I hope you didn't throw away yet the original battery cover locking tab bec. it's needed here. Let me know how it goes. :D


User avatar
dirtybeagles
Posts: 385
Joined: Thu May 05, 2016 6:04 am
Has thanked: 34 times
Been thanked: 63 times

Re: DirtyBeagles Gameboy Pi2

Post by dirtybeagles » Tue Jun 28, 2016 8:16 pm

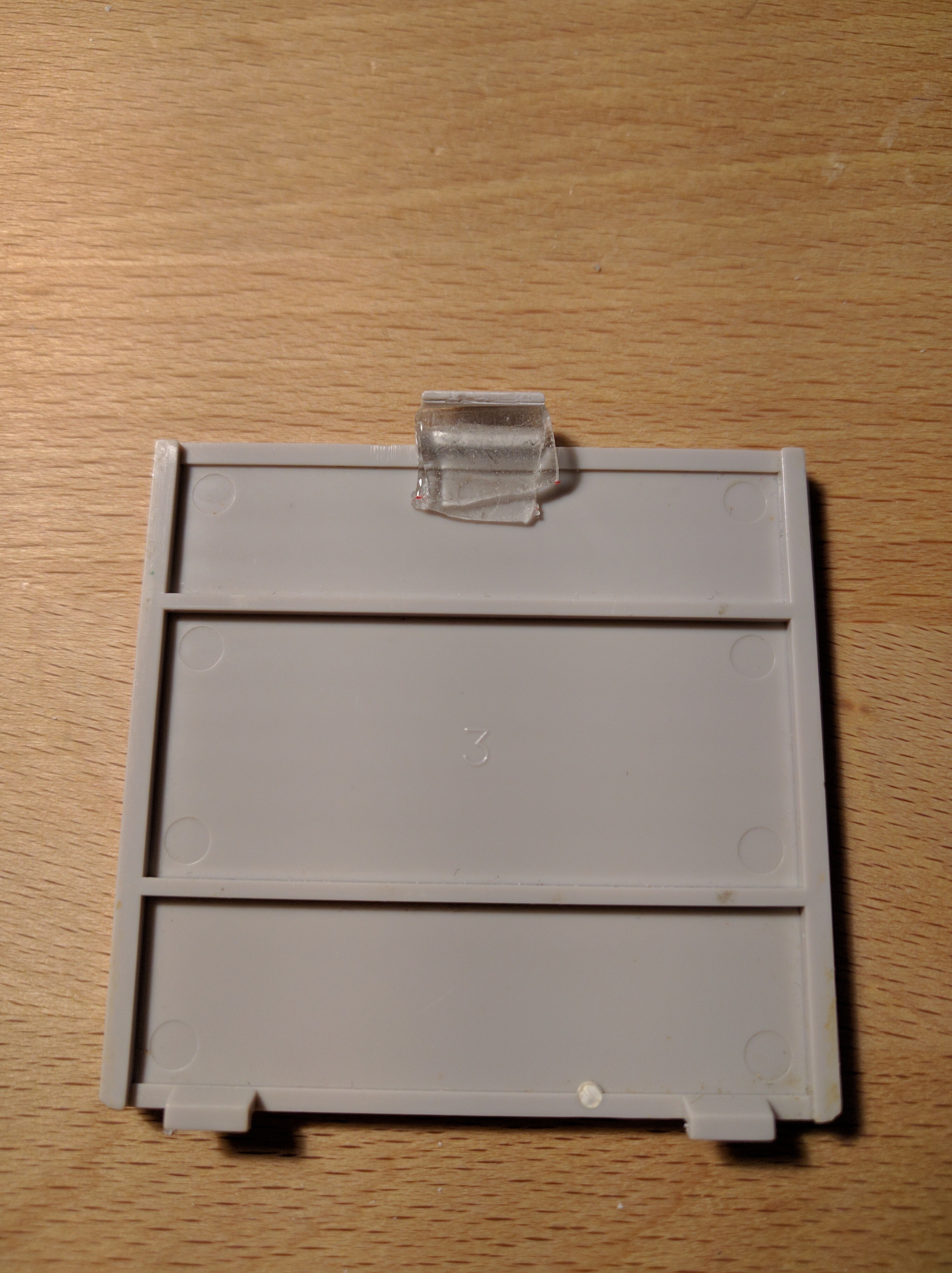

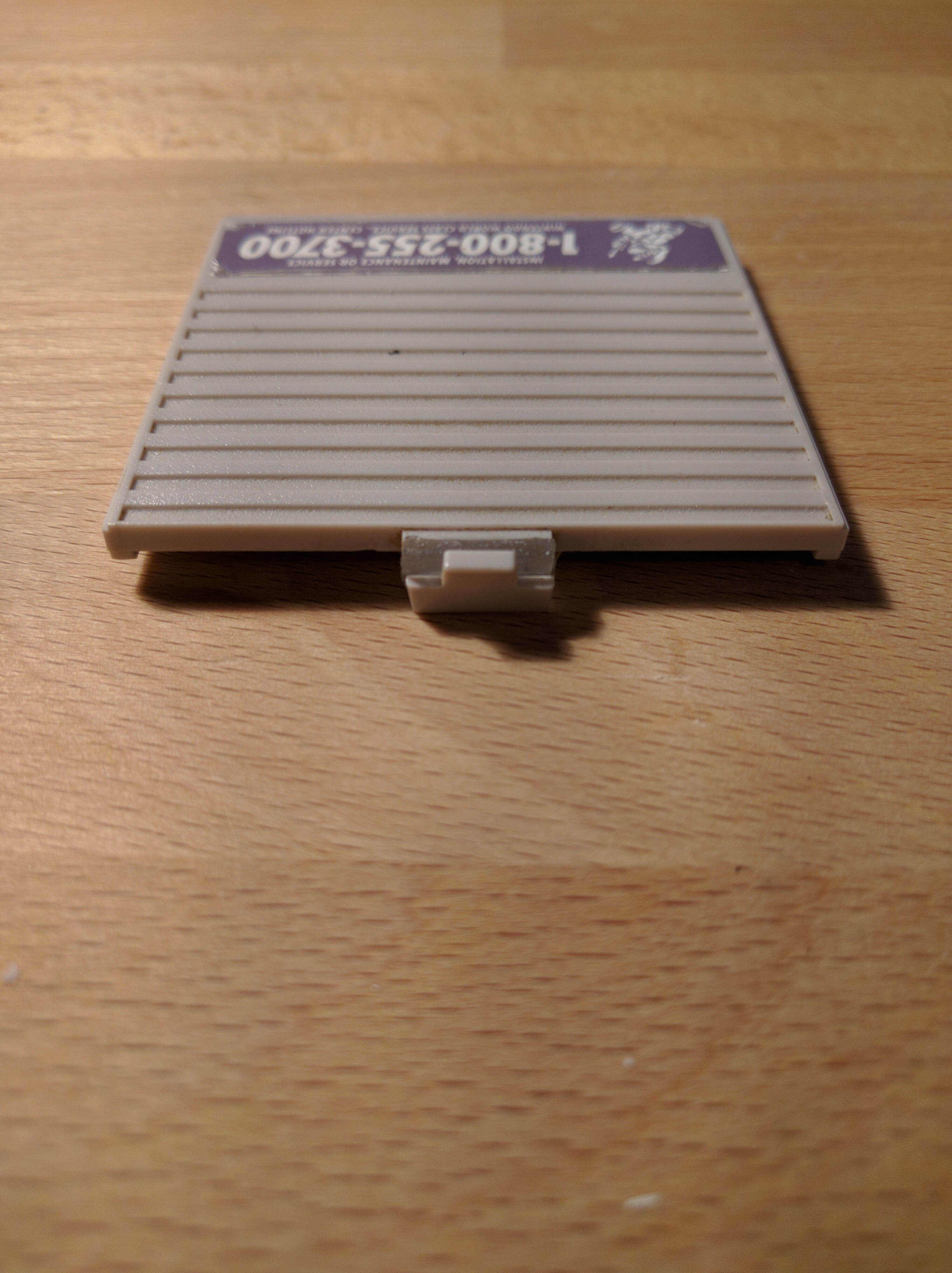

This is what I ended up with and it seems to work well. I would recommend not cutting the latch part as much as I did and using a heat gun instead to bend it around the adhesive tap. Oh well, I already cut it, but seems to hold okay.

Solution to Battery Case with having a larger battery?:
[spoiler="Back of Gameboy Case"]
[/spoiler]
[spoiler="Front of Battery Case"]
[/spoiler]
[spoiler="Back of Battery Case"]
[/spoiler]

User avatar
dirtybeagles
Posts: 385
Joined: Thu May 05, 2016 6:04 am
Has thanked: 34 times
Been thanked: 63 times

Re: DirtyBeagles Gameboy Pi2

Post by dirtybeagles » Tue Jun 28, 2016 8:25 pm

I started putting some parts together on the side because I learned from the last GBZ build that you want to make sure thing fit together nicely and I wanted to start with the small stuff like the USB, the pot, the headphone jack and see how the cables will lay so I know how to long to cut them. On my last build, I found that out the hard way and some wires were not long enough having me redo some soldering.

*For the PCB board here, a forum member named Helder makes them, but he has been sold out and will be sold out for a while I think. Just keep an eye out on his post on the Buy section: http://www.sudomod.com/forum/viewtopic.php?f=3&t=28

Replaced the metal plate with Styrene cutout

*one thing to note here that I am not sure of yet is putting the wires under the Styrene. I want a cleaner look than my last build but doing it this way may cause the wires to get too hot from the Pi2. I do have Polyimide Film Tape that I was going to wires that should help.

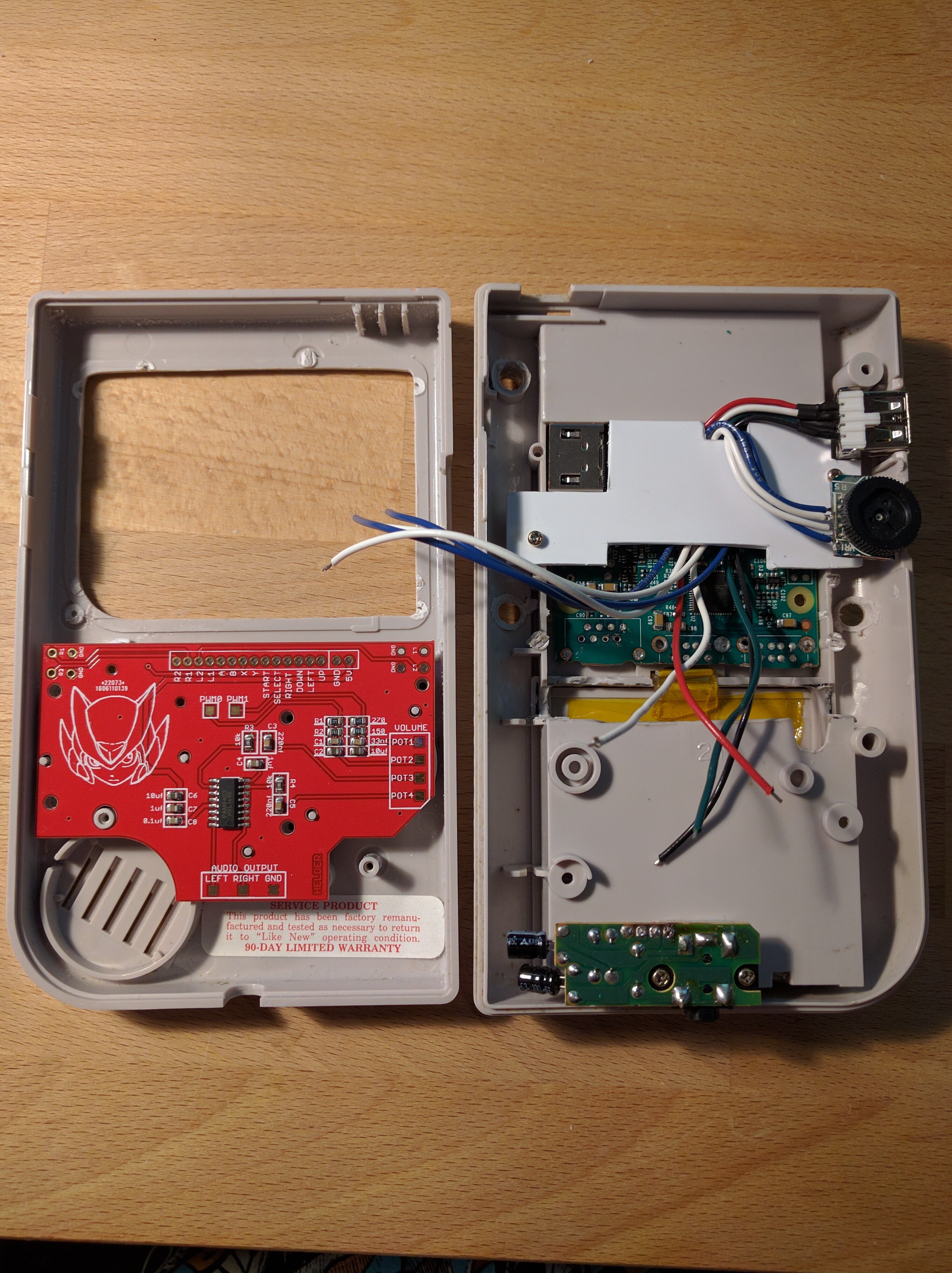

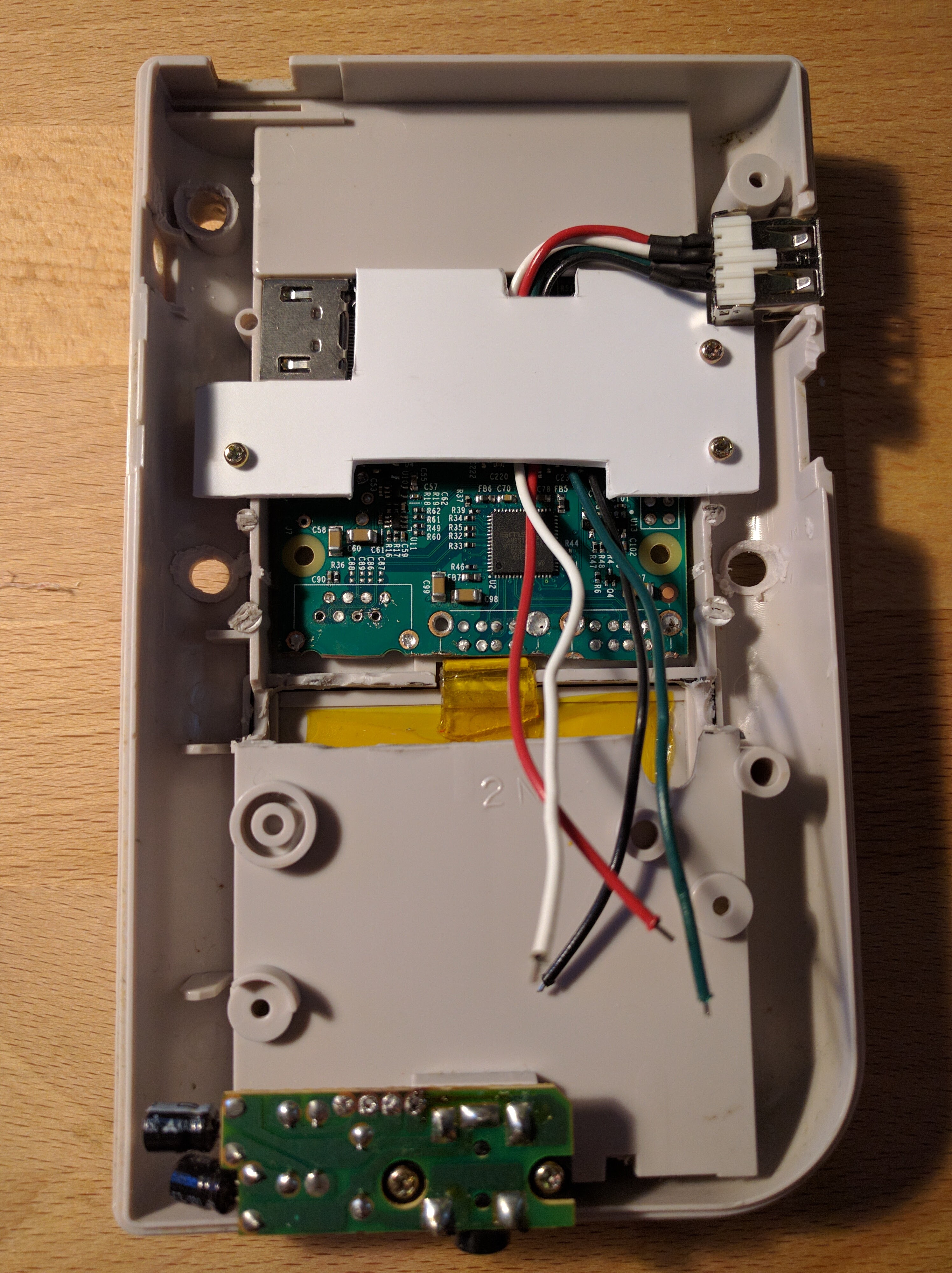

[spoiler="Styrene plate with USB"]
[/spoiler]
Added the wires for the Pot with Helder's all-in-one board:
*my Pot (gameboy volume wheel) is upside down here. I do it this way because it is easier to attach to my Styrene plate.
[spoiler="Both case parts"]
[/spoiler]

User avatar
chiz
Posts: 228
Joined: Thu May 05, 2016 12:05 am
Has thanked: 29 times
Been thanked: 118 times

Re: DirtyBeagles Gameboy Pi2

Post by chiz » Wed Jun 29, 2016 12:12 am

@dirtybeagles
So, did you use the foam adhesive as I suggested or a different approach? That translucent thingy that you used doesn't seem to be foam and very neat-looking for hot glue. :?:

User avatar
dirtybeagles
Posts: 385
Joined: Thu May 05, 2016 6:04 am
Has thanked: 34 times
Been thanked: 63 times

Re: DirtyBeagles Gameboy Pi2

Post by dirtybeagles » Wed Jun 29, 2016 4:21 am

chiz wrote:@dirtybeagles
So, did you use the foam adhesive as I suggested or a different approach?
I used 3M mounting tap for Windows. No foam.

Post Reply
