Hey guys,
I‘m trying to assemble the batteryindicator by using a MCP3008 and the guide provided here in the forum.
Now that I build in the MCP3008 and modifiyed retropie by using Putty and WinSCP, i got following issue:
When I run python main.py in Putty
ADC Value is detected but it doesn‘t say „changed battery Icon to ...“ also if I run retropie the battery icon isn‘t displayed.

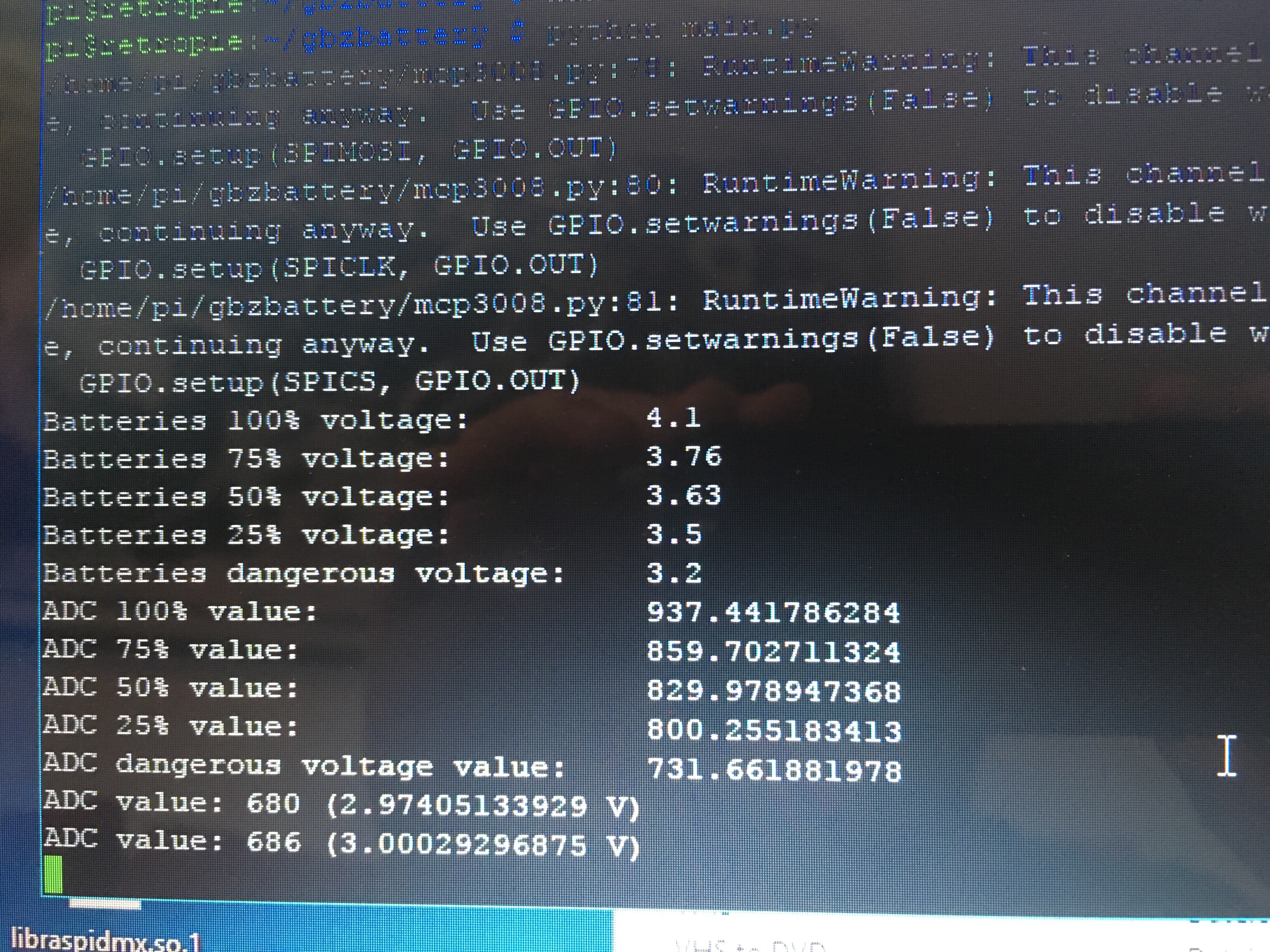

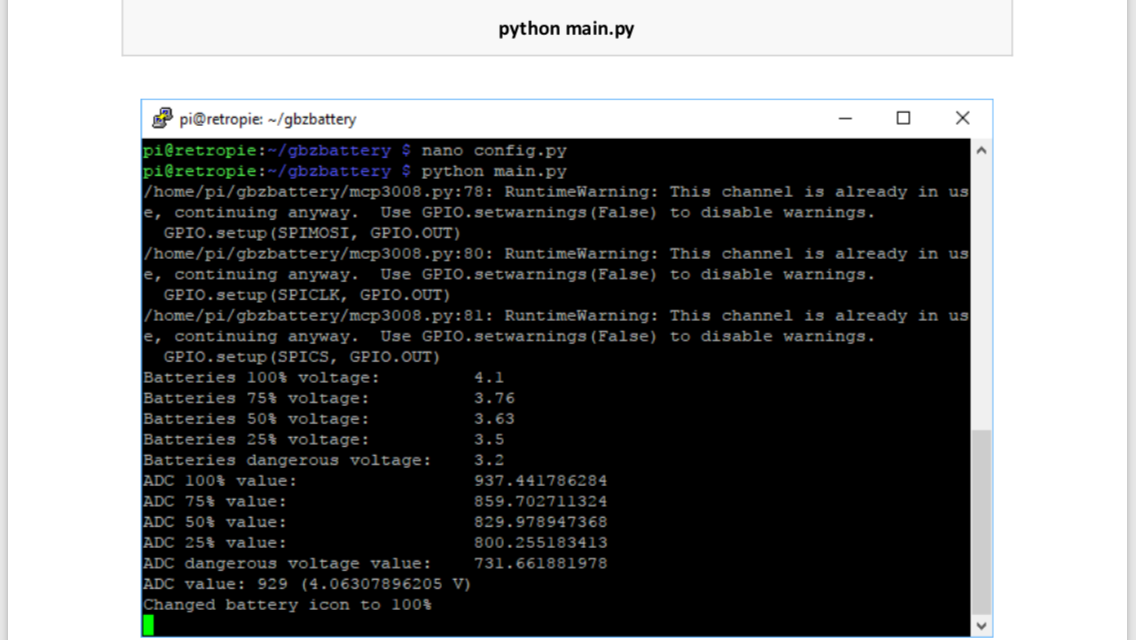

I add a screenshot of where I think the problem is located and one from the instruction how it should be.
Thanks in advance from a big fan from Germany!
DonZock
Batteryindicator Problems.
Batteryindicator Problems.
- Attachments
-
- 1F52E316-8B2C-4E00-8146-2BB4AEFDE407.png (260.73 KiB) Viewed 2063 times
-
- 06ED0481-4AE5-41EF-9003-2E766F84C3E4.jpeg (3.6 MiB) Viewed 2063 times
-
- Posts: 128
- Joined: Sat Sep 09, 2017 6:06 am
- Location: Germany
- Has thanked: 60 times
- Been thanked: 37 times
Re: Batteryindicator Problems.
Did you use: https://github.com/joachimvenaas/gbzbatterymonitor?
Did you install pngview (https://github.com/AndrewFromMelbourne/ ... er/pngview)? pngview is used by the main.py script to display the battery indicator osd.
Did you install pngview (https://github.com/AndrewFromMelbourne/ ... er/pngview)? pngview is used by the main.py script to display the battery indicator osd.
