Kites CS cm3 psp joystick

[Defect02]

All right guys so this is my first build and also first anything to do with soldering. I got down the soldering part and everything only problem is i thought i was smart with the way i was routing the wires and ended up not being able to close my gameboy up. Now the wires are too short to route them a different way. Can anyone link me to the proper 4 pin jst connector for the circuit sword? Would be much appreciated.

[Defect02]

No help?

[DieselDummy]

Post a photo of what you are talking about. Which way did you route the wires? Is the harness still attached to the joystick?

[Defect02]

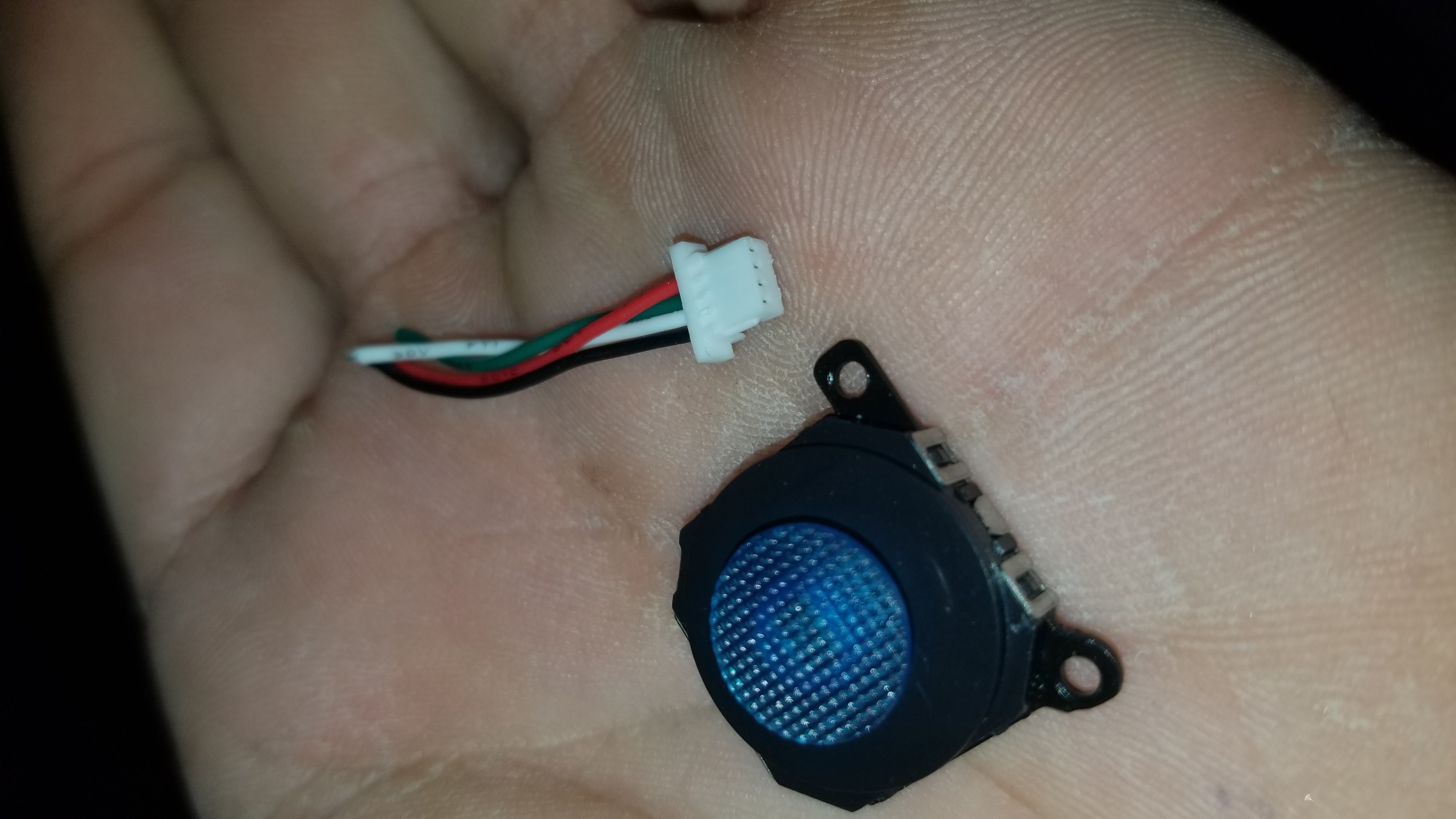

This is the connector I need


[Defect02]

So the wires are not connected I desoldered them, and I tried to route it through one of the holes on the kites PCB which doesn't work because the wires lift the PCB too high and doesn't allow the case to close properly I know where to route them now I just need a new connector

[Phiro13]

You can buy these on eBay or AliExpress. Just Look after jst 1.0 4pin.

[Defect02]

You can buy these on eBay or AliExpress. Just Look after jst 1.0 4pin.

thanks man this is what I wanted to know!!!! Thanks for the help!
