LCD flickering and blurry.
When retropie is booted up on my gameboy zero the screen text is very fuzzy to the point where it is almost completely unreadable. Was wondering if there was a way to improve this.
- Attachments
-

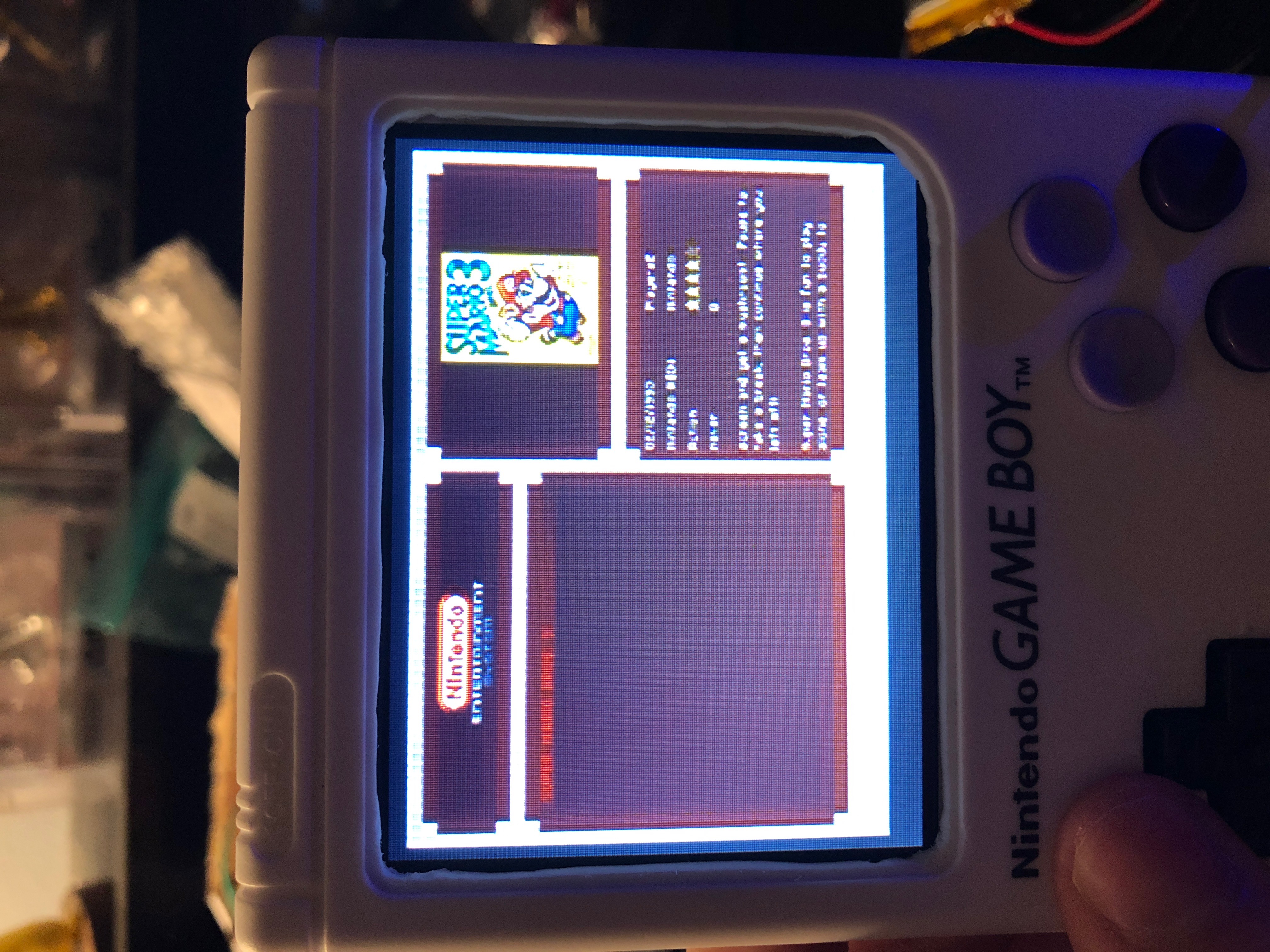

- Gameboy Screen
- IMG_0318.jpeg (3.04 MiB) Viewed 2723 times
-

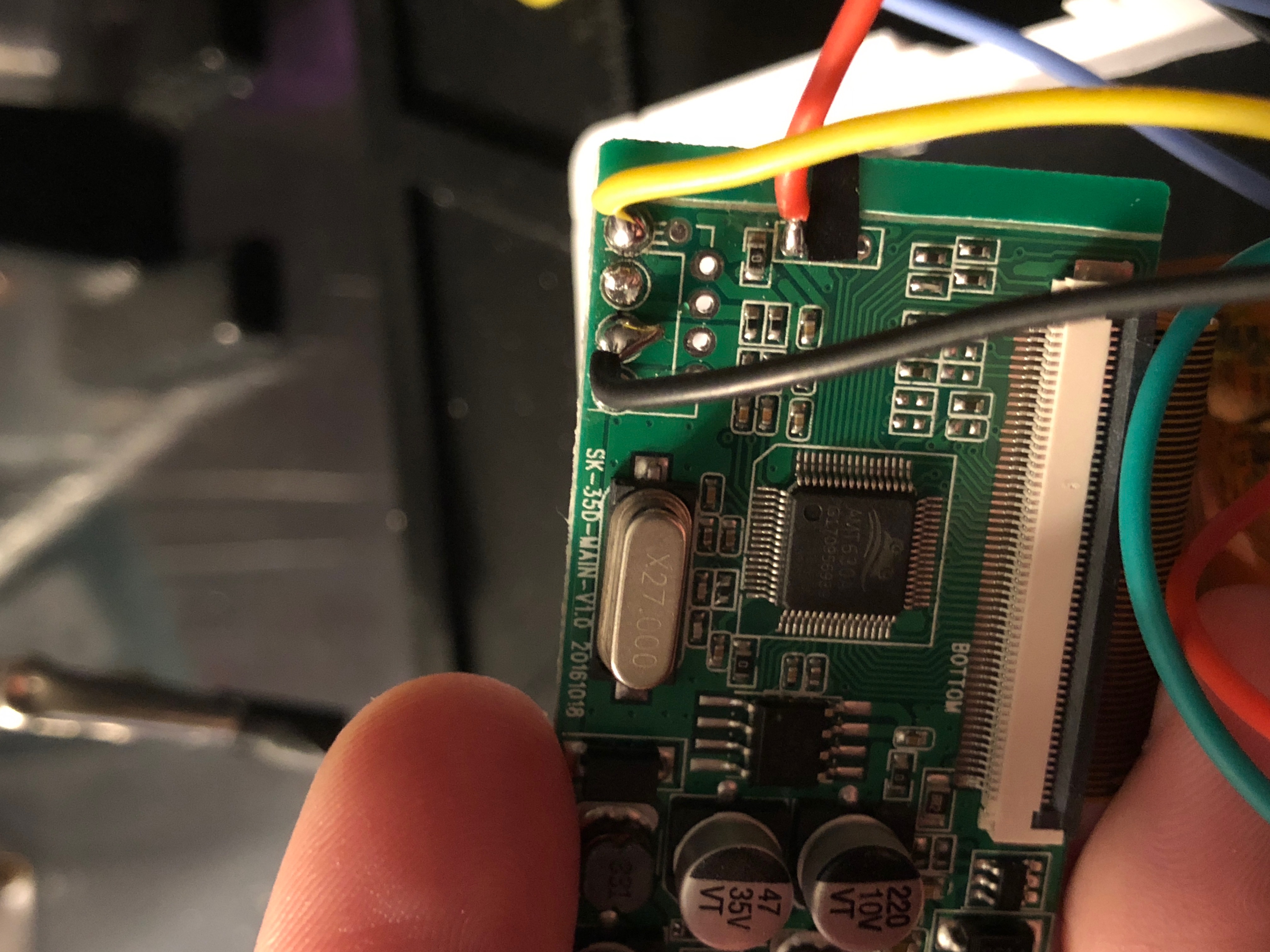

- LCD Board Picture
- IMG_0317.jpeg (1.74 MiB) Viewed 2723 times
- Lphillimore
- Posts: 993
- Joined: Sat Jan 07, 2017 7:03 pm
- Location: Perth, WA
- Has thanked: 796 times
- Been thanked: 527 times
Re: LCD flickering and blurry.
Looks ok for a composite screen to me. Any more pics of the post boot ? The resolution of composite screens has a hard time handling the small font. Try AJ Redfearns 3.5' themes for comparison, specifically designed to help with legibility on composite screens.
mintyPi Giveaway [CLOSED]:
http://www.sudomod.com/forum/viewtopic.php?f=38&t=3456
Builds:
GBZ
http://www.sudomod.com/forum/viewtopic.php?f=9&t=2838
mintyPi
http://www.sudomod.com/forum/viewtopic.php?f=32&t=3468
Kite SAIO
http://www.sudomod.com/forum/viewtopic.php?f=9&t=3075
Dreamcast VMU
https://sudomod.com/forum/viewtopic.php ... 133#p62133
http://www.sudomod.com/forum/viewtopic.php?f=38&t=3456
Builds:
GBZ
http://www.sudomod.com/forum/viewtopic.php?f=9&t=2838
mintyPi
http://www.sudomod.com/forum/viewtopic.php?f=32&t=3468
Kite SAIO
http://www.sudomod.com/forum/viewtopic.php?f=9&t=3075
Dreamcast VMU
https://sudomod.com/forum/viewtopic.php ... 133#p62133
- Lphillimore
- Posts: 993
- Joined: Sat Jan 07, 2017 7:03 pm
- Location: Perth, WA
- Has thanked: 796 times
- Been thanked: 527 times
Re: LCD flickering and blurry.
That said it shouldn't flicker. Ensure your video cable is grounded as its prone to interference.
mintyPi Giveaway [CLOSED]:
http://www.sudomod.com/forum/viewtopic.php?f=38&t=3456
Builds:
GBZ
http://www.sudomod.com/forum/viewtopic.php?f=9&t=2838
mintyPi
http://www.sudomod.com/forum/viewtopic.php?f=32&t=3468
Kite SAIO
http://www.sudomod.com/forum/viewtopic.php?f=9&t=3075
Dreamcast VMU
https://sudomod.com/forum/viewtopic.php ... 133#p62133
http://www.sudomod.com/forum/viewtopic.php?f=38&t=3456
Builds:
GBZ
http://www.sudomod.com/forum/viewtopic.php?f=9&t=2838
mintyPi
http://www.sudomod.com/forum/viewtopic.php?f=32&t=3468
Kite SAIO
http://www.sudomod.com/forum/viewtopic.php?f=9&t=3075
Dreamcast VMU
https://sudomod.com/forum/viewtopic.php ... 133#p62133
Re: LCD flickering and blurry.
Flickering could be a low voltage/amperage thing. Had that problem when testing with a 500mA USB charger sans battery. Also it's recommended to ground to a contact on the Pi close to the video output to prevent interference, keep them as short as possible.
