SD cartridge reader

Post by winnetouch » Fri Jan 18, 2019 4:52 pm

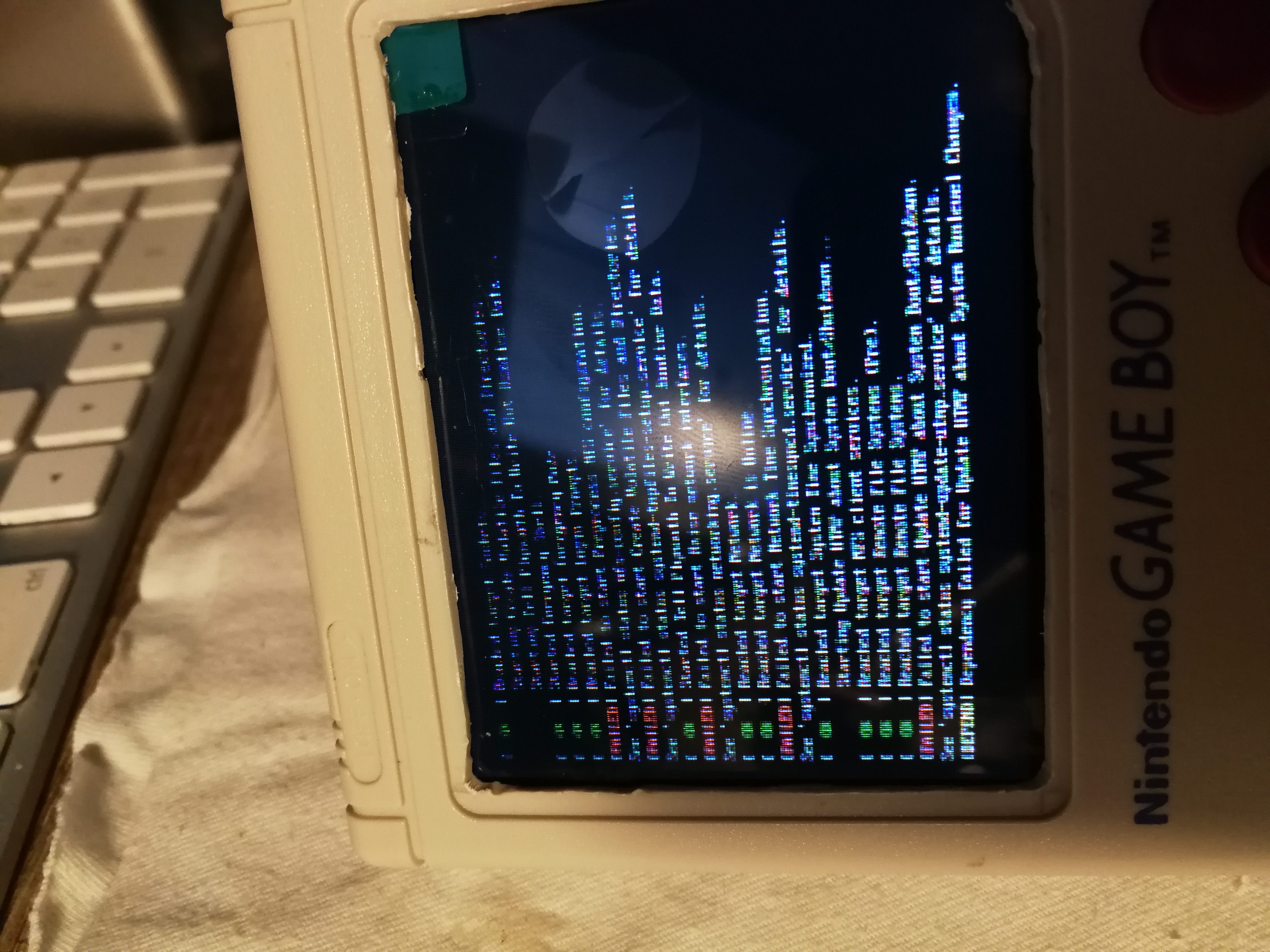

I'm trying to configure a gameboy cartridge that acts as an SD card reader (like wermy originaly did) but all i keep getting is error messages on boot up. I tested for continuity so everything should work. What could be the problem?

P. S. Yes I'm doing it don't try to talk me out of it, I have my reasons ;).

User avatar
correia5022
Posts: 202
Joined: Mon Dec 05, 2016 12:32 am
Location: Portugal
Has thanked: 17 times
Been thanked: 38 times

Re: SD cartridge reader

Post by correia5022 » Fri Jan 18, 2019 6:58 pm

Hi.
Probably is best you upload some pictures of the wiring.
Maybe lack of filtering? Thick wires?
But as i said, pictures would help...
________________________________________
Starting on electronics :)
My first build, 2 years later
https://sudomod.com/forum/viewtopic.php ... 8&start=30
Check out my Boombox: https://nrcboombox.wixsite.com/website

User avatar
tinkerBOY
Posts: 692
Joined: Tue May 30, 2017 4:00 am
Has thanked: 291 times
Been thanked: 195 times

Re: SD cartridge reader

Post by tinkerBOY » Fri Jan 18, 2019 9:38 pm

Try making the wires as short as possible. You may also need to add decoupling capacitor between the power and gnd.
New! tinkerBOY PowerSwitch v1.0 with Safe Shutdown
Game Boy Zero Controllers available @ tinkerBOY.xyz
tinkerBOY Controller v3.0 - built-in usb controller, usb audio, and usb hub
tinkerBOY Controller v2.0 - GPIO buttons and builtin PWM Audio and Amplifier
tinkerBOY Controller v1.1 - simple pcb button
* DPI Adapter - better display for GBZ
* keyboard converters - IBM XT/AT Soarer's Converter | ADB to USB Converter

User avatar
winnetouch
Posts: 153
Joined: Mon Jul 11, 2016 10:56 am
Has thanked: 2 times
Been thanked: 30 times

Re: SD cartridge reader

Post by winnetouch » Wed Jan 23, 2019 3:43 pm

I tried with the capacitor before, didn't really change a thing.

Now I tried shortening the wires between the reader and the PI but at this moment all I get is the rainbow screen.
the setupShow

User avatar
tinkerBOY
Posts: 692
Joined: Tue May 30, 2017 4:00 am
Has thanked: 291 times
Been thanked: 195 times

Re: SD cartridge reader

Post by tinkerBOY » Wed Jan 23, 2019 4:37 pm

How about a different sdcard with new installation?
New! tinkerBOY PowerSwitch v1.0 with Safe Shutdown
Game Boy Zero Controllers available @ tinkerBOY.xyz
tinkerBOY Controller v3.0 - built-in usb controller, usb audio, and usb hub
tinkerBOY Controller v2.0 - GPIO buttons and builtin PWM Audio and Amplifier
tinkerBOY Controller v1.1 - simple pcb button
* DPI Adapter - better display for GBZ
* keyboard converters - IBM XT/AT Soarer's Converter | ADB to USB Converter

User avatar
winnetouch
Posts: 153
Joined: Mon Jul 11, 2016 10:56 am
Has thanked: 2 times
Been thanked: 30 times

Re: SD cartridge reader

Post by winnetouch » Wed Jan 23, 2019 11:05 pm

The instalation is fine. I tested it on another RPi zero.

McGyver
Posts: 213
Joined: Tue Jan 31, 2017 11:06 am
Location: Tianjin / China
Has thanked: 23 times
Been thanked: 50 times

Re: SD cartridge reader

Post by McGyver » Thu Jan 24, 2019 3:49 am

This does not help you, just my experience:
I did this MOD as well and the bootup worked sometimes. This prooves the right wiring and function in general.

I discharged this MOD finally because I did not saw anymore possible improvements in my wiring.
In addition I wanted to overclock the SD card later on to 100MHz which would never work with this laggy MOD.

This MOD is quite laggy at all, maybe try another SD Card.

User avatar
winnetouch
Posts: 153
Joined: Mon Jul 11, 2016 10:56 am
Has thanked: 2 times
Been thanked: 30 times

Re: SD cartridge reader

Post by winnetouch » Fri Jan 25, 2019 9:27 am

Still working at it. What kind of wire do you guys use for this? Is it OK to use thiner wire like the ones in USB cables or is it better to use a thicker wire?

McGyver
Posts: 213
Joined: Tue Jan 31, 2017 11:06 am
Location: Tianjin / China
Has thanked: 23 times
Been thanked: 50 times

Re: SD cartridge reader

Post by McGyver » Sat Jan 26, 2019 6:27 am

Thinner should be fine since there is no power consumption from sd card. I guess any fault is caused by interferience. Maybe shild in any means could help and of course wires as short as possible. And a stable power supply. This is the reason for the capapcitor betwenn power and ground very close to the sd card.
