So I’ve got most of my GBZ sorted but.. I cannot understand why my PowerBoost 1000C isn’t running my Pi Zero and 3.5 inch screen?
I am running a 3.7v lipo with the Power Boost. But regardless if the lipo is attached or not... when the 5v USB lead is connected to the PowerBoost and I turn it on I just get constant Pi and Screen restarts... like there’s power issues but I can’t see the problem?

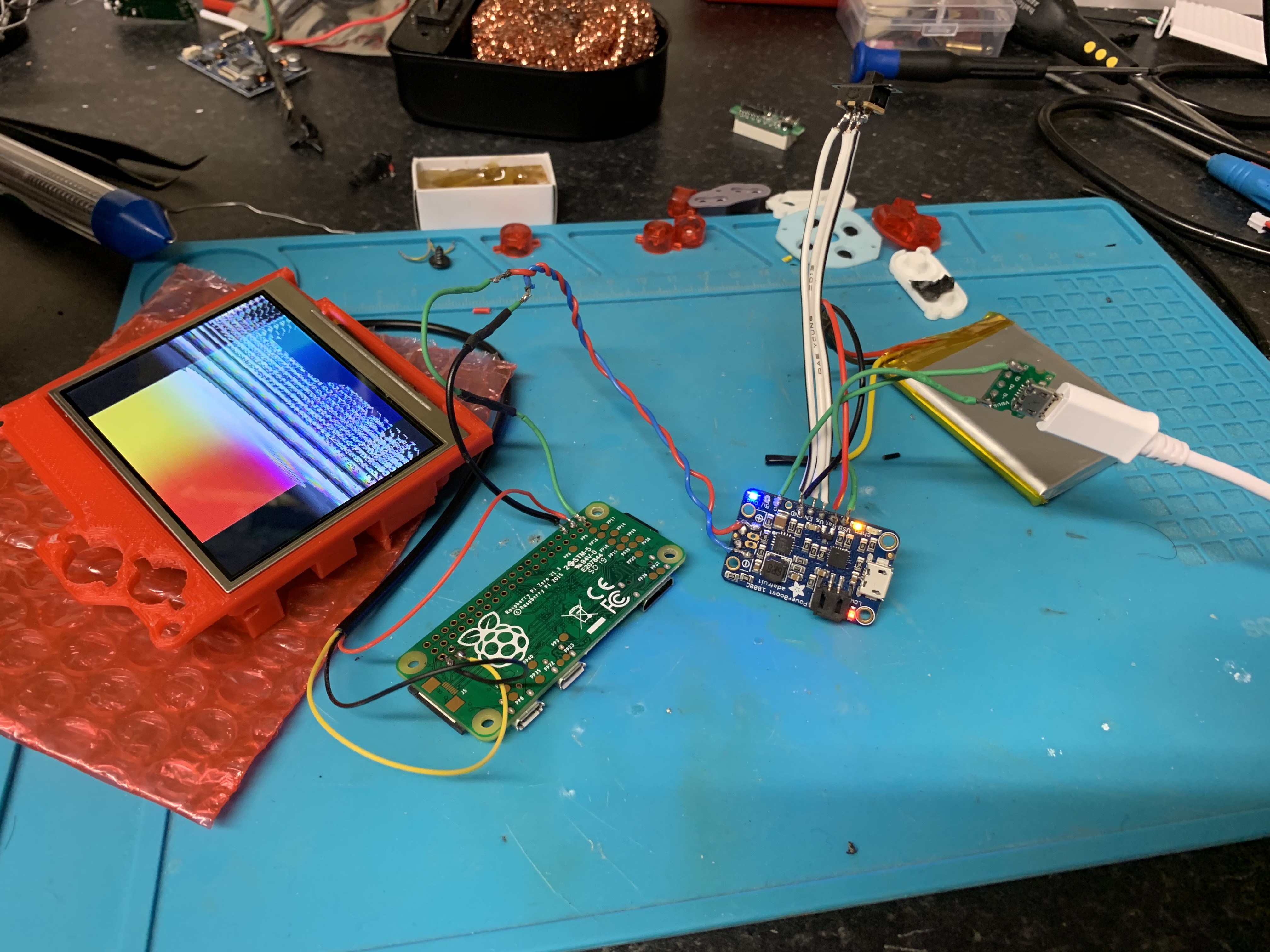

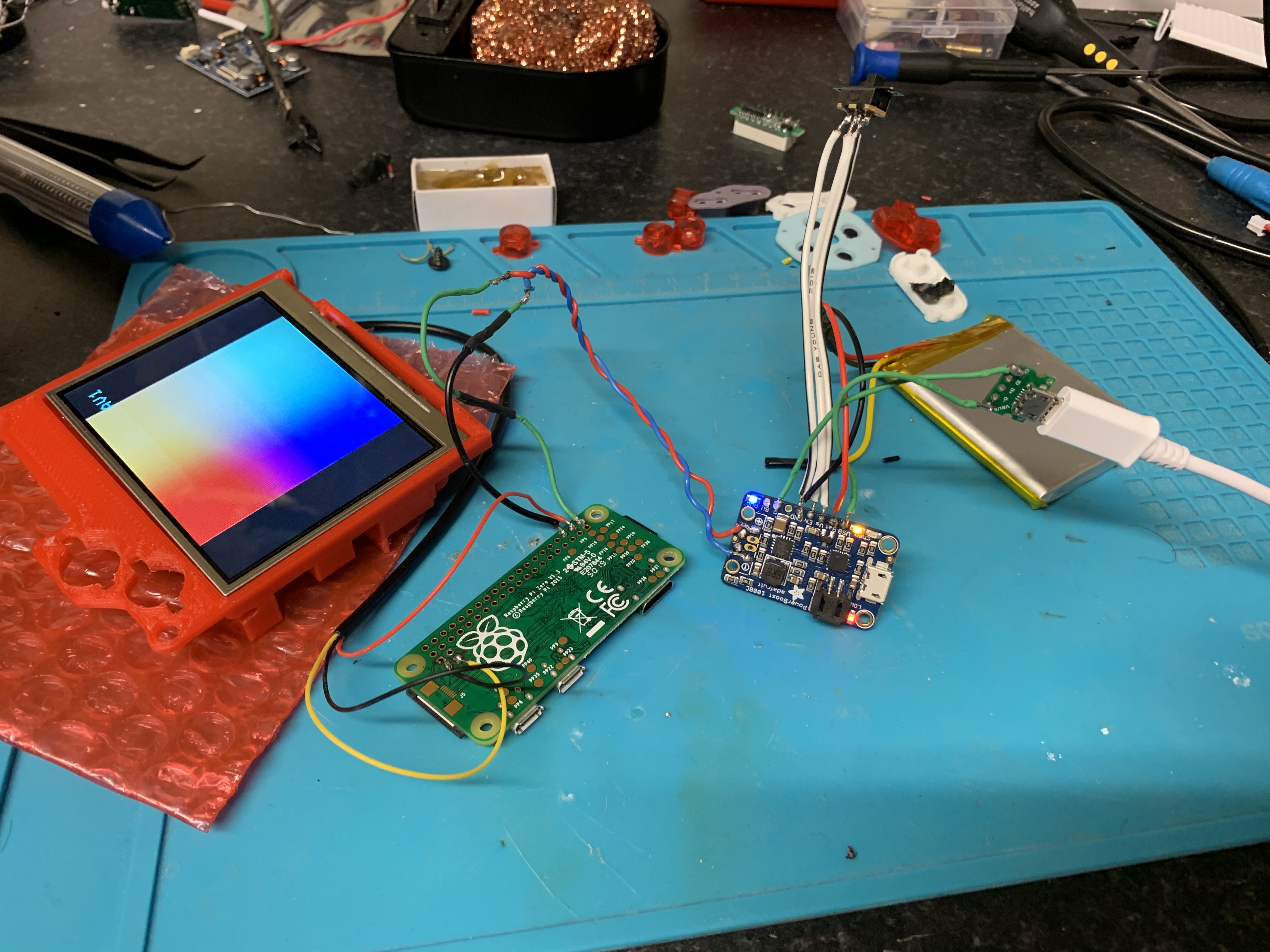

I have attached pics and a video of the issue. Any help would be awesome as I can’t continue to finish the build until I know this is working.
Thanks in advance all!
Video Link:
https://s14.photobucket.com/user/BigDa ... B.mp4.html
Power issues...
- gamer.welshnut
- Posts: 11
- Joined: Wed Jan 01, 2020 2:41 pm
- Has thanked: 9 times
- Been thanked: 2 times
- Contact:
Power issues...
- Attachments
-
- EF83EA4F-26AD-4F18-8A0E-5F2CF7BFF13D.jpeg (2.49 MiB) Viewed 3636 times
-
- 089DC037-FF3A-431E-8631-82E2DFC41676.jpeg (2.51 MiB) Viewed 3636 times
- rodocop
- Posts: 1723
- Joined: Mon Aug 22, 2016 3:14 pm
- Location: Saskatchewan
- Has thanked: 606 times
- Been thanked: 608 times
Re: Power issues...
I would remove the VS pin from the switch. No reason to have that attached at all. Only wire EN and GND to the switch. Not sure of that would cause any issues.
You could also try to solder the powerboost output to the pi pp6 (gnd) and pp1 (5v) instead of the GPIO's.
You could also try to solder the powerboost output to the pi pp6 (gnd) and pp1 (5v) instead of the GPIO's.
_____________________________________________________
My Minty Pi builds:
http://www.sudomod.com/forum/viewtopic.php?f=32&t=3628
My GBZ builds:
http://www.sudomod.com/forum/viewtopic. ... 813#p50813
My modded DMG-01's:
http://www.sudomod.com/forum/viewtopic.php?f=13&t=2696
My NESpi:
http://www.sudomod.com/forum/viewtopic.php?f=13&t=2941
My Gaboze Pocaio's
https://sudomod.com/forum/viewtopic.php?f=13&t=6063
My Minty Pi builds:
http://www.sudomod.com/forum/viewtopic.php?f=32&t=3628
My GBZ builds:
http://www.sudomod.com/forum/viewtopic. ... 813#p50813
My modded DMG-01's:
http://www.sudomod.com/forum/viewtopic.php?f=13&t=2696
My NESpi:
http://www.sudomod.com/forum/viewtopic.php?f=13&t=2941
My Gaboze Pocaio's
https://sudomod.com/forum/viewtopic.php?f=13&t=6063
- rodocop
- Posts: 1723
- Joined: Mon Aug 22, 2016 3:14 pm
- Location: Saskatchewan
- Has thanked: 606 times
- Been thanked: 608 times
Re: Power issues...
Alos those spliced wires...blue/red going to green/green don't look that great. Maybe address that. Or just solder the blue/red to the pi rather than splicing them.
_____________________________________________________
My Minty Pi builds:
http://www.sudomod.com/forum/viewtopic.php?f=32&t=3628
My GBZ builds:
http://www.sudomod.com/forum/viewtopic. ... 813#p50813
My modded DMG-01's:
http://www.sudomod.com/forum/viewtopic.php?f=13&t=2696
My NESpi:
http://www.sudomod.com/forum/viewtopic.php?f=13&t=2941
My Gaboze Pocaio's
https://sudomod.com/forum/viewtopic.php?f=13&t=6063
My Minty Pi builds:
http://www.sudomod.com/forum/viewtopic.php?f=32&t=3628
My GBZ builds:
http://www.sudomod.com/forum/viewtopic. ... 813#p50813
My modded DMG-01's:
http://www.sudomod.com/forum/viewtopic.php?f=13&t=2696
My NESpi:
http://www.sudomod.com/forum/viewtopic.php?f=13&t=2941
My Gaboze Pocaio's
https://sudomod.com/forum/viewtopic.php?f=13&t=6063
- gamer.welshnut
- Posts: 11
- Joined: Wed Jan 01, 2020 2:41 pm
- Has thanked: 9 times
- Been thanked: 2 times
- Contact:
Re: Power issues...
Okay man nice one I’ll give a go! And yeah the wiring as they are is a temporary thing. Will tidy it all up once I get it all workingrodocop wrote: ↑Sat Jun 13, 2020 8:31 pmI would remove the VS pin from the switch. No reason to have that attached at all. Only wire EN and GND to the switch. Not sure of that would cause any issues.
You could also try to solder the powerboost output to the pi pp6 (gnd) and pp1 (5v) instead of the GPIO's.
- gamer.welshnut
- Posts: 11
- Joined: Wed Jan 01, 2020 2:41 pm
- Has thanked: 9 times
- Been thanked: 2 times
- Contact:
-
- Posts: 51
- Joined: Sat Jul 13, 2019 12:08 pm
- Has thanked: 1 time
- Been thanked: 11 times
Re: Power issues...
Have you checked the connections with a multimeter to check the pi and screen are getting 5V?
Failing that, have you tried another Microsd card and a different image?
Failing that, have you tried another Microsd card and a different image?
- gamer.welshnut
- Posts: 11
- Joined: Wed Jan 01, 2020 2:41 pm
- Has thanked: 9 times
- Been thanked: 2 times
- Contact:
Re: Power issues...
I’ve actually fixed the problem now
I stopped using the power boost as it just seems not to work. So I’m not using a 5v Regulator board attached to a lipo charging board.
And it works a treat! Thank you for your replies tho!
I stopped using the power boost as it just seems not to work. So I’m not using a 5v Regulator board attached to a lipo charging board.
And it works a treat! Thank you for your replies tho!
