Audiovox 3.5 Screen

Post by EchoFightr » Thu Sep 14, 2017 8:39 pm

Hi,

I picked up a 3.5-inch screen for a really good price. The only down side is I am not sure where to put the jumper wire to get it work at 5 volts. The model of the board is TM035C-1612-V3.

Any help would be greatly appreciated.


User avatar
jb32647
Posts: 86
Joined: Wed Dec 07, 2016 5:33 pm
Has thanked: 2 times
Been thanked: 11 times

Re: Audiovox 3.5 Screen

Post by jb32647 » Sat Sep 23, 2017 3:56 am

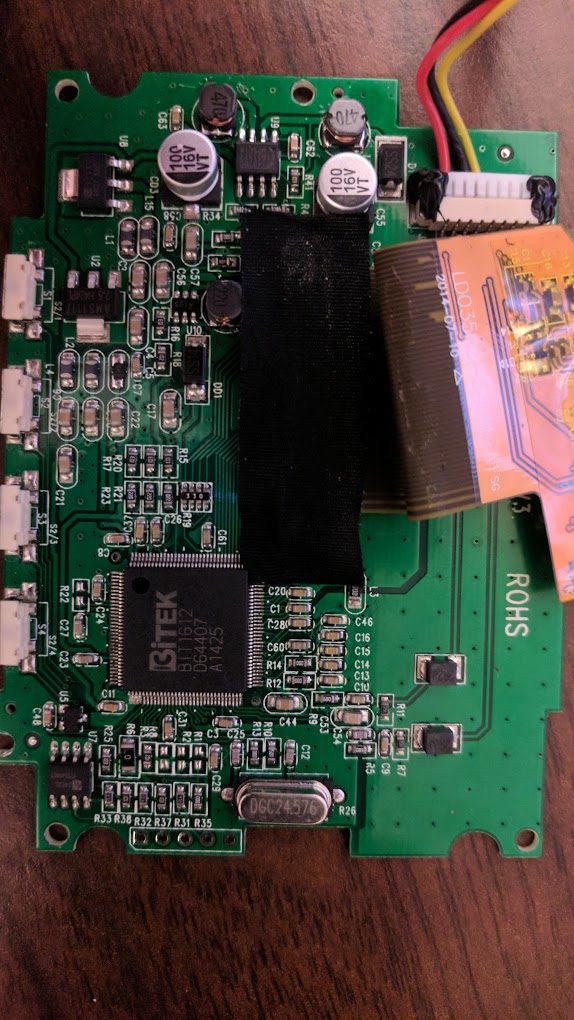

Could you please give me the chip numbers of the two 8-pin chips? The picture is too blurry and I can't read them myself.
An amateur at best. Current project: GB 'Athena'
