Ok. I feel like an idiot. I know the website has a picture with each pin shown, but I don't recognize some of the names of the pins listed. Does anyone have a list of which goes to what pin? Specifically vcc and data out, maybe others. But I don't see them on the list wermy has in the guides. A complete list for future reference would be great.

[kitsch-bent]

Ok. I feel like an idiot. I know the website has a picture with each pin shown, but I don't recognize some of the names of the pins listed. Does anyone have a list of which goes to what pin? Specifically vcc and data out, maybe others. But I don't see them on the list wermy has in the guides. A complete list for future reference would be great.

Vcc is the positive voltage. data out is sometimes labeled as "D-". (and, data in would be "D+" in that naming scheme)

hope that helps! and, don't feel like an idiot.... reading pinouts can actually be a tricky business.

[chibilaharl]

Ok one last question on the pinout. What is CS,is it pin 19? Sd cd. Also vcc is going to 3.3v pin right?

[chibilaharl]

anyone have the answer?

[kitsch-bent]

Ok one last question on the pinout. What is CS,is it pin 19? Sd cd. Also vcc is going to 3.3v pin right?

Vcc is indeed the positive voltage. in this case, 3v3

the other element to your post depends on how you have this set up... (but, i replied to your emails to we are in the thick of this right now)

[alien0matic]

Is the rev B sold out forever?

[Janicka]

Anyone got one of these cards to work in their build?
I'll give you a cookie if you can post some photos of your wiring.

[kitsch-bent]

Is the rev B sold out forever?

nope, the restock just hasn't arrived yet! sorry! should be soon though....

and, there is a rev.c, a rev.b2, and another coming up soon...

[kitsch-bent]

Anyone got one of these cards to work in their build?
I'll give you a cookie if you can post some photos of your wiring.

yeah, the reports back i've gotten have been all positive except a couple with wiring confusion, which i *think* was sorted out because I haven't heard back in a while.

seems to be going well so far. the naming scheme doesn't match up in the diagram I did compared to wermy's way of naming the pins, i'll try to get that updated soonish, not sure when i can grab the time though. so, by all means, if anyone has a wiring diagram available they did for themselves feel free to share...

[Flowlance]

Anyone got one of these cards to work in their build?
I'll give you a cookie if you can post some photos of your wiring.

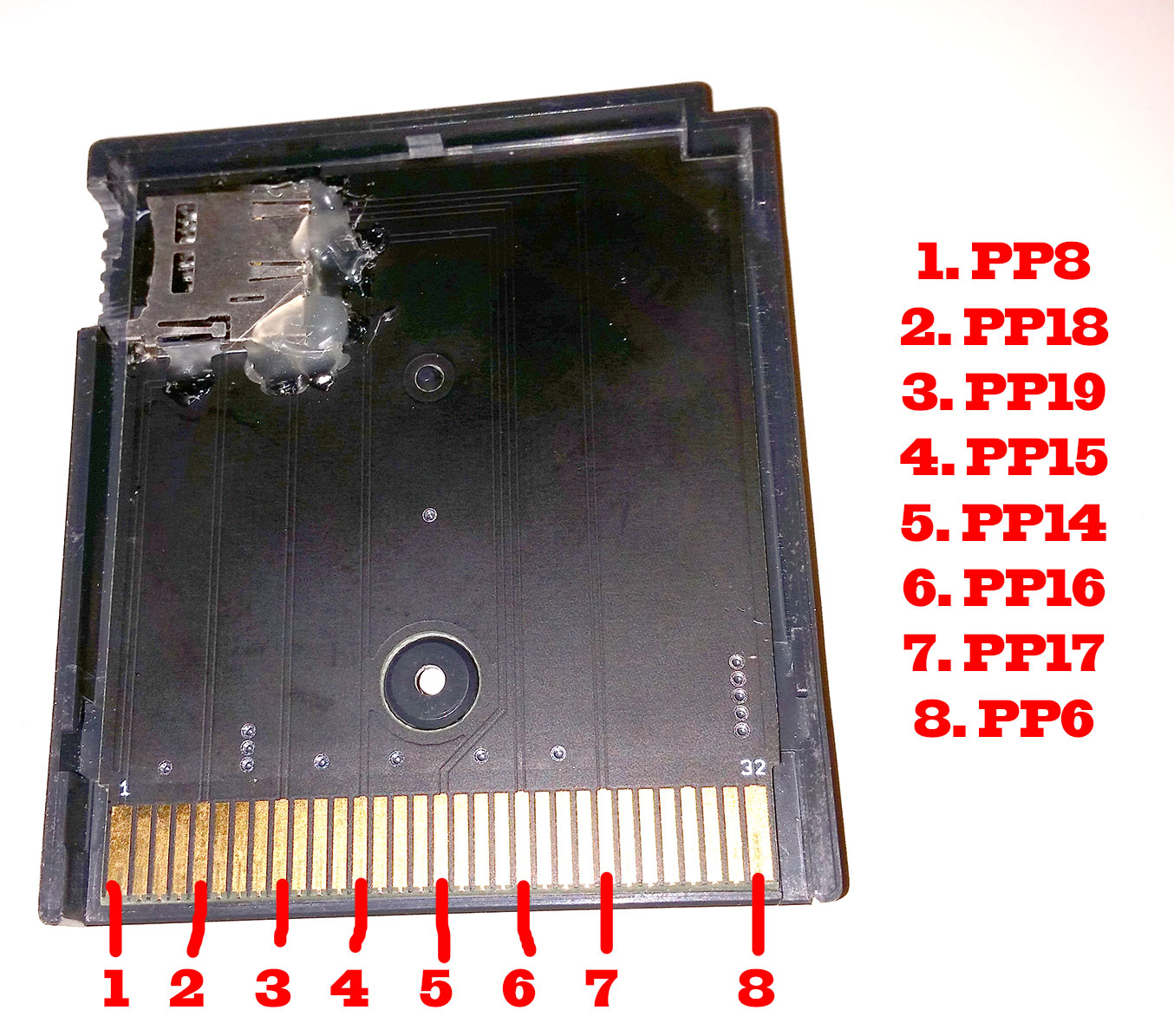

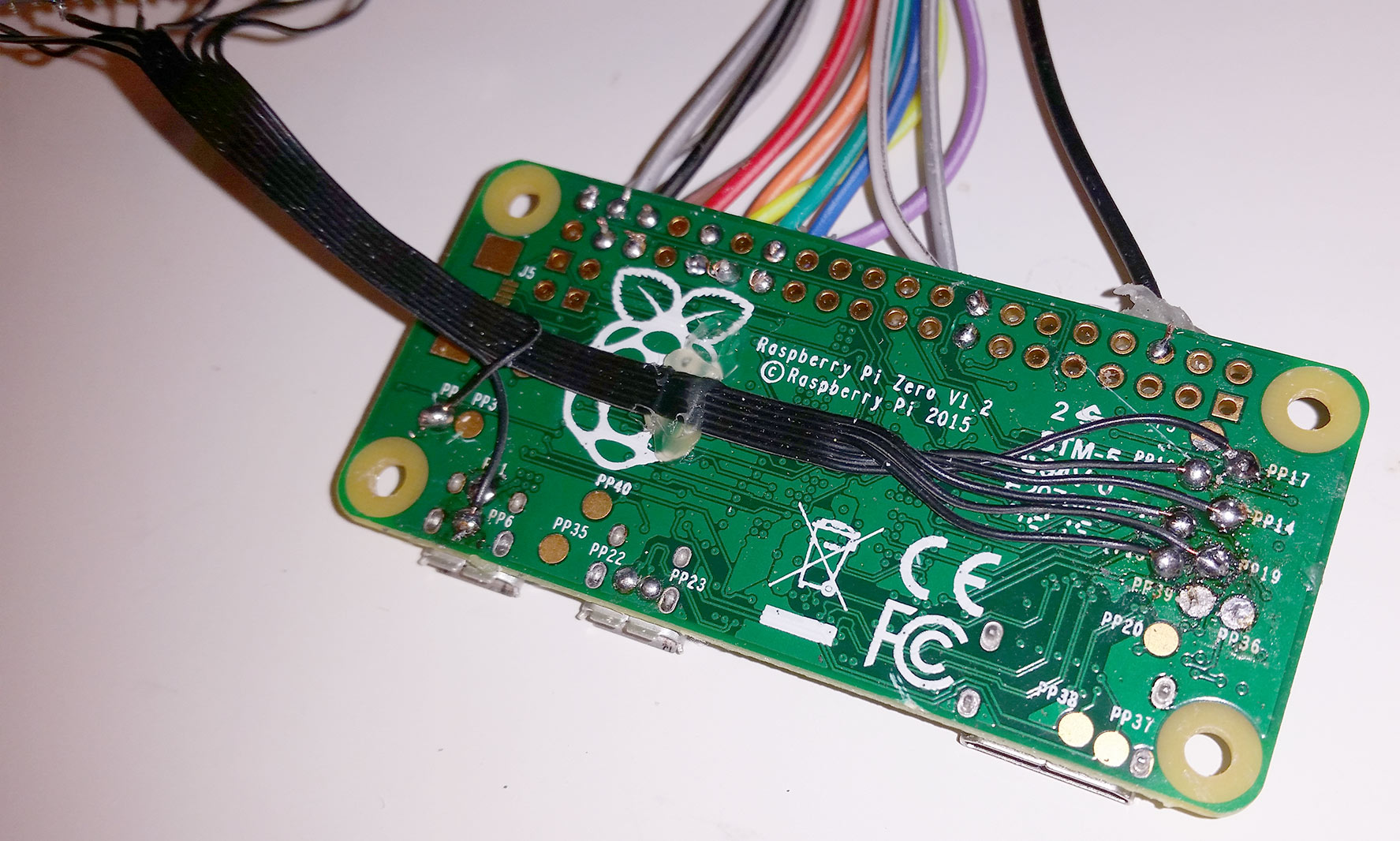

Because of cookie, I'm posting how I wired it (worked flawlessy after getting the wiring right, took me some time though!).
I made the wires too short though, so I have to rewire this later
