Gameboy Cart Socket?

[SwingeyP]

Does anyone know where I can get the original Gameboy cart socket from please?
I have an old gameboy which i've ripped apart for the bits but the only useable things are the buttons and case. A catastrophic battery leak has destroyed just about everything else. I'd like to build the GBZ but I need the original cart socket.

Any ideas?

Regards - Paul

[NyteFury]

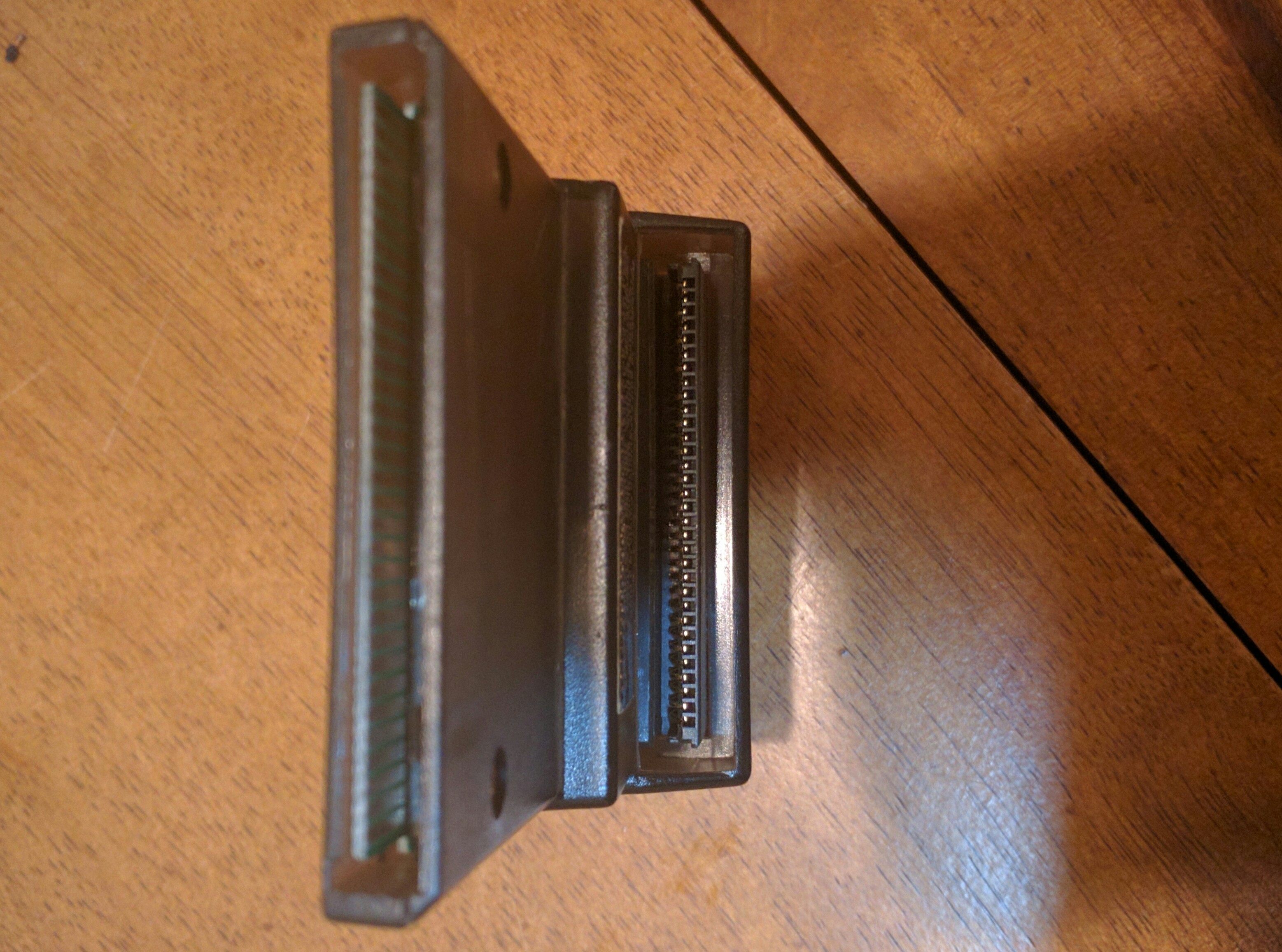

I just picked up a cheater cart and it had an extra slot. If you can't find a cheap broken gameboy or a replacement part sold alone that route should be an option.

This one is called Monster Brain.


[wermy]

Someone recently told me about using the GBA cart slot from a DS Lite since those can be purchased separately. It requires a few bits be trimmed off but it works great once you do that, and is in fact much easier to solder the pins since they are all in a row:

http://www.ebay.com/itm/2X-Nintendo-DS- ... 1518337496

It's also much thinner. Just have to use a lot of glue or epoxy to hold it in securely. If you're ok with those caveats, then it works great!

[Camble]

I've seen people cannibalise the Super Game Boy.

[spragzpc]

http://www.ebay.com/itm/401115899199?_t ... EBIDX%3AIT

[Ganreizu]

Someone recently told me about using the GBA cart slot from a DS Lite since those can be purchased separately. It requires a few bits be trimmed off but it works great once you do that, and is in fact much easier to solder the pins since they are all in a row:

http://www.ebay.com/itm/2X-Nintendo-DS- ... 1518337496

It's also much thinner. Just have to use a lot of glue or epoxy to hold it in securely. If you're ok with those caveats, then it works great!

Thanks so much for the link~~

Yeah but people seriously don't need to cannibalize original gameboys at all anymore. The power switches are nicer than the replacements i have seen but everything including that is replaceable. Replacement headphone jack and cartridge reader are superior to the original parts in my opinion. Plus replacement stuff is cheaper than a broken DMG.

[SidSilver]

I've seen people cannibalize the Super Game Boy.

Yep I've done that and it's great.

[MP98n]

I recently cannibalised a ds motherboard for the cart reader. Once you remove a couple of pieces of plastic, it fits great! I got the motherboard for £6.50
