Kite's CS does not fit into case

[smhrambo]

hi,

today a got my Kite CS, but it does not fit into the case of my DMG-01, because of a leftover part sticking out from the PCB.
It is located on the top edge of the pcb and could be seperated via a breake line direct above the status LEDs.
It has two holes and is labeled with "SIDE MOUNTED LEDS".
I can't find any inforamtion of it's purpose on kite's website.

[YaYa]

They are intended for soldering leds that will light the fron shell and not the top right angle of the shell...

[sygyzy]

Are you talking about the break way tabs? Please cut them off with a pair of side cutters. If you are unclear, please post a photo.

[smhrambo]

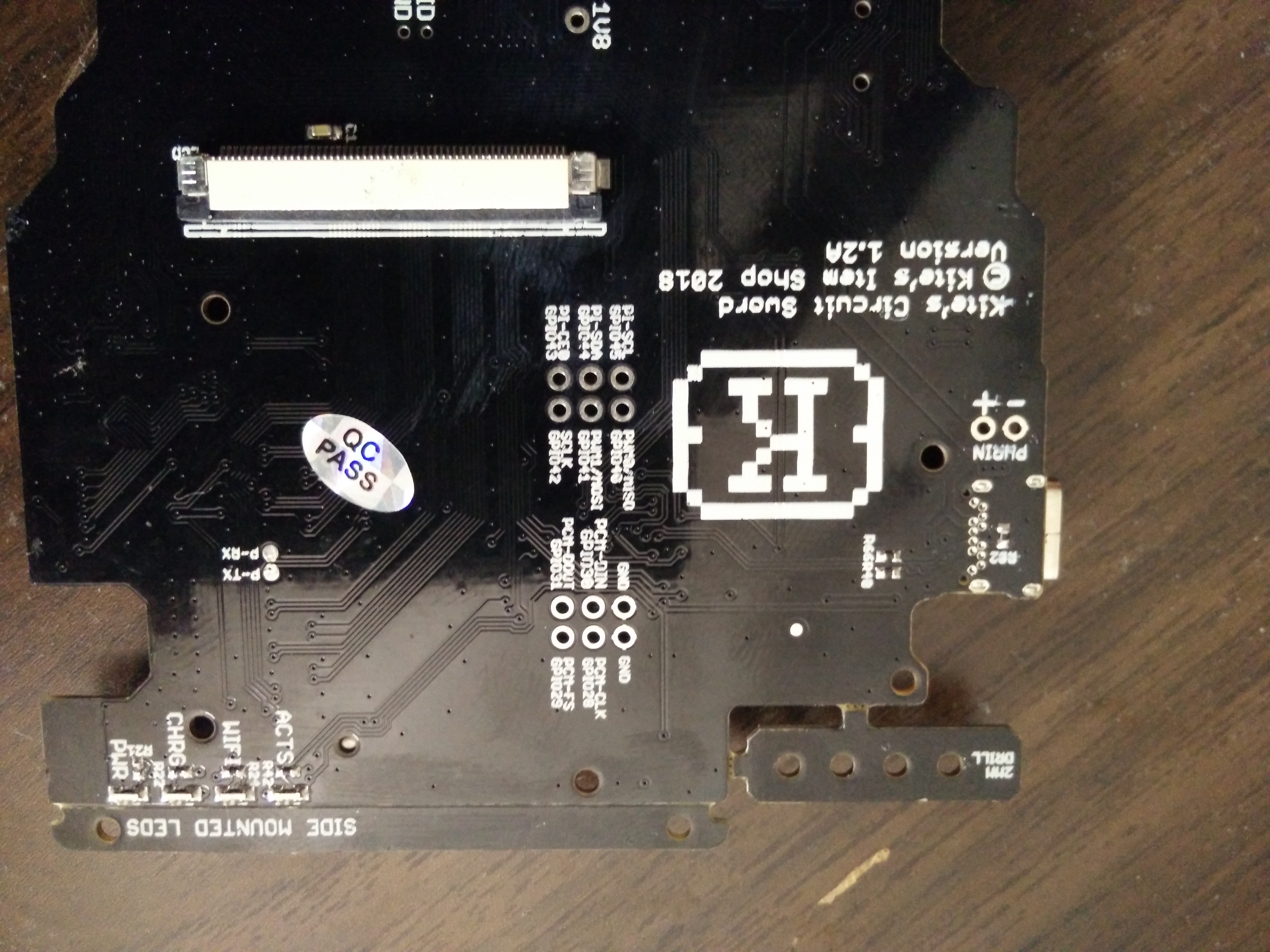

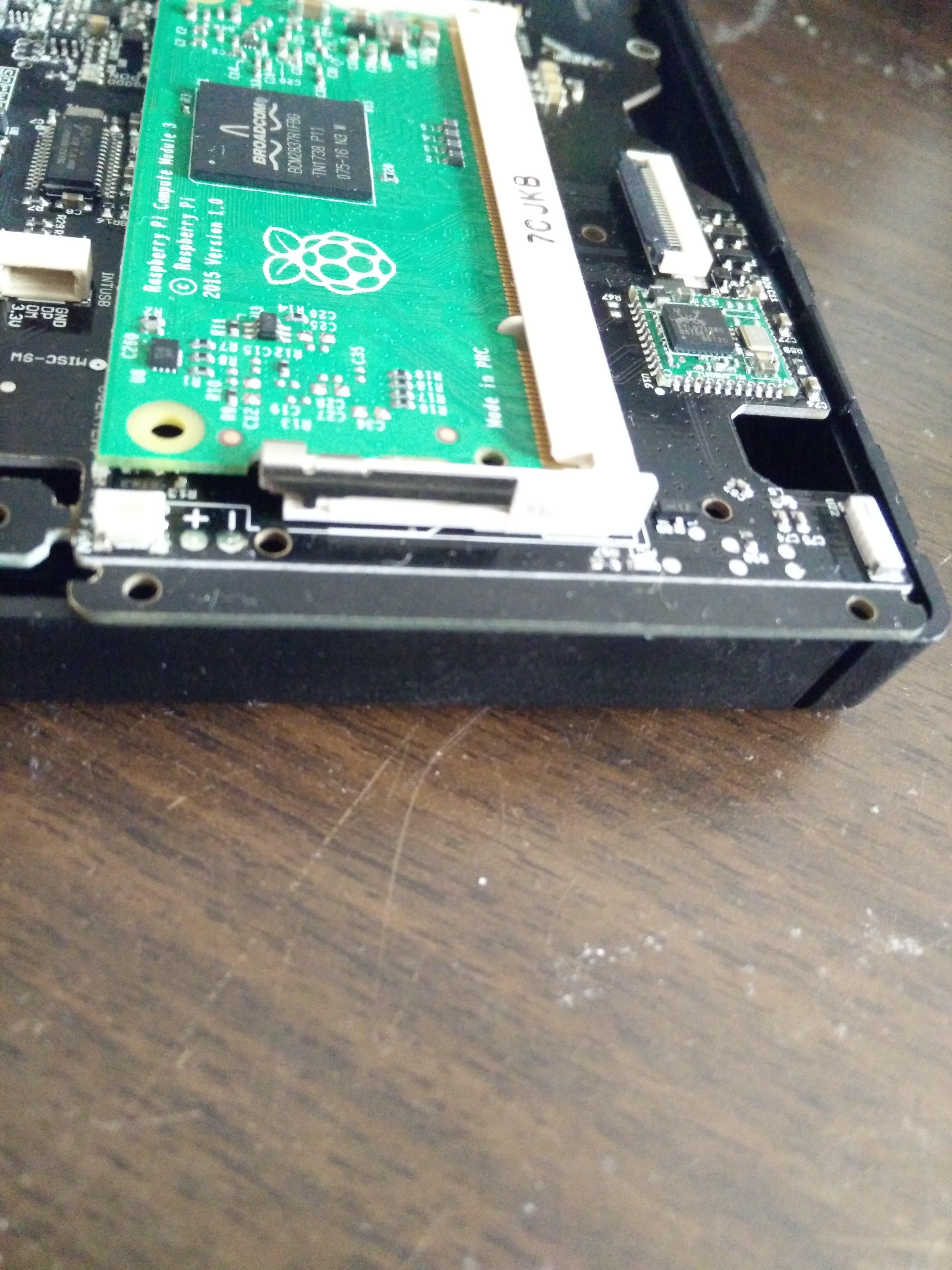

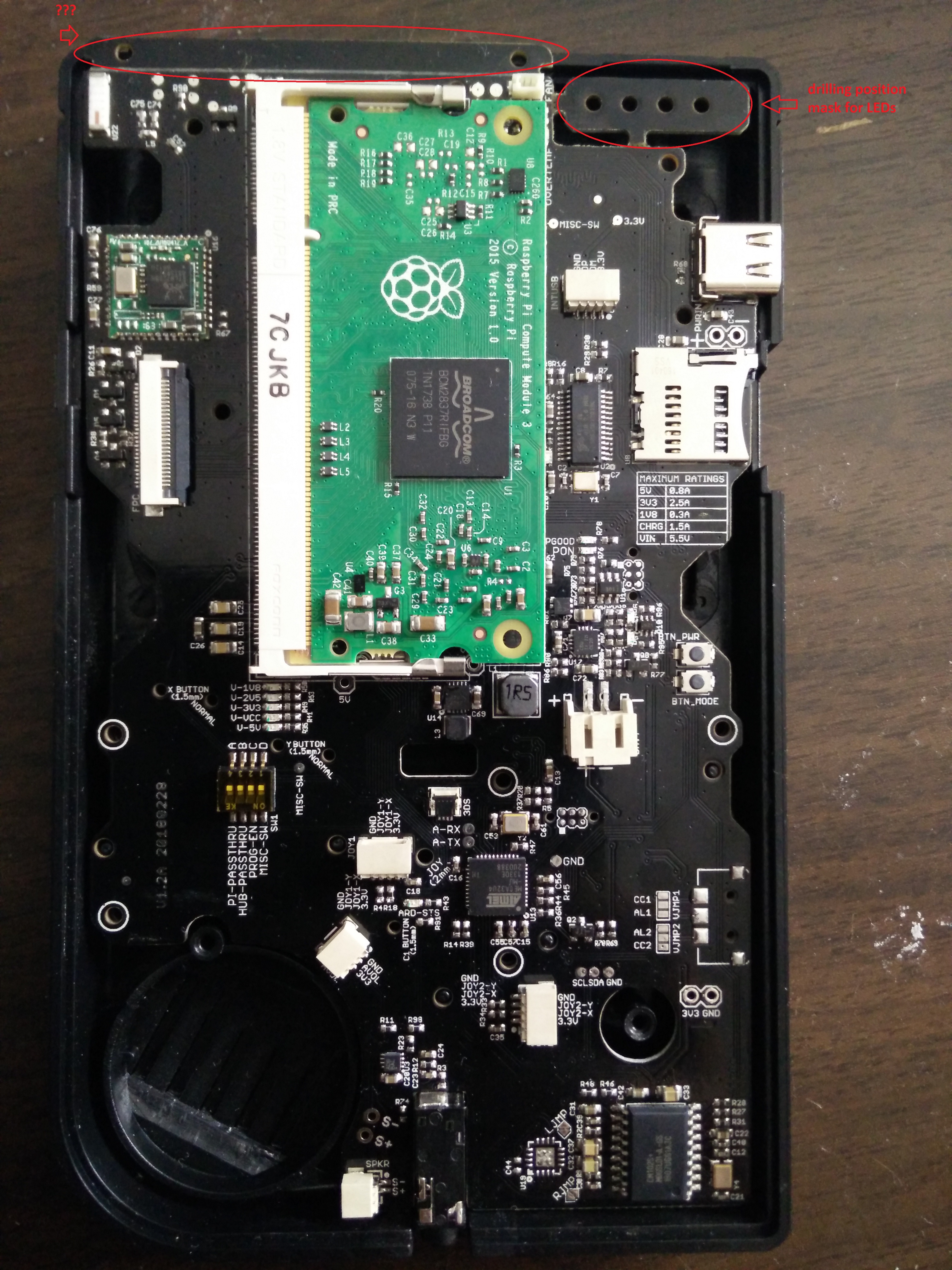

Here are some pictures from the pcb.

[rodocop]

it looks like those are meant to be take of. use side cutters or pliers. The small LED one with 4 holes looks to be easily removable. The top one should also be removable as well.

Also, i have never built a circuit sword, so this is speculation. but it seems that they should be taken off.

[smhrambo]

So I emailed kite and he told me that the part is still left over from the production and can be removed.
