Re: All in One PCB Support Thread
The pads on the left are labeled what they are so Lin goes to Lout and Rin goes to Rout. Use a wire for each connection.bassholio wrote:pot out to the speaker pads?
Chat with me and other members On Discord
Don't contact me about obtaining my board files (as you will not get them). If my Boards or PCB Kits are sold out, they will be restocked as soon as I can get them and there is demand for them. You can join the mailing list on my Website to be notified when they are available.
Helder's Game Tech Website
We will not support any cloned work so don't come to us with technical issues to resolve, go talk to the cloner for help.
Don't contact me about obtaining my board files (as you will not get them). If my Boards or PCB Kits are sold out, they will be restocked as soon as I can get them and there is demand for them. You can join the mailing list on my Website to be notified when they are available.
Helder's Game Tech Website
We will not support any cloned work so don't come to us with technical issues to resolve, go talk to the cloner for help.
-
bassholio
- Posts: 40
- Joined: Mon Sep 19, 2016 3:15 pm
- Location: Northborough, MA
- Been thanked: 12 times
- Contact:
Re: All in One PCB Support Thread
but what is the input? can the ground go to the ground pads on the right? Sorry I am a visual learner..
-
Mischief
- Posts: 225
- Joined: Sat May 21, 2016 7:50 am
- Location: Wolverhampton, UK
- Has thanked: 29 times
- Been thanked: 69 times
Re: All in One PCB Support Thread
Ignore the ground, attach a wire going from left in to left out and the same for right in and right out, the way it works is the PWM filter goes to the input of the pot then the output goes from the pot to the ampbassholio wrote:but what is the input? can the ground go to the ground pads on the right? Sorry I am a visual learner..
-
bassholio
- Posts: 40
- Joined: Mon Sep 19, 2016 3:15 pm
- Location: Northborough, MA
- Been thanked: 12 times
- Contact:
Re: All in One PCB Support Thread

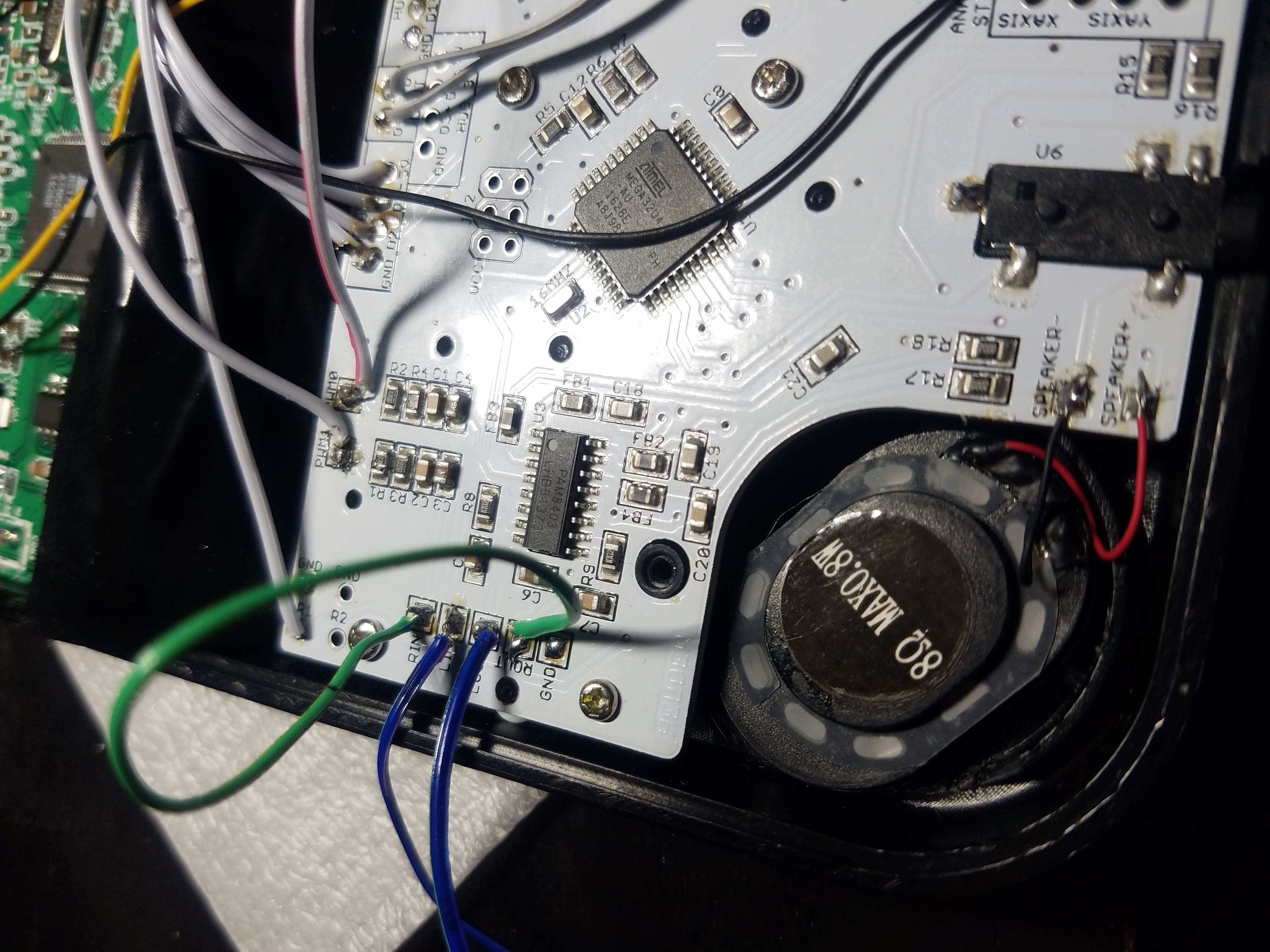

So I did Lin to Lout, and Rin to Rout, Ground to ground panel and speaker to speaker pads. Still nothing.
-
bassholio
- Posts: 40
- Joined: Mon Sep 19, 2016 3:15 pm
- Location: Northborough, MA
- Been thanked: 12 times
- Contact:
-
Mischief
- Posts: 225
- Joined: Sat May 21, 2016 7:50 am
- Location: Wolverhampton, UK
- Has thanked: 29 times
- Been thanked: 69 times
Re: All in One PCB Support Thread
Have you turned up the volume in alsamixer?bassholio wrote:So I did Lin to Lout, and Rin to Rout, Ground to ground panel and speaker to speaker pads. Still nothing.
As I said ignore the ground as its a common ground point.

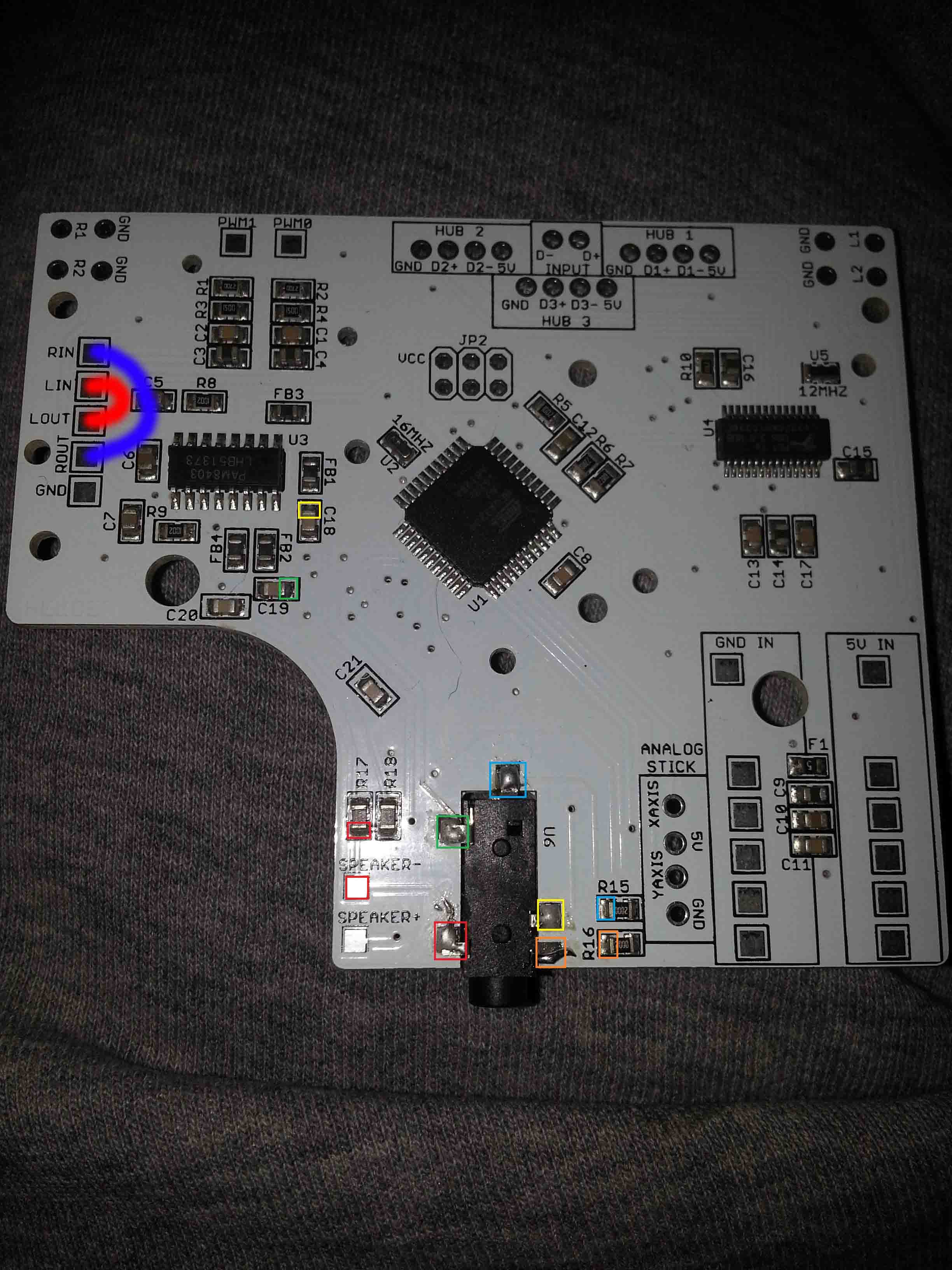

- Untitled-1.jpg (292.97 KiB) Viewed 8942 times
-
bassholio
- Posts: 40
- Joined: Mon Sep 19, 2016 3:15 pm
- Location: Northborough, MA
- Been thanked: 12 times
- Contact:
Re: All in One PCB Support Thread
the sound is up in ES. What is the audio output that should be selected? 3.5mm? I nixed the ground. Still nothing.
-
Mischief
- Posts: 225
- Joined: Sat May 21, 2016 7:50 am
- Location: Wolverhampton, UK
- Has thanked: 29 times
- Been thanked: 69 times
Re: All in One PCB Support Thread
Yes force 3.5mmbassholio wrote:the sound is up in ES. What is the audio output that should be selected? 3.5mm? I nixed the ground. Still nothing.
