Ant's Circuit Sword STL Files (joystick, shoulder button, exhaust fan cartridge)

[javi.124]

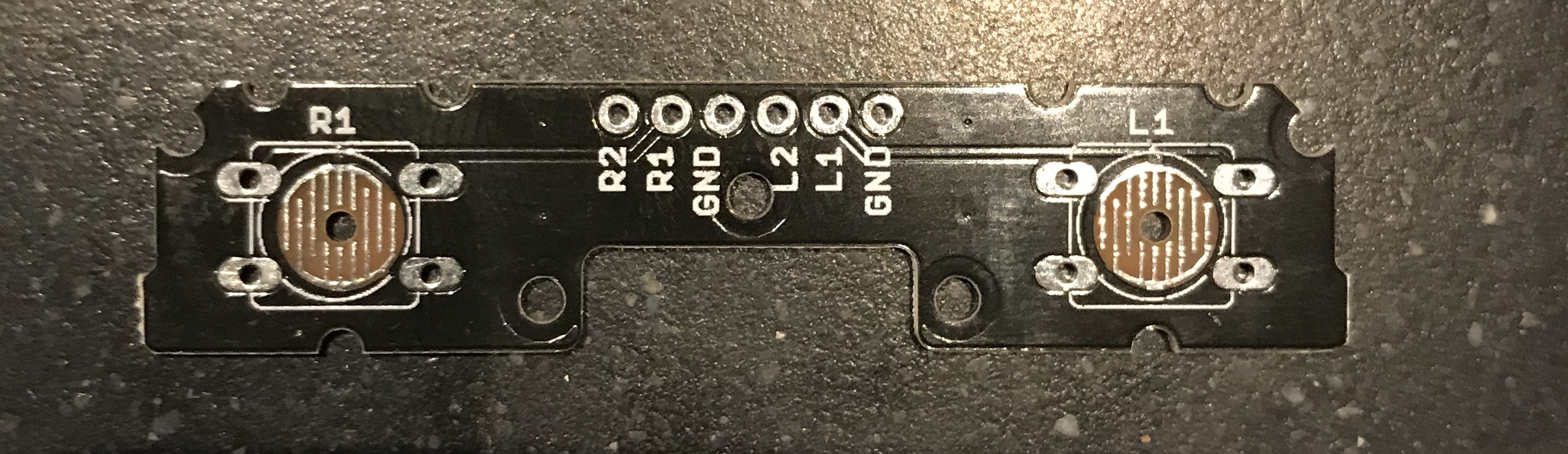

That’s the one that comes with V1.2A:
Cannot use the select/start buttons

[AntFJ]

bah that won't do. I really enjoyed using the start/select buttons. I'll see if I can get the file from Kite and order my own PCB

[javi.124]

bah that won't do. I really enjoyed using the start/select buttons. I'll see if I can get the file from Kite and order my own PCB

Actually, a specifically-designed PCB with that same form factor, fitting your bracket, but with double contact-pads (since select/start have 2 graphite pads) would be awesome...

[AntFJ]

Yeah I could do that too

[AntFJ]

I'm trying to make the new board - can you measure the distance between the contacts on the rubber start select buttons in mm please? center point to center point

bah that won't do. I really enjoyed using the start/select buttons. I'll see if I can get the file from Kite and order my own PCB

Actually, a specifically-designed PCB with that same form factor, fitting your bracket, but with double contact-pads (since select/start have 2 graphite pads) would be awesome...

[AntFJ]

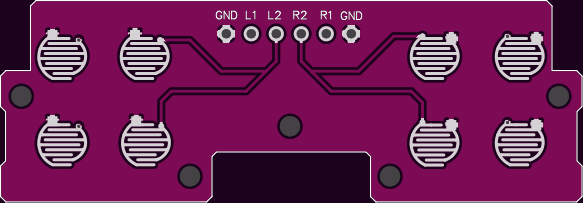

Can someone measure the distance between center points on the pads under the start/select buttons? I need to make sure the pads I designed on this PCB are the correct distance apart.

This design is based on Kite's version 1.0 back board

Custom Board.png (14.44 KiB) Viewed 27536 times

[kubino]

Can someone measure the distance between center points on the pads under the start/select buttons? I need to make sure the pads I designed on this PCB are the correct distance apart.

This design is based on Kite's version 1.0 back board
Custom Board.png

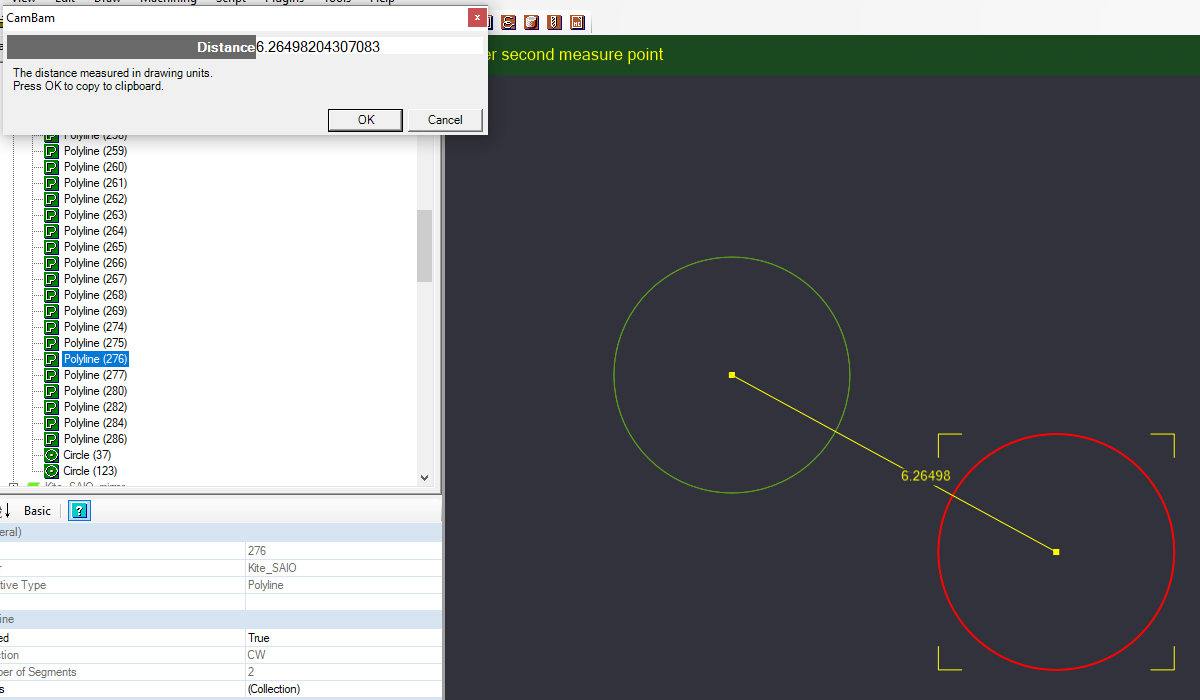

This should be helpfull :


[AntFJ]

Nailed it! Thanks! 6.265mm it is!

[javi.124]

@AntFJ: that is great!

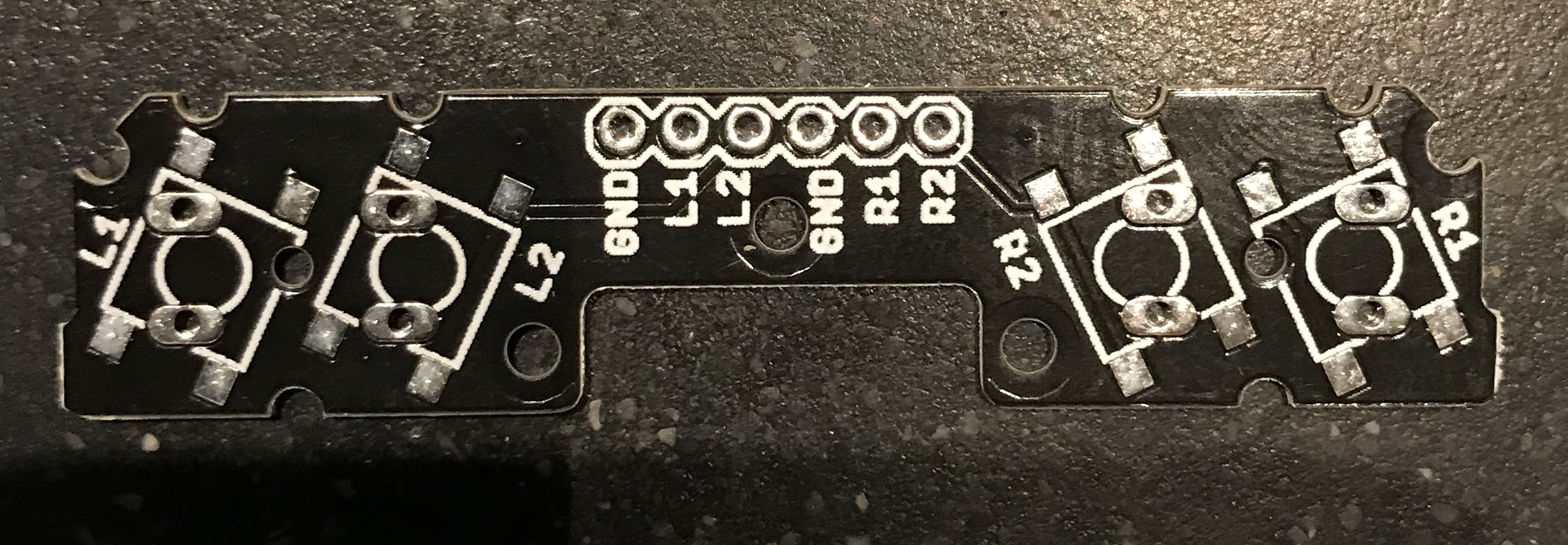

If anyone interested in Kite's backboards, he shared them here: https://github.com/kiteretro/Circuit-Sword-PCBs

I ordered 3 (minimum amount) of Kite's 1.0B version at OSHPark, so I have two spares if anyone is interested.

I ordered

[AntFJ]

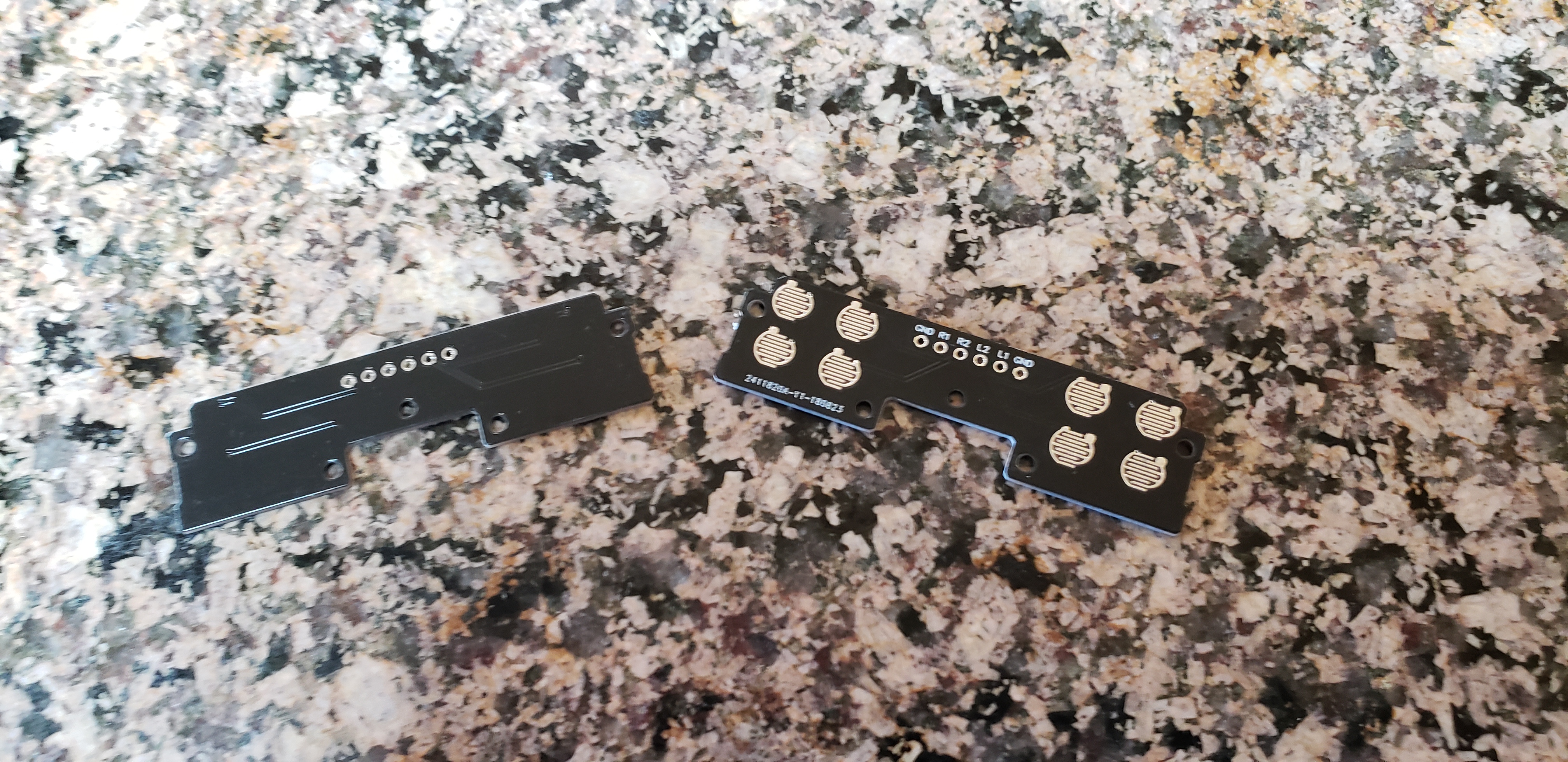

Look what I got! I don't have a shell to test them on though
