Psy128 2nd gbz

Post by Psy128 » Tue Oct 18, 2016 5:55 pm

Hi this time I'm doing it a little different hopefully better and easyer.

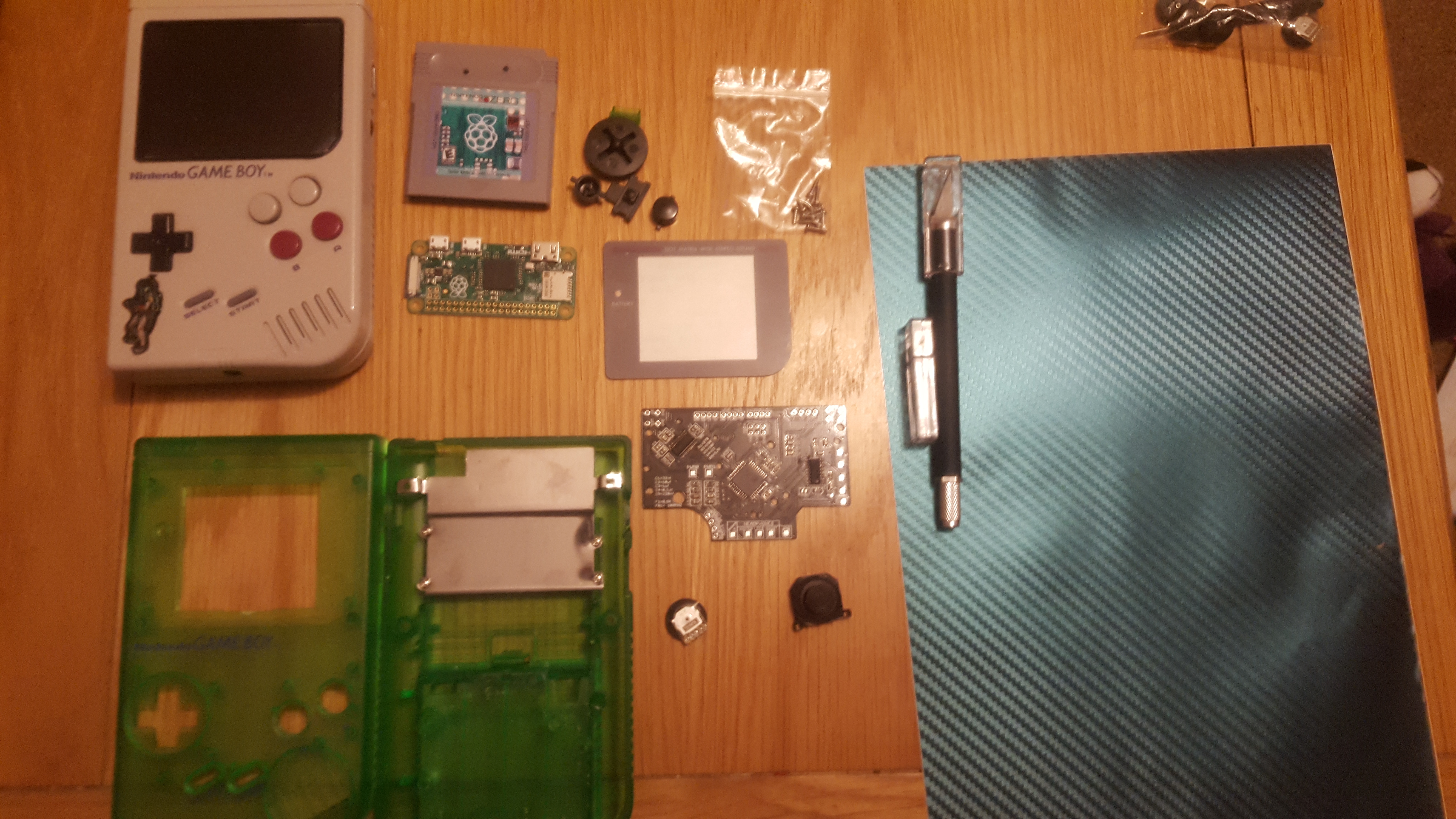

I'm using helders AIO 1.4 board and I'm planning to put the analogue stick in as well.

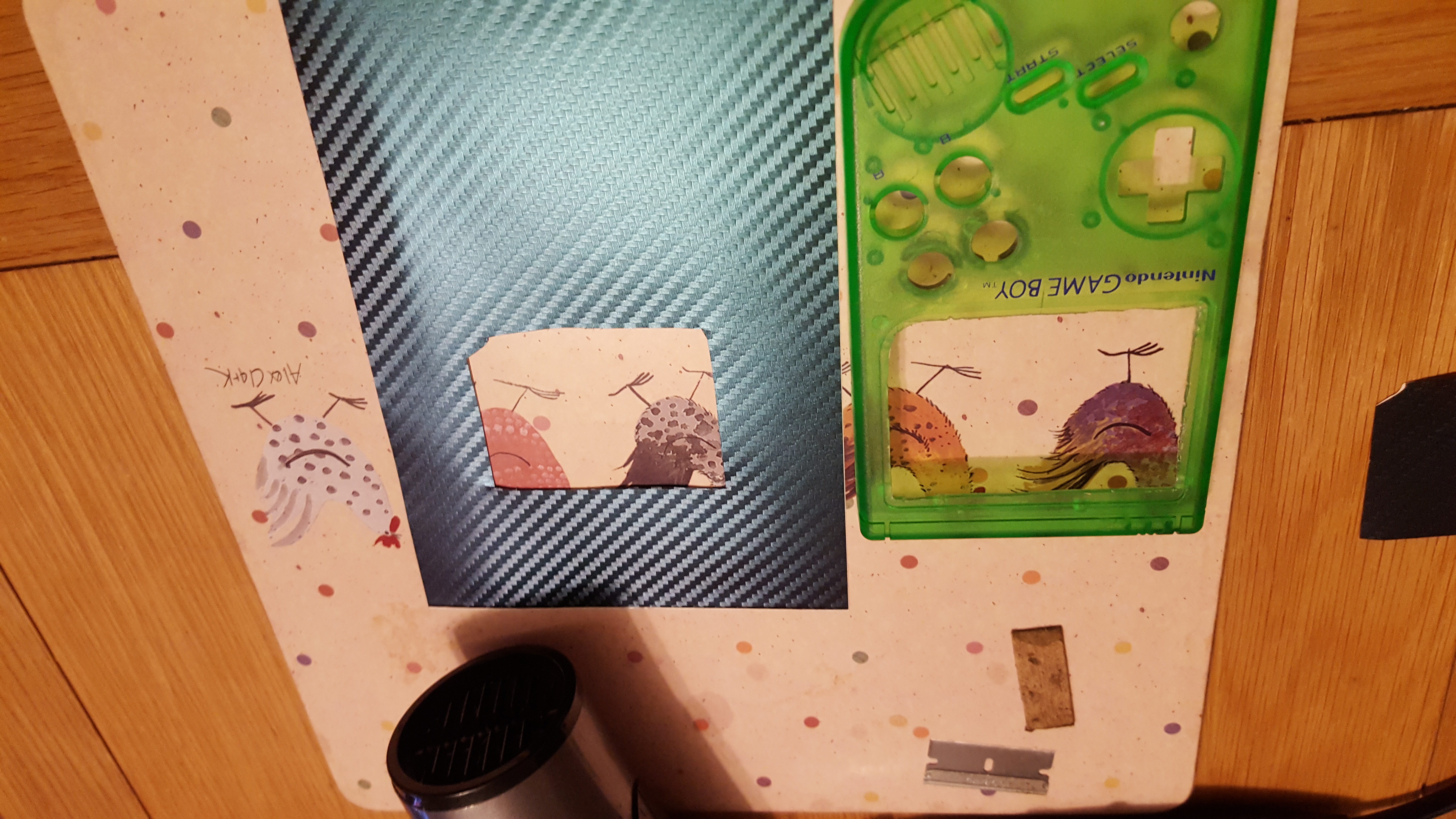

I'm planning to use a carbon fibre wrap to stick around my new clear green case. The sticker is two tone as well green/purple. Plus I'll be adding LEDS in places to shine through but still in the planning process on that lol.
Attachments

User avatar
sotasystems
Posts: 160
Joined: Sun Oct 09, 2016 4:56 am
Location: Germany, 127.0.0.1
Has thanked: 95 times
Been thanked: 93 times
Contact:

Re: Psy128 2nd gbz

Post by sotasystems » Wed Oct 19, 2016 4:46 am

Really excited to see how the carbon fiber will turn out! Good going there :)
Ladies and gentlemen, I would like to inform you that I am currently moving very far away, and therefore I am very busy.

UPDATE: I am still alive! My ISP is setting up my internet on the 19th of January at my new place, explaining my offline-ness.

If you write me a PM, I will very likely take some time to respond.

Also, my 2nd build will soon go on, so if you've been following it, please stay tuned! :)

Many thanks for your understanding!

Psy128
Posts: 91
Joined: Sat Jun 25, 2016 7:36 am
Has thanked: 8 times
Been thanked: 22 times

Re: Psy128 2nd gbz

Post by Psy128 » Wed Oct 26, 2016 3:51 pm

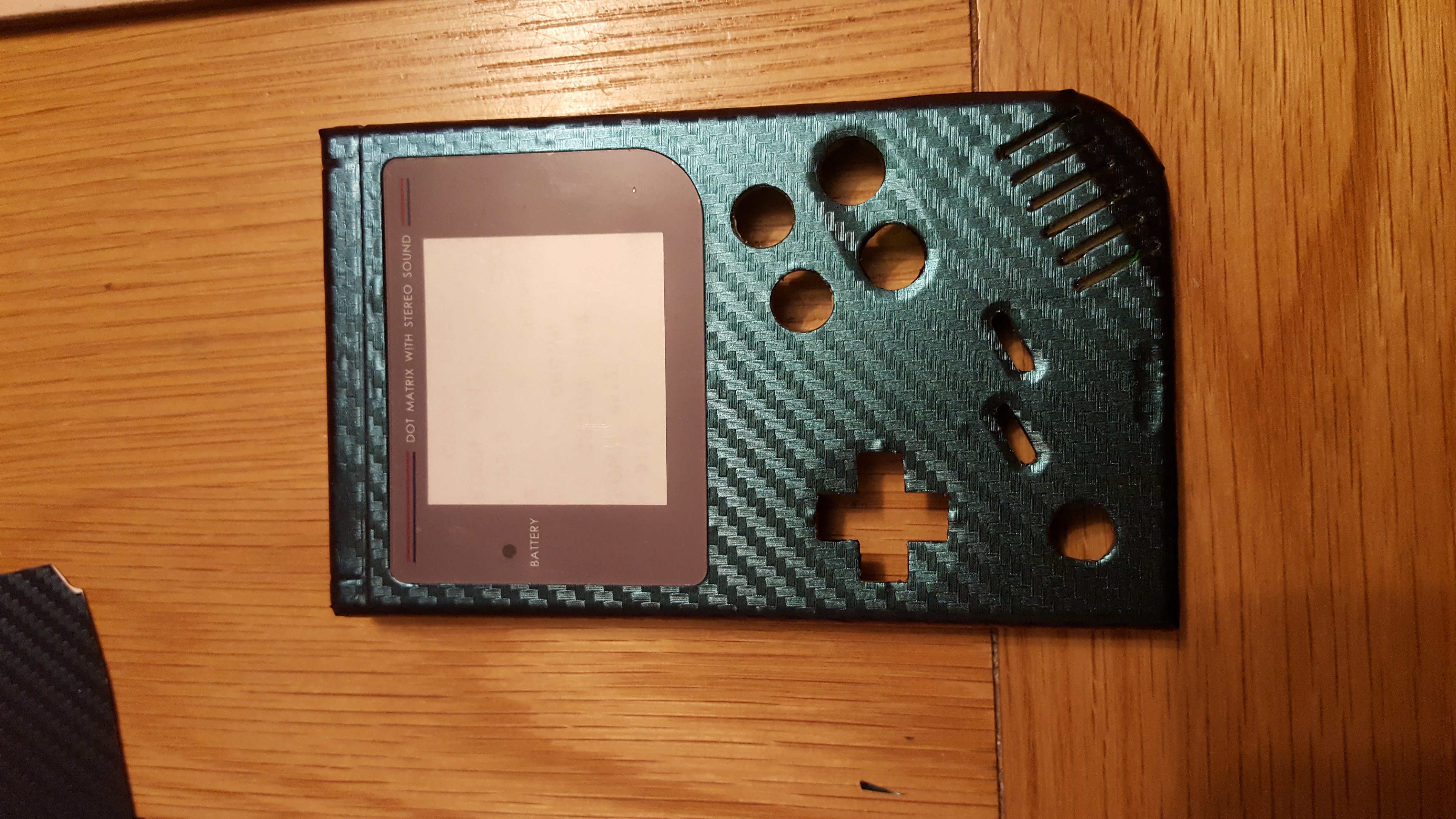

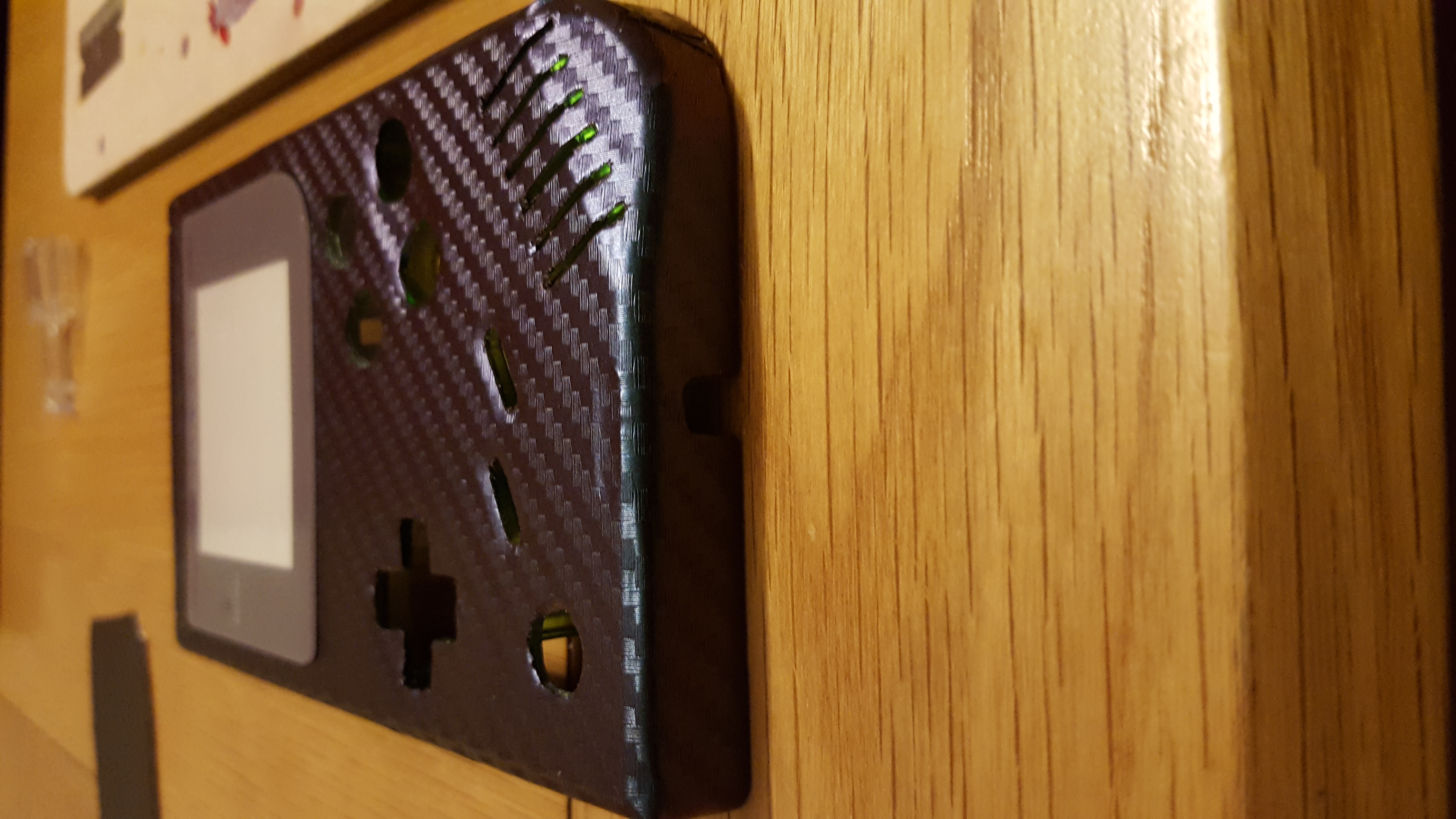

Just done my 1st half of wrapping the case :D
Attachments

User avatar
sotasystems
Posts: 160
Joined: Sun Oct 09, 2016 4:56 am
Location: Germany, 127.0.0.1
Has thanked: 95 times
Been thanked: 93 times
Contact:

Re: Psy128 2nd gbz

Post by sotasystems » Wed Oct 26, 2016 6:55 pm

Psy128 wrote:Just done my 1st half of wrapping the case :D
That looks legit. :)

Are you going to give it a glossy or matte finish or will you leave it like that? :)
Ladies and gentlemen, I would like to inform you that I am currently moving very far away, and therefore I am very busy.

UPDATE: I am still alive! My ISP is setting up my internet on the 19th of January at my new place, explaining my offline-ness.

If you write me a PM, I will very likely take some time to respond.

Also, my 2nd build will soon go on, so if you've been following it, please stay tuned! :)

Many thanks for your understanding!

User avatar
DoggieWokkie
Posts: 26
Joined: Thu Sep 29, 2016 9:41 am
Has thanked: 37 times
Been thanked: 4 times

Re: Psy128 2nd gbz

Post by DoggieWokkie » Thu Oct 27, 2016 3:19 am

Psy128 wrote:Just done my 1st half of wrapping the case :D
Looks nice!

Psy128
Posts: 91
Joined: Sat Jun 25, 2016 7:36 am
Has thanked: 8 times
Been thanked: 22 times

Re: Psy128 2nd gbz

Post by Psy128 » Thu Oct 27, 2016 9:36 am

sotasystems wrote:
Psy128 wrote:Just done my 1st half of wrapping the case :D
That looks legit. :)

Are you going to give it a glossy or matte finish or will you leave it like that? :)
At the moment I'm leaving it like that I've saved some test piece to see how is looks later. The back of the case is going to be hard to do lol.

Psy128
Posts: 91
Joined: Sat Jun 25, 2016 7:36 am
Has thanked: 8 times
Been thanked: 22 times

Re: Psy128 2nd gbz

Post by Psy128 » Thu Oct 27, 2016 9:56 am

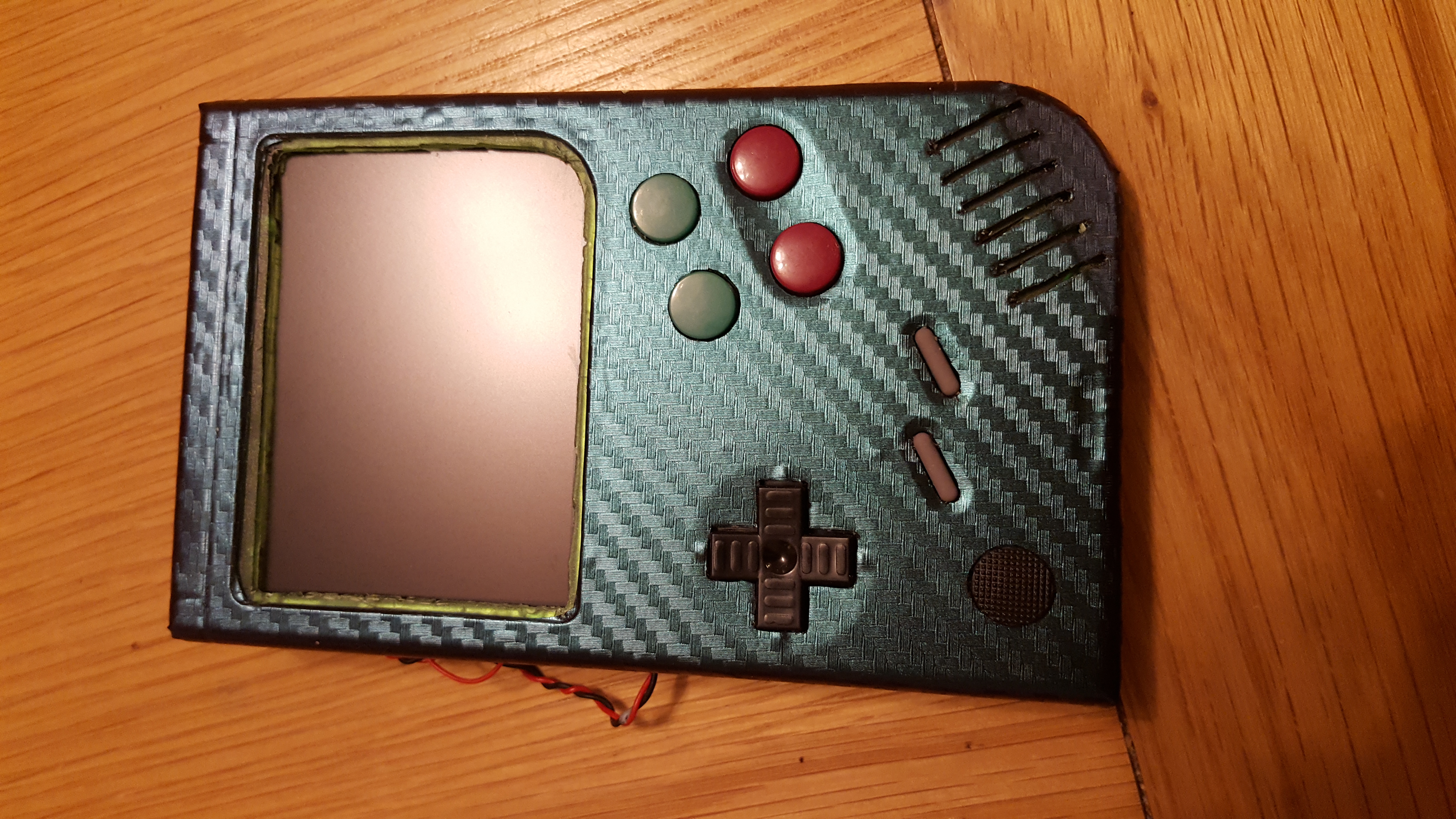

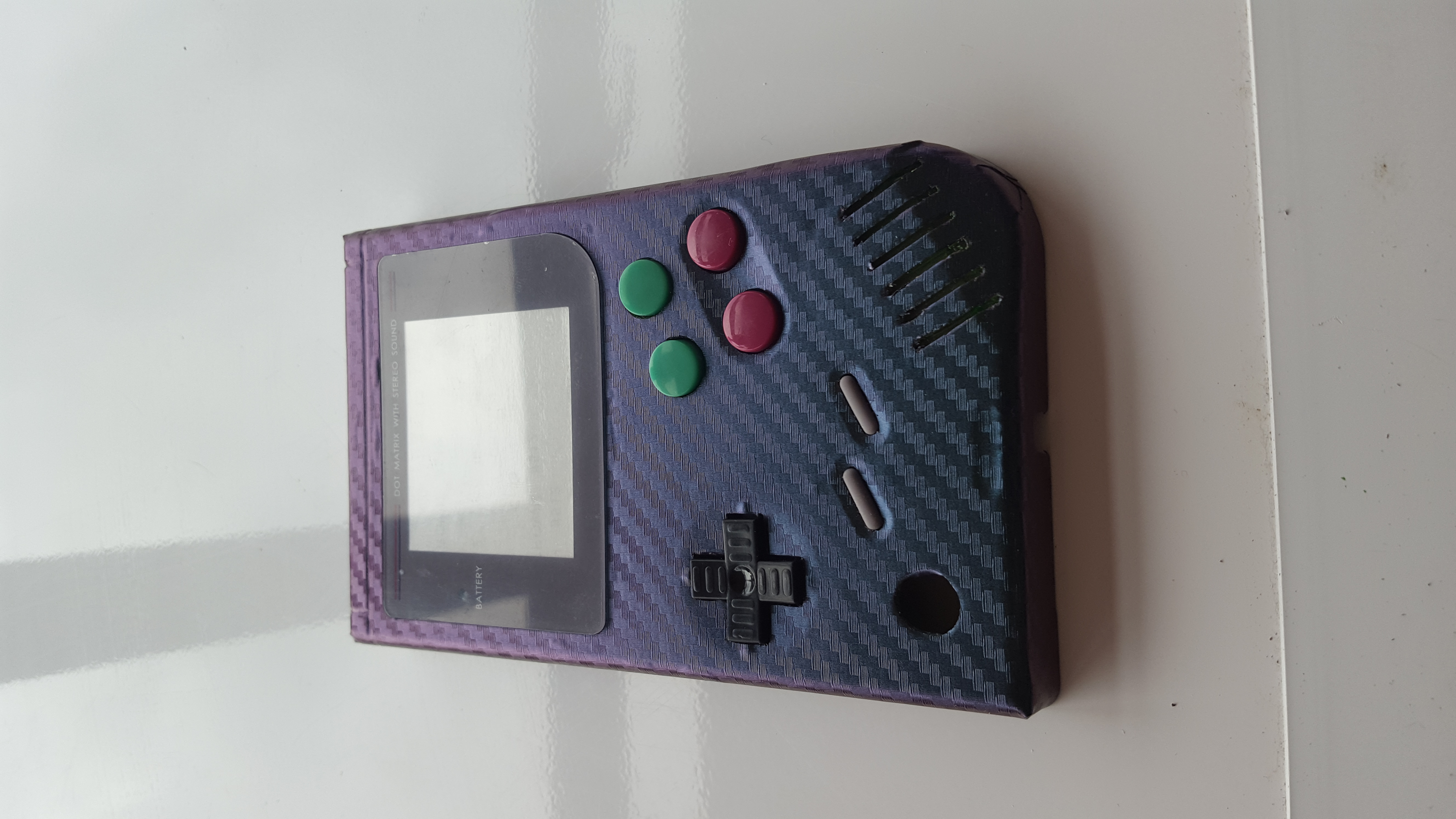

What it looks like with some buttons in. just little issue is the analogue joystick it rubs due to the thickness so I need to do a small mod to make it longer.
Attachments

User avatar
sotasystems
Posts: 160
Joined: Sun Oct 09, 2016 4:56 am
Location: Germany, 127.0.0.1
Has thanked: 95 times
Been thanked: 93 times
Contact:

Re: Psy128 2nd gbz

Post by sotasystems » Thu Oct 27, 2016 10:14 am

Psy128 wrote:What it looks like with some buttons in. just little issue is the analogue joystick it rubs due to the thickness so I need to do a small mod to make it longer.
Cool man.
I had the same issue with the analog sticks in my build, my fix was to put a tiny bit of hot glue in the stick so it won't fall out and then I put it on a little bit higher than it's supposed to go, and that did the trick.
Ladies and gentlemen, I would like to inform you that I am currently moving very far away, and therefore I am very busy.

UPDATE: I am still alive! My ISP is setting up my internet on the 19th of January at my new place, explaining my offline-ness.

If you write me a PM, I will very likely take some time to respond.

Also, my 2nd build will soon go on, so if you've been following it, please stay tuned! :)

Many thanks for your understanding!

User avatar
CaptainDurden
Posts: 133
Joined: Wed Sep 07, 2016 1:24 pm
Has thanked: 70 times
Been thanked: 48 times

Re: Psy128 2nd gbz

Post by CaptainDurden » Thu Oct 27, 2016 11:49 am

you could also shave down a little indentation on the inside of the case, that way the stick would protrude out a little further
Helder wrote:People spend so much time in asking questions and no time looking for an answer that is available.

Psy128
Posts: 91
Joined: Sat Jun 25, 2016 7:36 am
Has thanked: 8 times
Been thanked: 22 times

Re: Psy128 2nd gbz

Post by Psy128 » Fri Oct 28, 2016 6:11 pm

I've now install my screen and started to lay down the internals. I've got a nice screen cover on order :lol:
Attachments
