Latest revision as of 20:37, 19 July 2016
Notes

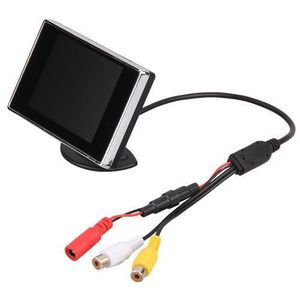

TFT Screen from eBay with case which works out of the box with 5v.
Note from omgpewpewlazer
I've bought this one (just compared the links. they are identical to my purchase history.
the board i got is the one RazorX made a guide on and is the one as show in the picture below.
Specifications
|
Website |
ebay.de |
|---|---|
|
Seller |
emarket666 |
|
Brand |
none |
|
Input |
Composite (AV/CVBS) |
|
Resolution |
320 x 240 px |
|
Screen Dimensions |
76 x 64 mm |
|
Active Area Dimensions |
73 x 55 mm |
|
Button Board |
not included |
|
5 volt |
out of the box |
|
Projects |
additional Pictures
Manual and Case
Board
