Re: Collecting information on alternative displays - please contribute
Hi!
I bought this screen http://www.ebay.com/itm/111411981808
This are the specifications:
And this is a photo of the board:
I searched on the wiki (http://sudomod.com/wiki/index.php?title=GBZ_Screen) and I can find it, any advice on how I should convert from 12V to 5V?
I bought this screen http://www.ebay.com/itm/111411981808
This are the specifications:
And this is a photo of the board:
I searched on the wiki (http://sudomod.com/wiki/index.php?title=GBZ_Screen) and I can find it, any advice on how I should convert from 12V to 5V?
Re: Collecting information on alternative displays - please contribute
Can you tell me the code write on this chip 8sop?ellipticaldoor wrote:Hi!
I bought this screen http://www.ebay.com/itm/111411981808
This are the specifications:

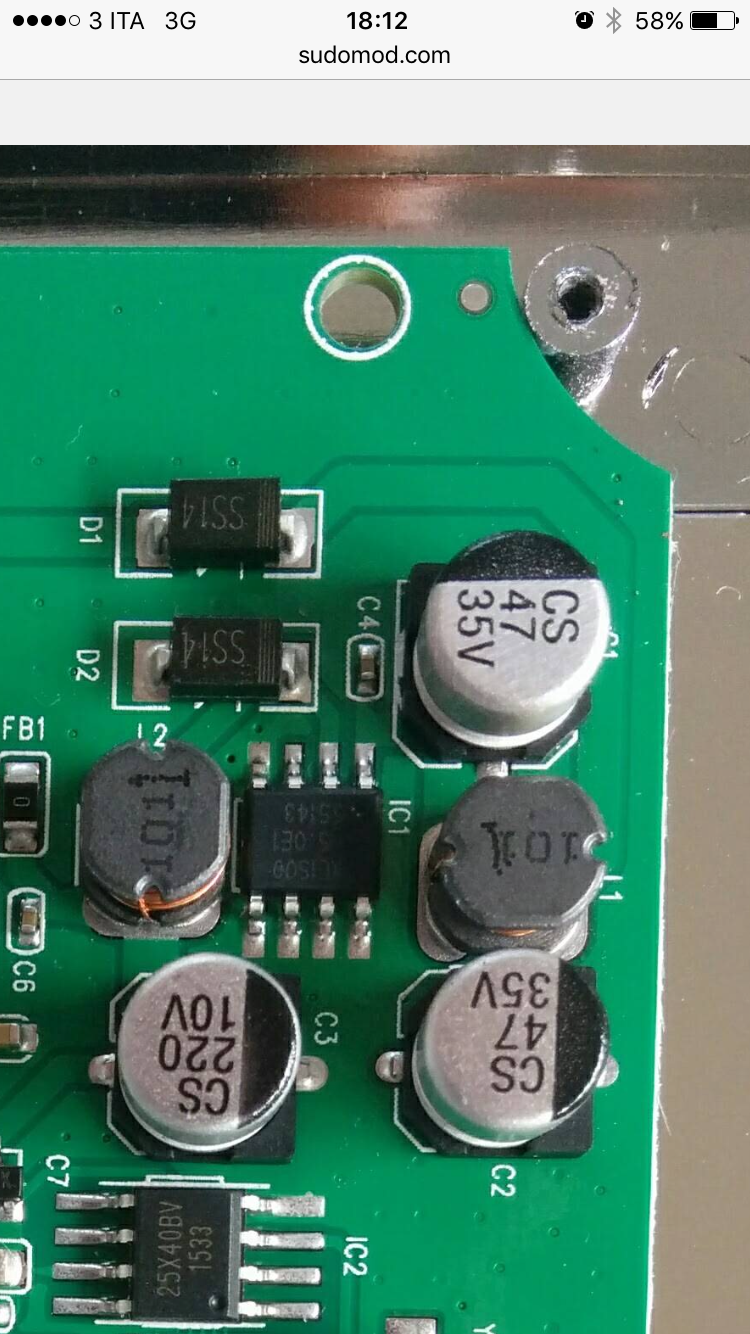

And this is a photo of the board:
I searched on the wiki (http://sudomod.com/wiki/index.php?title=GBZ_Screen) and I can find it, any advice on how I should convert from 12V to 5V?
- Attachments
-
- IMG_0663.PNG (1.55 MiB) Viewed 9234 times
- Mischief
- Posts: 225
- Joined: Sat May 21, 2016 7:50 am
- Location: Wolverhampton, UK
- Has thanked: 29 times
- Been thanked: 69 times
Re: Collecting information on alternative displays - please contribute
The box has a sticker on it stating 5-12V have you tried it on 5V to see if it works?ellipticaldoor wrote:Hi!
I bought this screen http://www.ebay.com/itm/111411981808
I searched on the wiki (http://sudomod.com/wiki/index.php?title=GBZ_Screen) and I can find it, any advice on how I should convert from 12V to 5V?
-
- Posts: 3
- Joined: Thu Dec 01, 2016 1:35 pm
- Has thanked: 1 time
Re: Collecting information on alternative displays - please contribute
Lucky!
I have found a seller on AliExpress with 3.5 LCDs with tiny blue PCBs not these huge ugly monstrosity ones.
I have one problem which I'm hoping someone here can assist with or maybe it's a defective screen. I'm getting a double image.
Voltage: 5v working by default! Perfect.
Your results may vary I suppose but if you look at the size of the case itself you can't fit a big green PCB in it so it's a good risk
New 3.5 Inch TFT LCD Screen Monitor Reverse Camera Car Rear View Backup
http://s.aliexpress.com/juAJjIVB
(from AliExpress Android)
I have found a seller on AliExpress with 3.5 LCDs with tiny blue PCBs not these huge ugly monstrosity ones.
I have one problem which I'm hoping someone here can assist with or maybe it's a defective screen. I'm getting a double image.
Voltage: 5v working by default! Perfect.
Your results may vary I suppose but if you look at the size of the case itself you can't fit a big green PCB in it so it's a good risk
New 3.5 Inch TFT LCD Screen Monitor Reverse Camera Car Rear View Backup
http://s.aliexpress.com/juAJjIVB
(from AliExpress Android)
- DoggieWokkie
- Posts: 27
- Joined: Thu Sep 29, 2016 9:41 am
- Has thanked: 38 times
- Been thanked: 4 times
Re: Collecting information on alternative displays - please contribute
I had the same screen. I got a better image running the 5v to the square chip. Theres a tut on the wiki.Kingoddball wrote: I'm getting a double image.
Voltage: 5v working by default.....
http://sudomod.com/wiki/index.php?title ... jumper.jpg
- ellipticaldoor
- Posts: 8
- Joined: Fri Sep 30, 2016 12:14 pm
Re: Collecting information on alternative displays - please contribute
It worksMischief wrote:The box has a sticker on it stating 5-12V have you tried it on 5V to see if it works?ellipticaldoor wrote:Hi!
I bought this screen http://www.ebay.com/itm/111411981808
I searched on the wiki (http://sudomod.com/wiki/index.php?title=GBZ_Screen) and I can find it, any advice on how I should convert from 12V to 5V?
- ellipticaldoor
- Posts: 8
- Joined: Fri Sep 30, 2016 12:14 pm
Re: Collecting information on alternative displays - please contribute
Hey people!
I found a 3.5 inch TFT LCD with mini hdmi input:
https://www.alibaba.com/product-detail/ ... 38961.html
I think this is going to be easier to setup.
I found a 3.5 inch TFT LCD with mini hdmi input:
https://www.alibaba.com/product-detail/ ... 38961.html
I think this is going to be easier to setup.
- Mtuckey
- Posts: 20
- Joined: Tue Nov 15, 2016 4:32 am
- Location: Perth, Australia
- Has thanked: 6 times
- Been thanked: 6 times
Re: Collecting information on alternative displays - please contribute
I'm a bit skeptical about this one, there's no hdmi port on the board.ellipticaldoor wrote:Hey people!
I found a 3.5 inch TFT LCD with mini hdmi input:
https://www.alibaba.com/product-detail/ ... 38961.html
I think this is going to be easier to setup.
-
- Posts: 48
- Joined: Fri Sep 30, 2016 12:17 am
- Has thanked: 11 times
- Been thanked: 6 times
Re: Collecting information on alternative displays - please contribute
And on the description its saying its CVBS but the title says HDMI I think there is some thing strange about this oneellipticaldoor wrote:Hey people!
I found a 3.5 inch TFT LCD with mini hdmi input:
https://www.alibaba.com/product-detail/ ... 38961.html
I think this is going to be easier to setup.
-
- Posts: 59
- Joined: Sat Nov 12, 2016 12:26 pm
- Has thanked: 52 times
- Been thanked: 9 times
Re: Collecting information on alternative displays - please contribute
I have the BW variant 7 I believe - runs fine out of the box without doing the 5V mod - can I expect problems doing this or should I just count myself lucky and keep on going? (I should add the adjustments buttons currently don't work...)
[Edit] - Applied the 5V mod (http://sudomod.com/wiki/index.php?title ... AG0115.jpg) but no change, screen looks the same (i.e. still works) but the control buttons do squat.
[Edit] - Applied the 5V mod (http://sudomod.com/wiki/index.php?title ... AG0115.jpg) but no change, screen looks the same (i.e. still works) but the control buttons do squat.
