WII U RASPBERRY PI 3 FINISHED

[VeteranGamer]

Looking back through the comments he mentions he keeps the button PCB of the wiiu gamepad, maybe that is the brown material? Although the white part looks like it contains the flex for the button pads...

Thanks...
i appreciate the response.....


but thats not a PCB or a standard part that comes with/apart of the Wii U Gamepad....


a bog standard Wii U gamepad looks like this when opened





NB: there only two real PCB that are apart of the gamepad... the motherboard and the home button board
(and the few other little boards)
the controls are made up of analog sticks and conductive film ribbons....


thanks.....
this one might be for BanjoKazooie





.

[Ely]

you've got a board that supports most of the components....





im assuming that's something you made yourself.....


if you wouldn't mind giving the heads up on what you made it out of....
(i would like to do something similar)


thanks....

Hey Veteran, you should check the last 5 replies of page 24.
Marty is giving a link to the copper / fiber glass material used and Banjo gives his template

[VeteranGamer]

you've got a board that supports most of the components....





im assuming that's something you made yourself.....


if you wouldn't mind giving the heads up on what you made it out of....
(i would like to do something similar)


thanks....

Hey Veteran, you should check the last 5 replies of page 24.
Marty is giving a link to the copper / fiber glass material used and Banjo gives his template

That’s perfect, thanks....

I had a feeling I might of missed....
(There’s so much in the post to digest)


Thanks..,.



.

[BlueWeaselBreath]

Hi, all, does anybody know how I might make a battery monitor solution (i.e., what hardware and software I should use) if I’m making a 2S 7.4V version of this, as outlined earlier in this thread? It uses a stepdown converter, not a Powerboost, so I can’t use the Lipopi circuit and script that Banjokazooie used. Thanks for any help anyone can provide! I just want to be able to see how much battery is left, either through low battery LED indicator or onscreen status bar, and it’d be great to have auto shutdown when battery is low too.

[banjokazooie]

Hi, all, does anybody know how I might make a battery monitor solution (i.e., what hardware and software I should use) if I’m making a 2S 7.4V version of this, as outlined earlier in this thread? It uses a stepdown converter, not a Powerboost, so I can’t use the Lipopi circuit and script that Banjokazooie used. Thanks for any help anyone can provide! I just want to be able to see how much battery is left, either through low battery LED indicator or onscreen status bar, and it’d be great to have auto shutdown when battery is low too.

Simple voltage reading by teensy analog pin with a voltage divider will light up a LED and or trigger GPIO pin with python script to auto power down

if (analogRead(A0) < trigger value)
{
digitalWrite(led pin, HIGH);
}
else
{
digitalWrite(led pin, LOW);
}

[jung stranger]










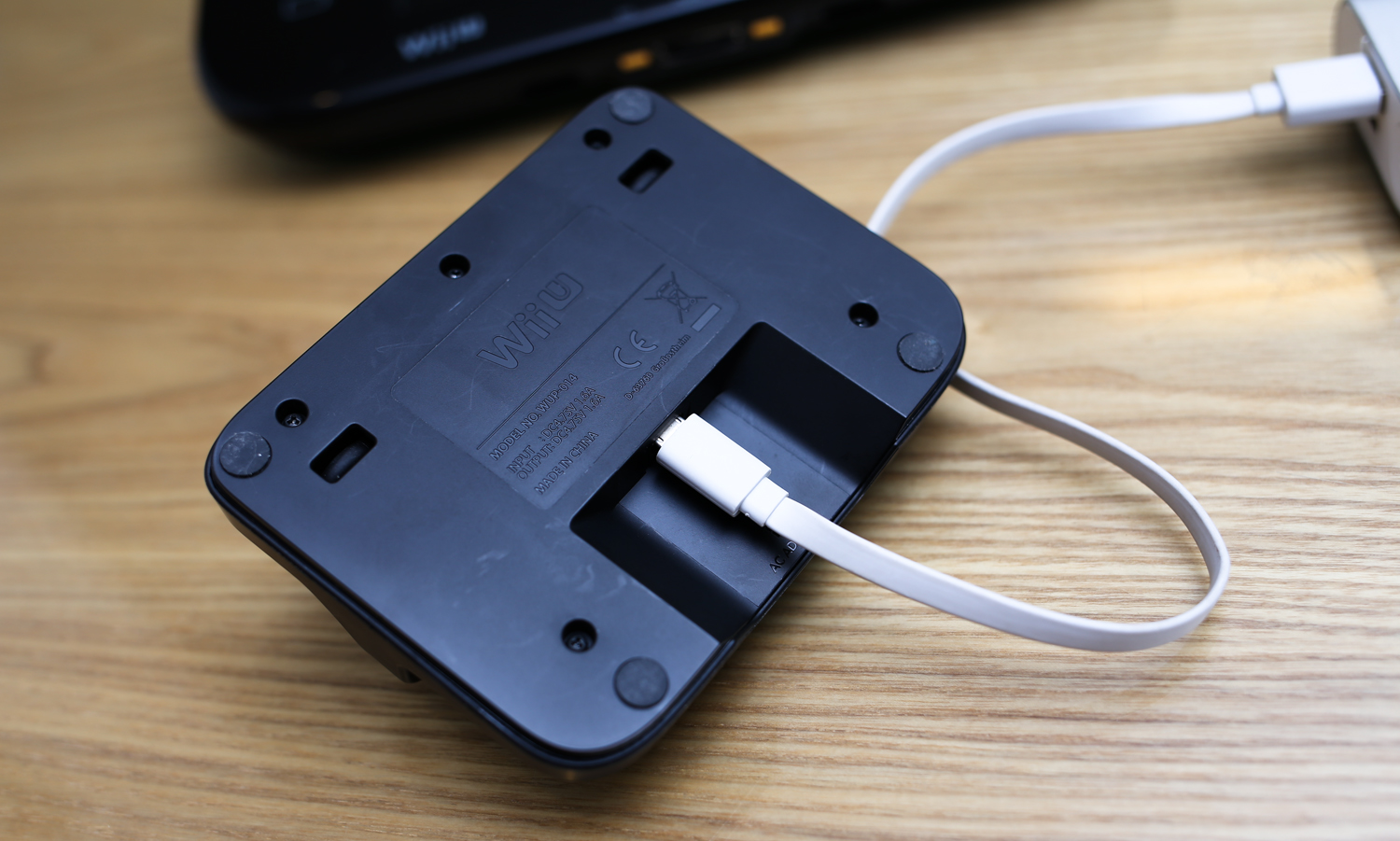

Hi
I am a Korean who likes Korean retro games.
I was inspired by your production.
The internal structure is different, but it has been helped.
Thank. Brother

[BenjaminLSR]

Awesome job you've done here.

[px400]

Hi
I am a Korean who likes Korean retro games.
I was inspired by your production.
The internal structure is different, but it has been helped.
Thank. Brother

Please post pictures from the internal part if possible!
Very clean project, well done!!

[VeteranGamer]

can someone please advise if this is a viable/workable option....







i intend to use a 3.7v LiPo battery

with these
(Helder Retro PSU)
https://heldergametech.com/shop/gameboy-zero/retropsu/

(Pushbutton Power Switch)
https://www.pololu.com/product/2812

(Wii U button board)
https://oshpark.com/shared_projects/PxxdBxo7



pre-warning, i'm a complete noob when it comes to these sort of things

also how would i be able to use the LED funtions...
Helder board does have LED out points, not sure if they would be suitable or usable...


any feedback will be greatly appreciated....


Thanks



.

[VeteranGamer]

i guess theres no one that really can help....

no bother, i'll try to figure it out myself....


.
