3.5 DPI Screens

3.5" DPI Screens

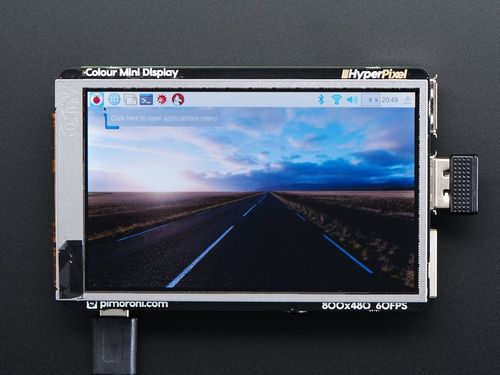

	Website	adafruit.com (US) pimoroni.com (UK/EU)
	Seller	Adafruit or Pimoroni
	Nominal Price	$45 USD £40
	Input	DPI
	Resolution	800 x 480 px
	Screen Dimensions	86 x 56 x 10 mm (with headers)
	Active Area Dimensions	unknown
	Button Board	n/a, PWM controlled over GPIO
	5v Ready	Yes
	Touch	Yes, Capacitive, 2-point Multi-TOuch
	Used in Projects	unknown
	Notes	Header appears to be surface mounted and thus not difficult to remove if desired, however you will need to wire out nearly every GPIO. Included header seems to be very low profile. Screen Width appears to be exactly the outer DMG dimensions, meaning this likely won't fit.

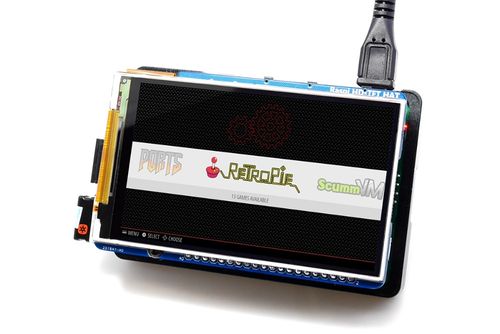

	Website	aliexpress.co
	Seller	U-GEEK
	Nominal Price	$40 USD
	Input	DPI
	Resolution	800 x 480 px
	Screen Dimensions	89 x 56 x 21 mm (with headers)
	Active Area Dimensions	unknown
	Button Board	n/a,
	5v Ready	Yes
	Touch	No
	Used in Projects	unknown
	Notes	Phat header. Is physically larger than the DMG case. Has a soft I2C pinout on the underside, along with 2 GPIO available buttons, a button controlled back-light, and IR transceiver.
