35 spi screen

3.5" SPI Screens for GBZ Projects

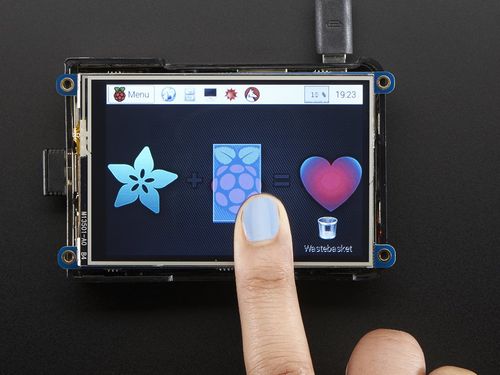

	Website	adafruit.com
	Seller	Adafruit
	Nominal Price	$35 USD
	Input	SPI
	Resolution	480 x 320 px
	Screen Dimensions	85 x 56 x 6 mm (without headers)
	Active Area Dimensions	unknown
	Button Board	n/a, PWM controlled over GPIO
	5v Ready	Yes
	Touch	Yes
	Used in Projects	unknown
	Notes	Has two headers on the bottom for sitting on the pi as a "hat", but they are surface mounted rather than through-hole and should not be difficult to remove. Like most SPI displays it only requires 7 gpio's (+ 5v & GND).

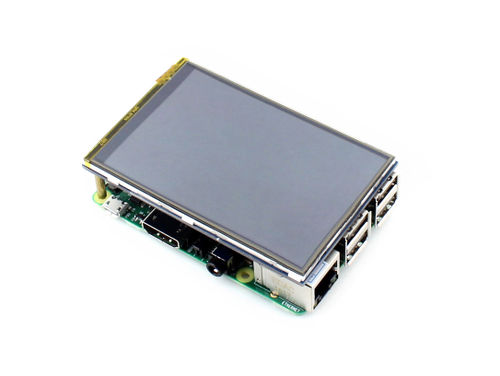

	Website	waveshare.com waveshare.com (IPS Model)
	Seller	WaveShare
	Nominal Price	$24 USD $26 USB (IPS)
	Input	SPI
	Resolution	480 x 320 px
	Screen Dimensions	85 x 56 mm (without headers)
	Active Area Dimensions	unknown
	Button Board	n/a
	5v Ready	Yes
	Touch	Yes, Resistive
	Used in Projects	unknown
	Notes	Old style header is through-hole making it more difficult to work with for GBZ projects. Has an IPS variant for a couple bucks more. In theory has better colors and viewing angles.
