BuyDisplay.com 3.5" Composite Display
From sudomod
Notes

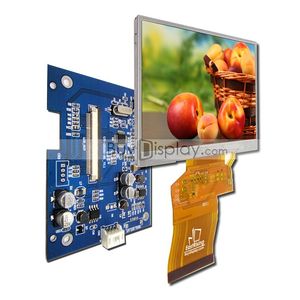

This is another composite display and driver that gets shipped without a case.
The driver board comes with a 4-pin connector already attached. Be sure to check the polarity of the red and black power cables, they might be swapped around. Removing the white plastic connector will reveal the correctly labelled pins on the board.
To be able to use it with 5V, you'll have to remove the IC labelled U4 and short the bare pins L9. You can then connect the display with the existing connections, there's no need to solder any jumper wires to other locations on the board.
Specifications
|
Website |
[1] |
|---|---|
|
Seller |
BuyDisplay (by EastRising) |
|
Brand |
BuyDisplay |
|
Input |
Composite (AV/CVBS) |
|
Resolution |
320 x 240 px |
|
Screen Dimensions |
76.9 x 63.9 mm |
|
Active Area Dimensions |
70.08 x 52.56 mm |
|
Button Board |
not available |
|
5 volt |
with modification, see notes |
|
Projects |
yousai's SuperGameGirl |
